NL200/201 Network Link Interface
3.1 Physical Setup
Using the supplied serial cable, connect the NL201’s CS I/O port to the
datalogger’s CS I/O port. Alternatively, power the NL200 or NL201 through
the barrel-connector jack located on the edge of the device. Connect the
NL200/201 to your network using an Ethernet cable, attaching one end of the
cable to the NL200/201’s Ethernet port and the other end to your network.
Ensure that the device is powered up by inspecting the Power LED.

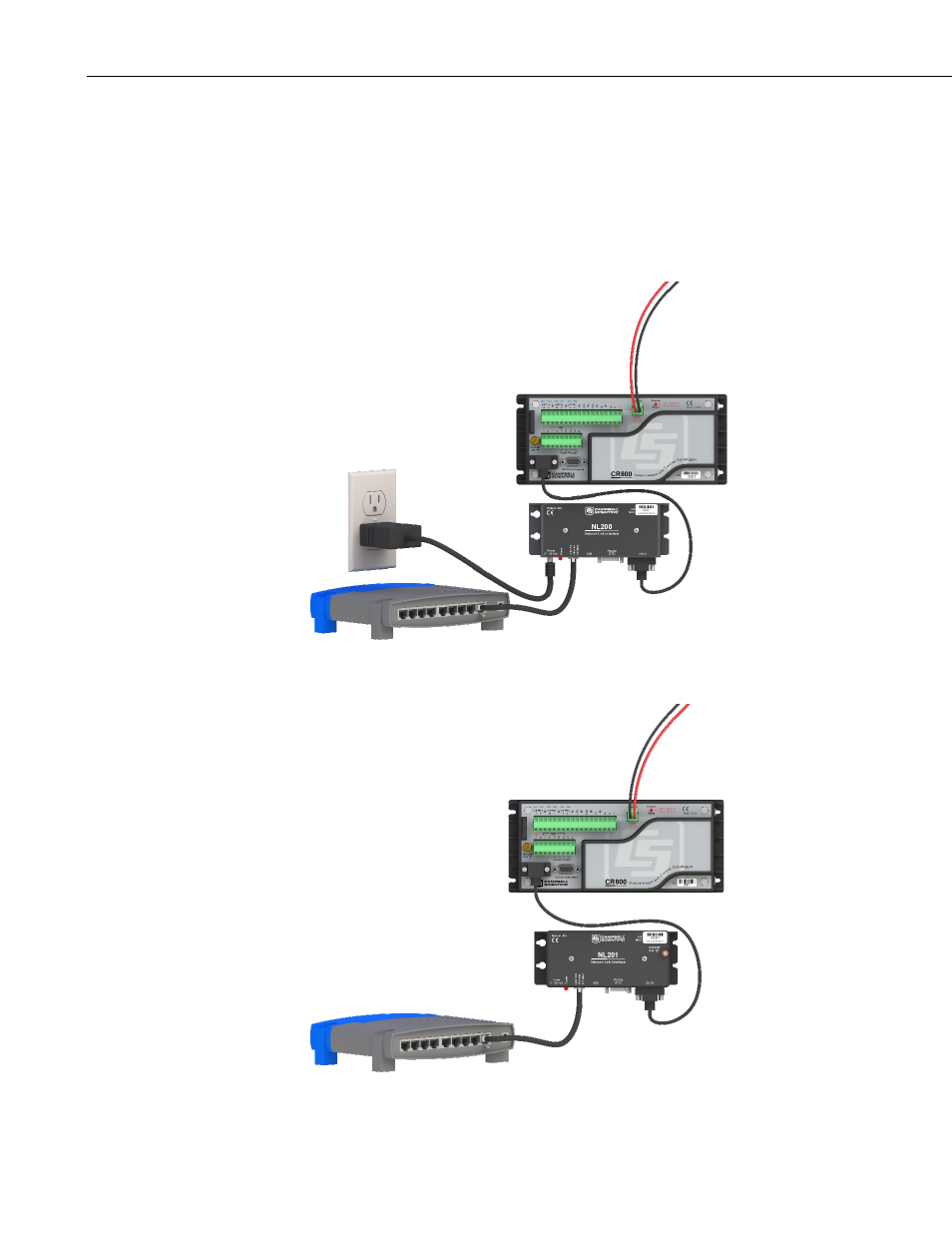

FIGURE 3-1. NL200 with CR800 (external power)
FIGURE 3-2. NL201 with CR800 (powered by datalogger)
