Campbell Scientific ENC10/12, ENC12/14, ENC14/16, ENC16/18 Enclosures User Manual
Page 42
Appendix C. 28960 Stack Mounting Kit
CR1000
AM16/32B
Leg
Top Grid
Leg
Enclosure
Back
Plate

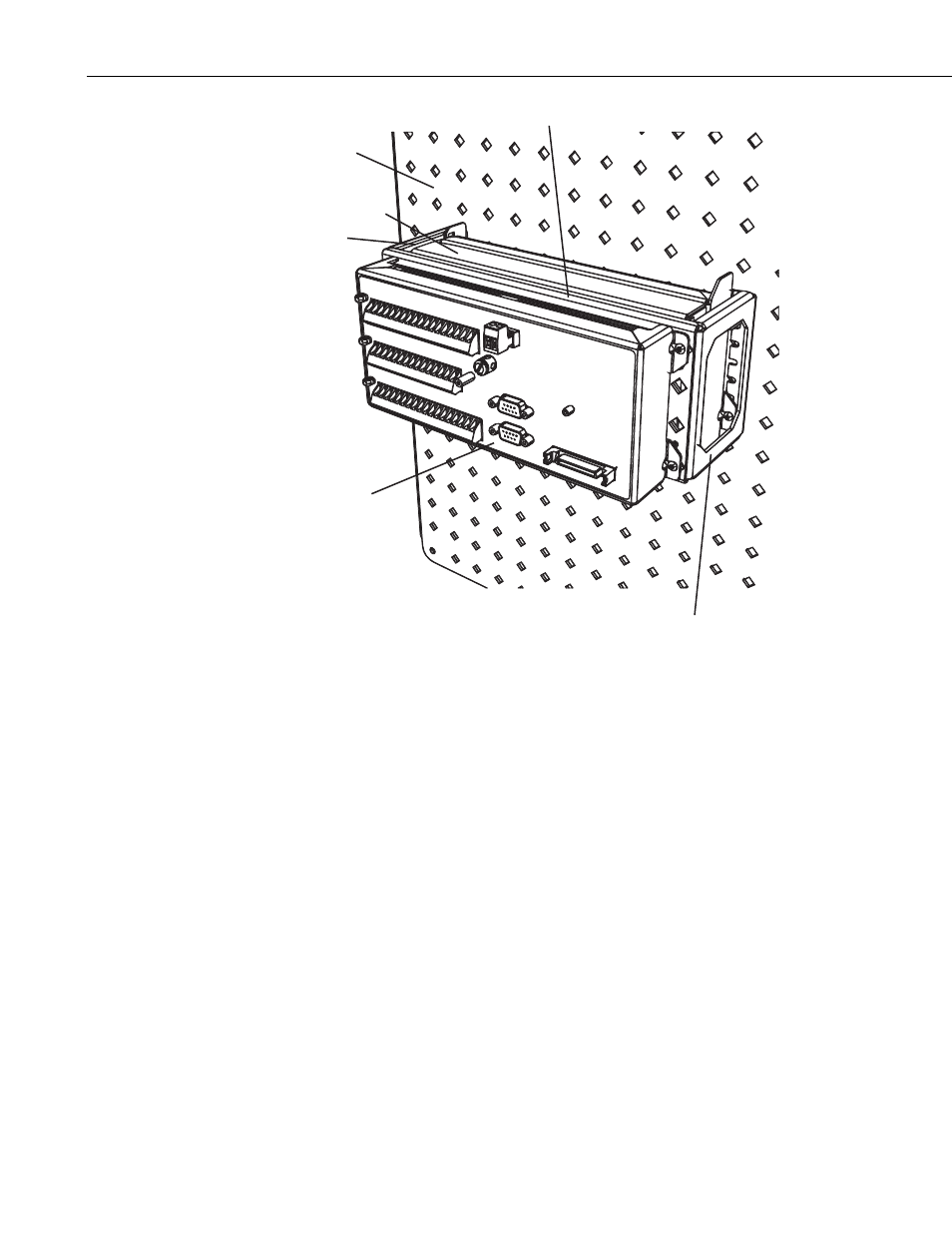

FIGURE C-2. Assembled view of CR1000 and AM16/32B mounted on
a 28960 Stack Mounting Kit
The Stack Mounting Kit consists of a Top Grid, two Legs, eight Grommets,
and eight Screws (FIGURE C-3). Besides the standard one-inch-on-center
holes, the Top Grid also contains sixteen smaller, round holes. These holes are
used by wire-ties to secure any loose wiring.
If the Stack Mounting Kit is only being used to raise a single component, the
Top Grid is optional. The component can be mounted directly to the two Legs
using the Grommets and Screws. This allows the raised area to be tailored to
the component's size. FIGURE C-4 shows a CR1000 mounted to the Legs
without using the Top Grid.
C-2
