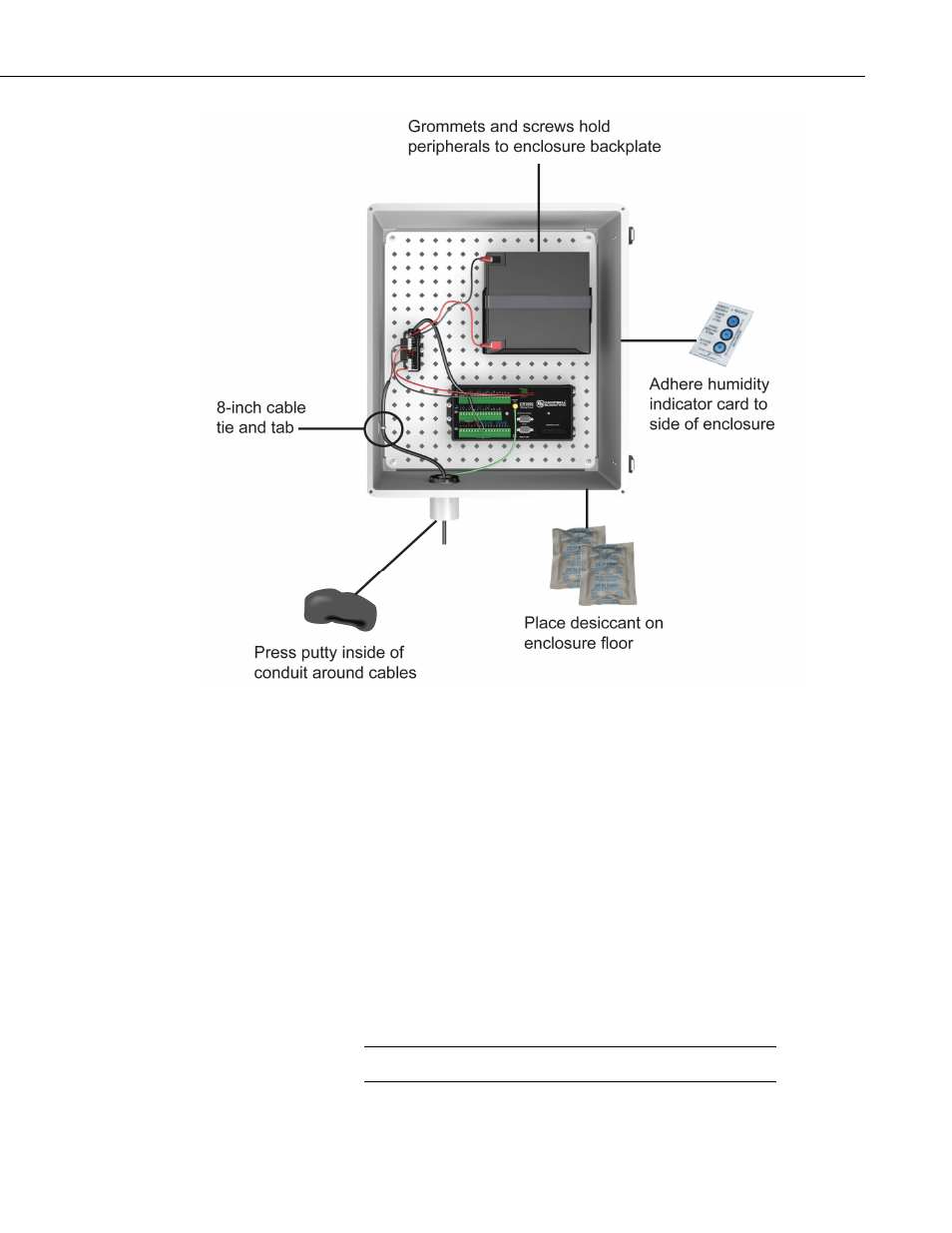

FIGURE 3-3. An ENC12/14 with one 1.5" conduit houses a CR1000
datalogger and BP24 power supply. Door not shown.
3.2 Enclosures with Individual Compression Fittings
1. If installing the optional Door Switch Indicator, follow the procedure
described in Appendix A.
2. Use the #6 screws and plastic grommets (FIGURE 3-1A) to mount
additional peripherals to the enclosure backplate (FIGURE 3-1B).
Dataloggers, power supplies, and most peripherals are usually attached to
the backplate prior to shipment from the factory or are supplied with
additional screws and grommets.
To insert the grommet, push the points of the flanges into the center of any
square hole. To remove a grommet without damage, remove the enclosure
backplate and use pliers to pinch the grommet flanges together.
Remember to allow space for cables and cable connectors. NOTE
