12. attaching, Pole mount bracket, 13. inserting – Campbell Scientific ENC10/12, ENC12/14, ENC14/16, ENC16/18 Enclosures User Manual
Page 24: The metal band
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
Enclosure
Bracket
LockNut
Washer
Bolt

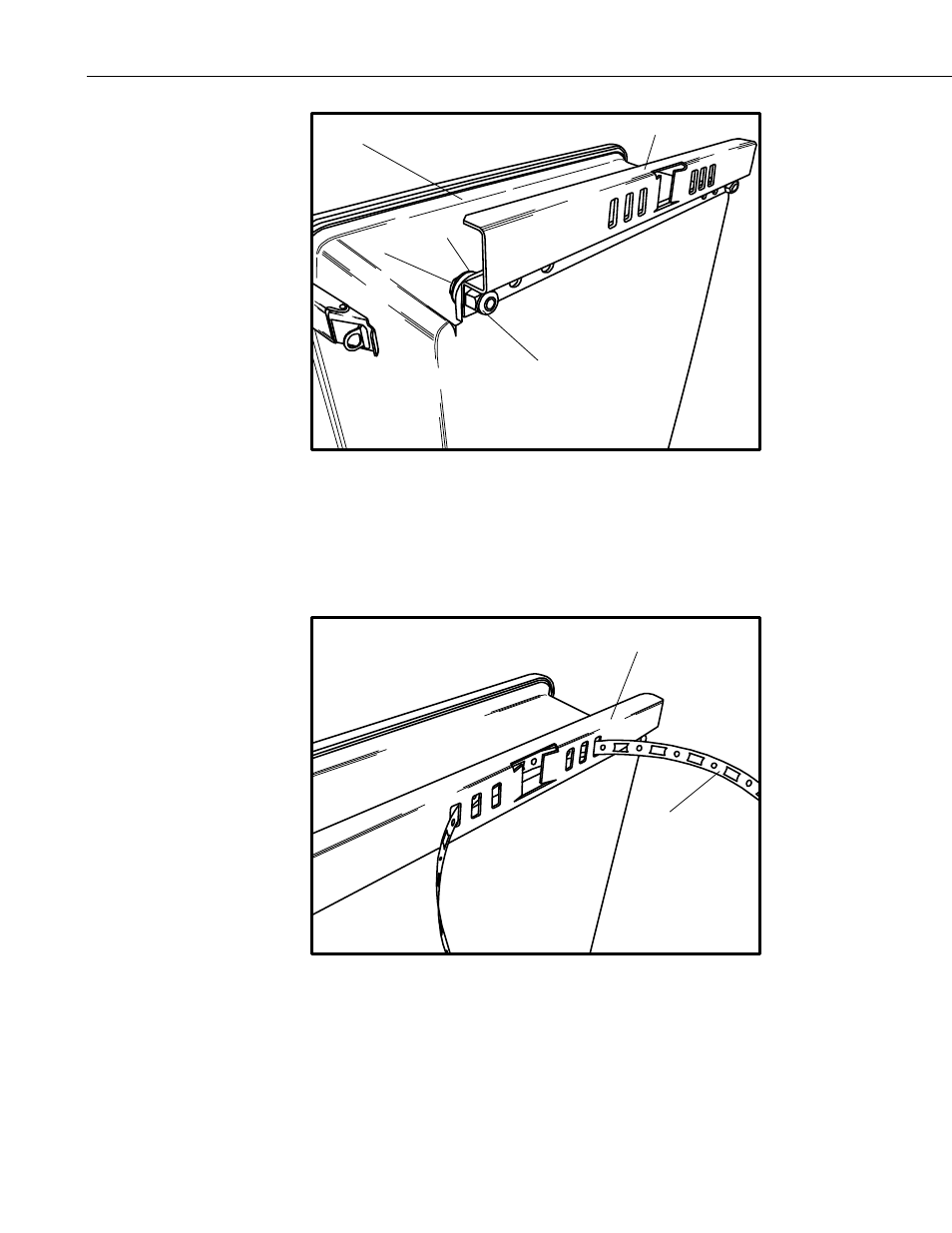

FIGURE 4-12. Attaching the pole mount bracket
2. Feed a metal band through the openings in each bracket as shown in
FIGURE 4-13. Use the closest set of holes for smaller poles and the
farthest set of holes for larger poles.
Mounting Bracket
Band
FIGURE 4-13. Inserting the metal band
3. Position the enclosure on the north side of the tower.
4. Place the enclosure at the desired height. Please note that the
recommended lead lengths for our sensors assume the bottom of the
enclosure is mounted 3 ft. from the ground.
18
