Campbell Scientific ENC10/12, ENC12/14, ENC14/16, ENC16/18 Enclosures User Manual
Page 32
Appendix A. Door Switch
7. Place the assembled sensor bracket over the two screws, making sure the
sensor is aligned with the inside edge of the case. Secure the bracket in
place with two lock-nuts.

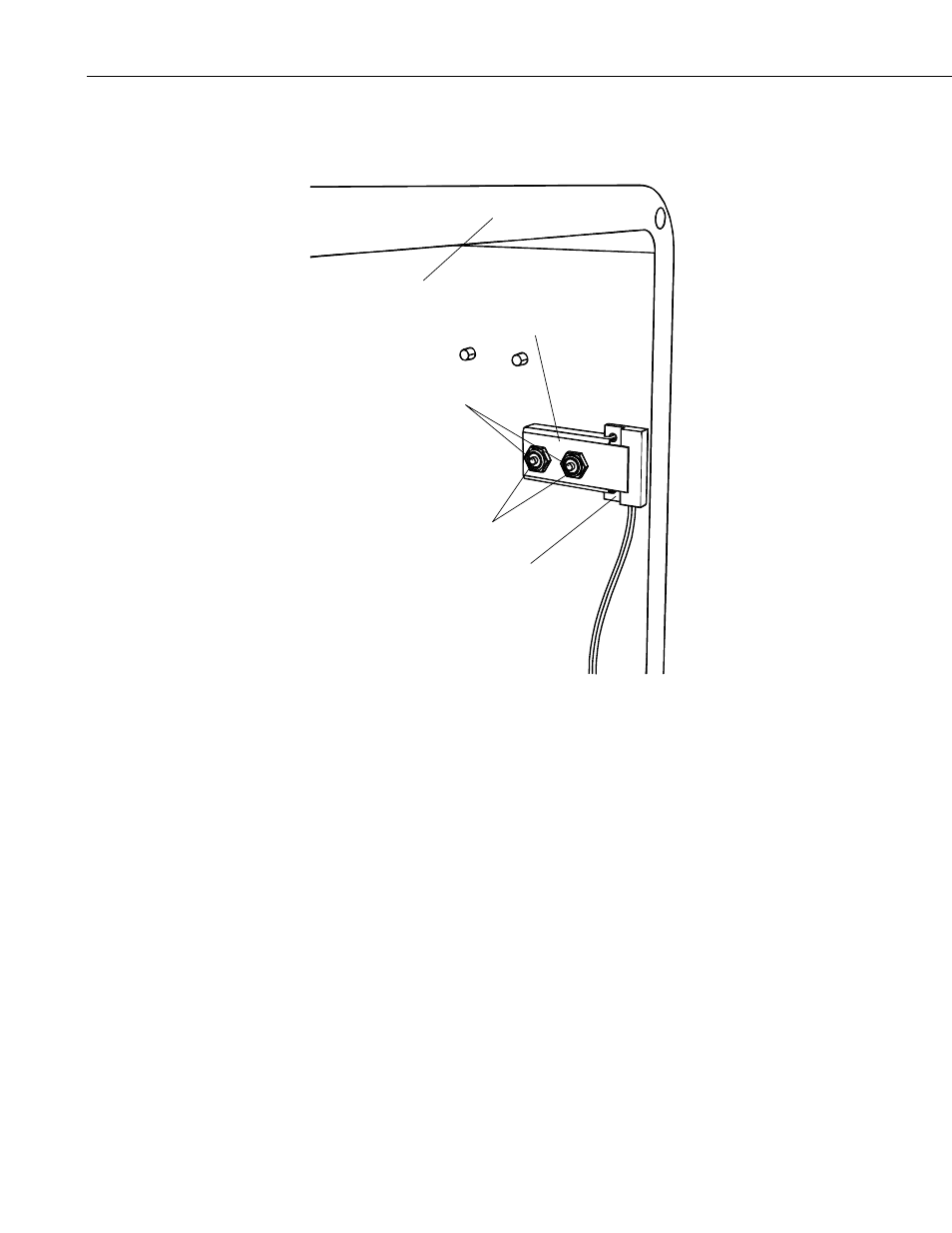

Mounting Bracket
Enclosure
Sensor
Screw
Lock Nut
8. From the outside of the enclosure door, insert two screws through the new
holes in the enclosure door.
9. Place the assembled sensor magnet bracket over the two screws, making
sure the sensor magnet is aligned with the inside edge of the door. Secure
the bracket in place with two lock-nuts.
A-4
