ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18

4.4.1 Mounting More Than One Enclosure on a Tripod Leg (CM110,

CM115, CM120)

It is possible to mount two enclosures back-to-back on the CM110, CM115,
and CM120 tripods. If the enclosures are different sizes, mount the smaller
enclosure first, followed by the larger enclosure. If the enclosures are the same
size, use two 5/16-18 x 3.50" bolts in place of u-bolts to anchor the two
enclosures together.

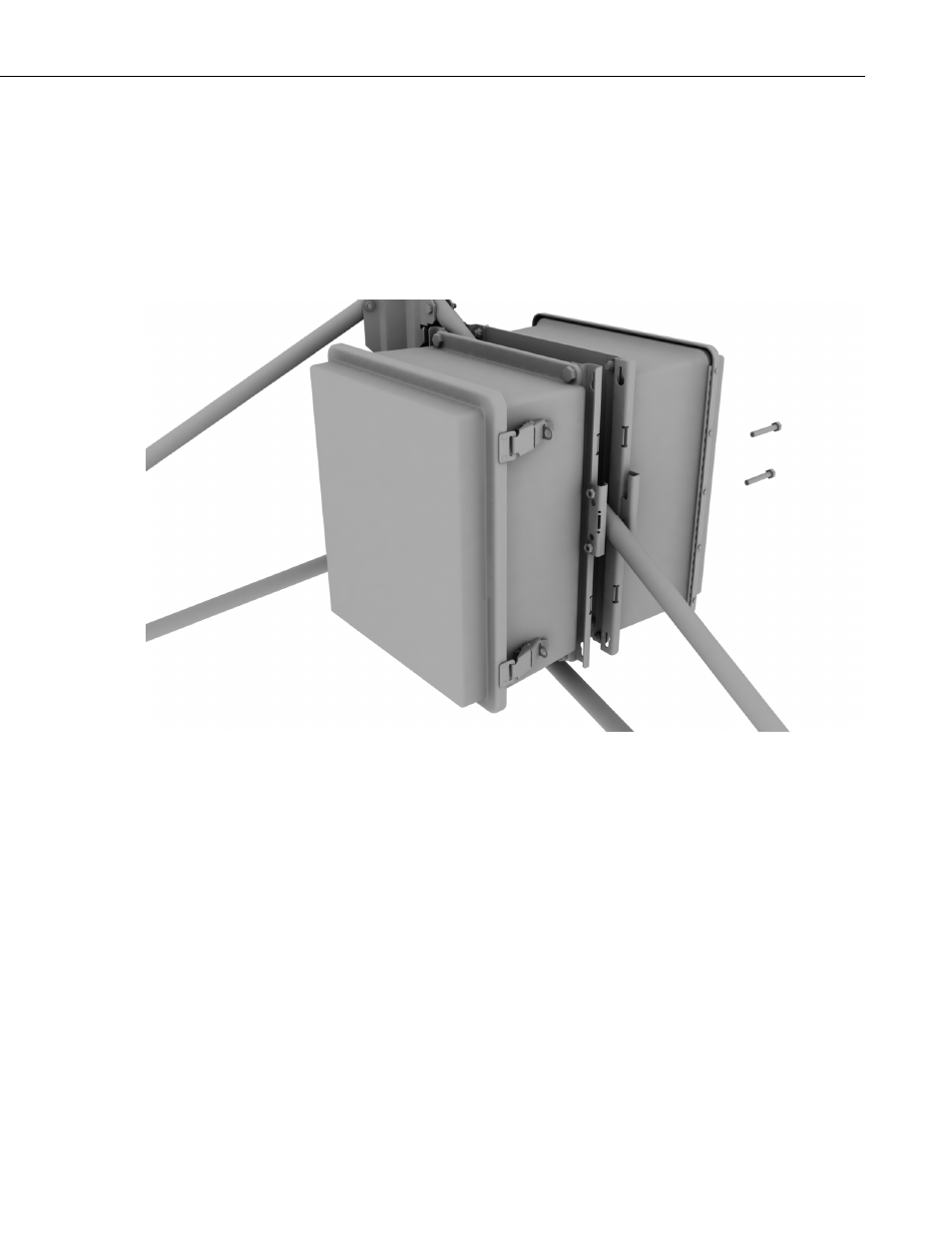

FIGURE 4-11. Mounting two enclosures on a single tripod leg

4.5 Pole Mount

The “-PM” mount option is intended for mounting our enclosures to a vertical
pole. An enclosure ordered with this option will be shipped with the brackets,
metal bands, and mounting hardware needed to secure the enclosure. The metal
bands are routed through the brackets, and then around a vertical pole. They are
then anchored in place using screw clamps.

Attach the enclosure to a vertical tube as follows:

1. Position a bracket at the top of the enclosure as shown in FIGURE 4-12.

Secure it with a bolt, washer, and locknut at each end. Attach the lower
bracket in the same manner, rotating the bracket so it extends below the
enclosure.

17
