B-4. 15909, Jumper – Campbell Scientific ENC10/12, ENC12/14, ENC14/16, ENC16/18 Enclosures User Manual
Page 39
Appendix B. 25458/28532 DIN-Rail Terminal Kits

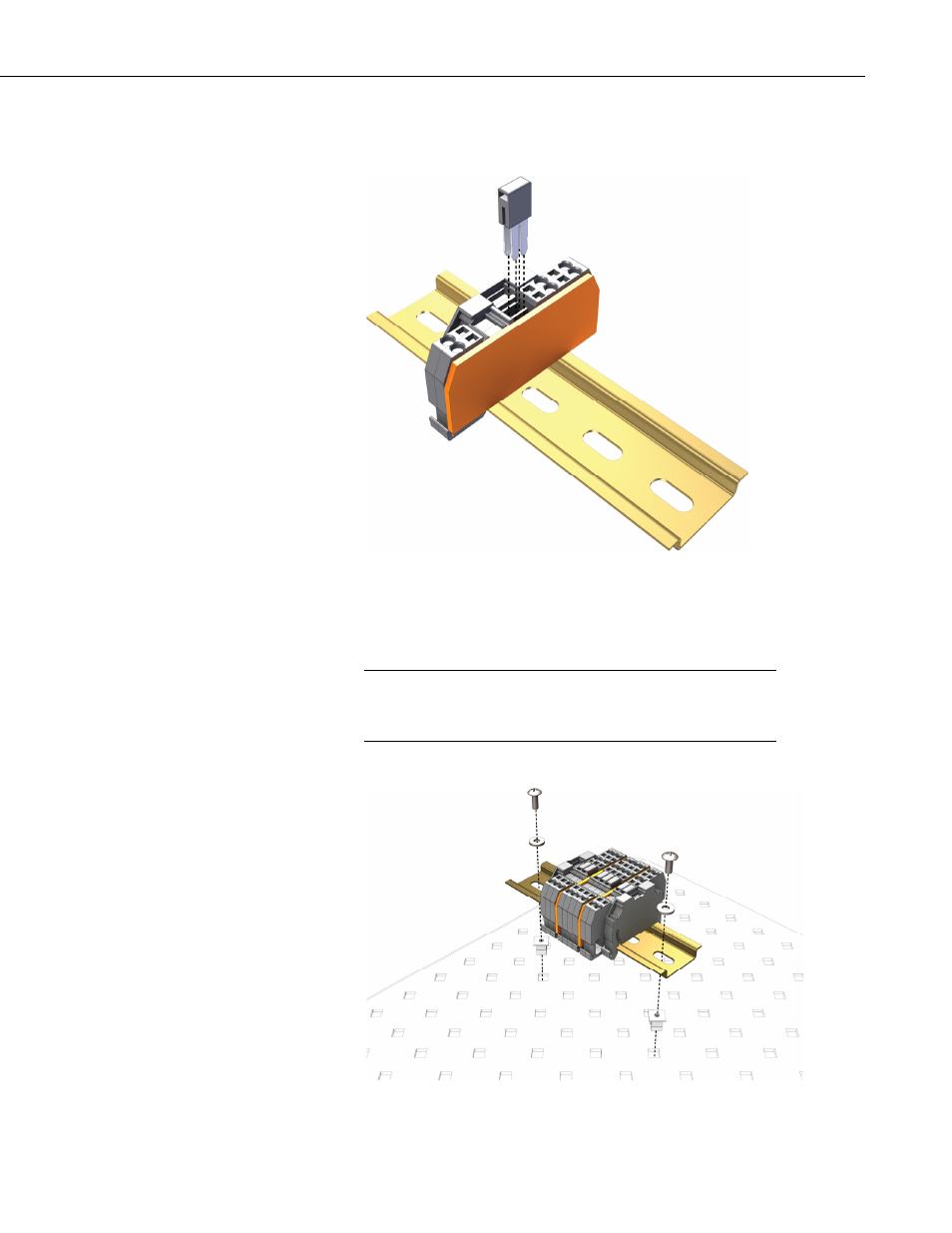

2. Insert the 15909 Jumpers in the terminal strips as shown in FIGURE B-4.
FIGURE B-4. 15909 Jumper installation
3. Mount the DIN-Rail bracket onto the enclosure backplate using two 505
screws and two 6044 grommets (see FIGURE B-5).
The 28532 includes three screws and three grommets. Use the
third screw and grommet to secure the 9-pin DIN-Rail at its
center.
NOTE
FIGURE B-5. DIN-Rail bracket mounted onto an enclosure backplate
B-3
