Option, 6. an enclosure attached to two tower legs, Figure 4-5, a – Campbell Scientific ENC10/12, ENC12/14, ENC14/16, ENC16/18 Enclosures User Manual
Page 19: Figure 4-6)
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
The default configuration is for attaching to a UT10 tower (i.e., D = 10.25").
To attach to a UT20 or UT30 tower, move the flange sections of the bracket so
that D = 17".
Flange Section
Flange Section

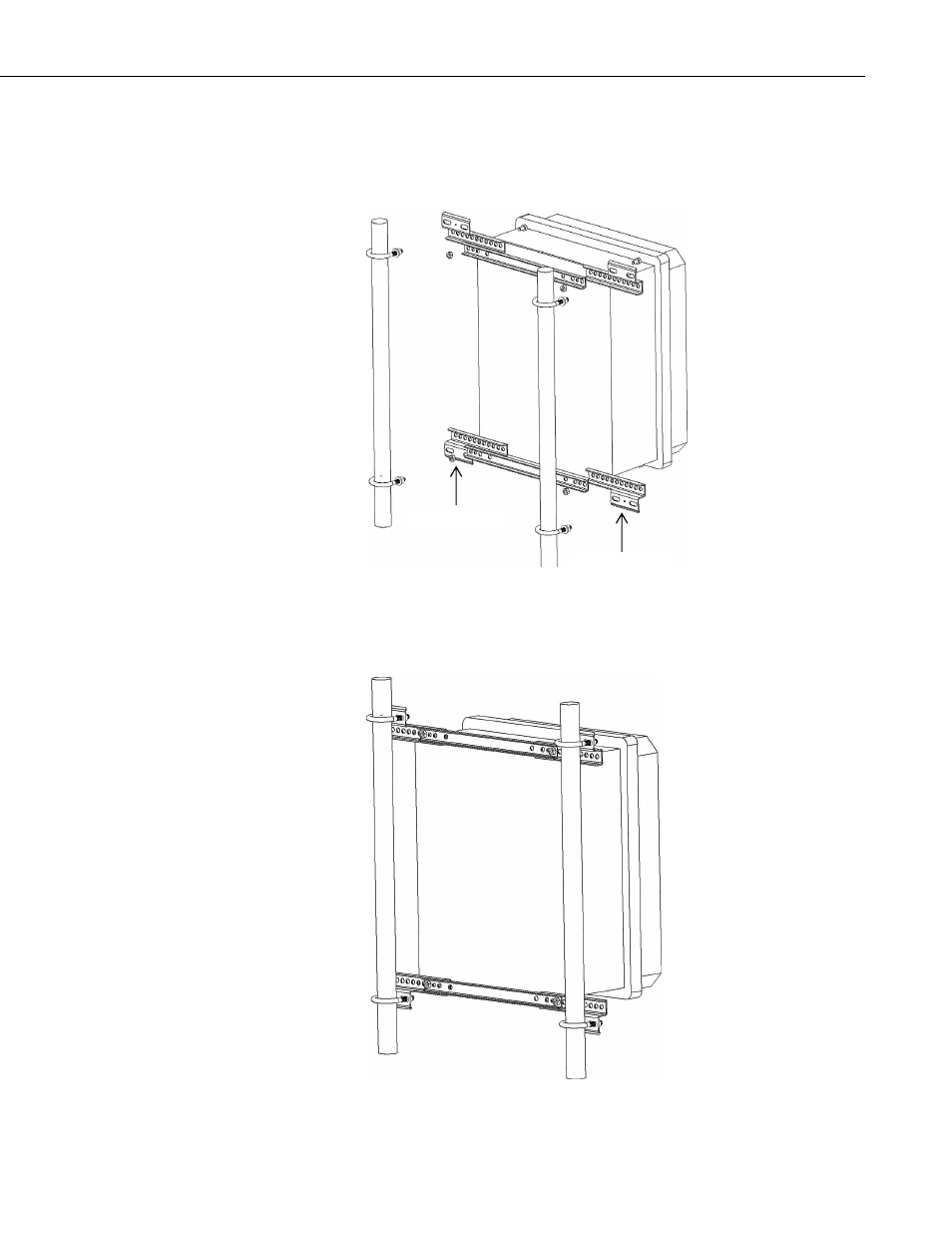

FIGURE 4-5. This exploded view shows the components of
a “-TM” bracket option
FIGURE 4-6. An enclosure attached to two tower legs
13
