14. securing the enclosure to a pole – Campbell Scientific ENC10/12, ENC12/14, ENC14/16, ENC16/18 Enclosures User Manual
Page 25
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
5. Insert the tab on the end of the Screw Threads (FIGURE 4-14) into the
hole at one end of the upper strap.
Enclosure
Mounting Pole
Screw Clamp
Band
Screw Threads

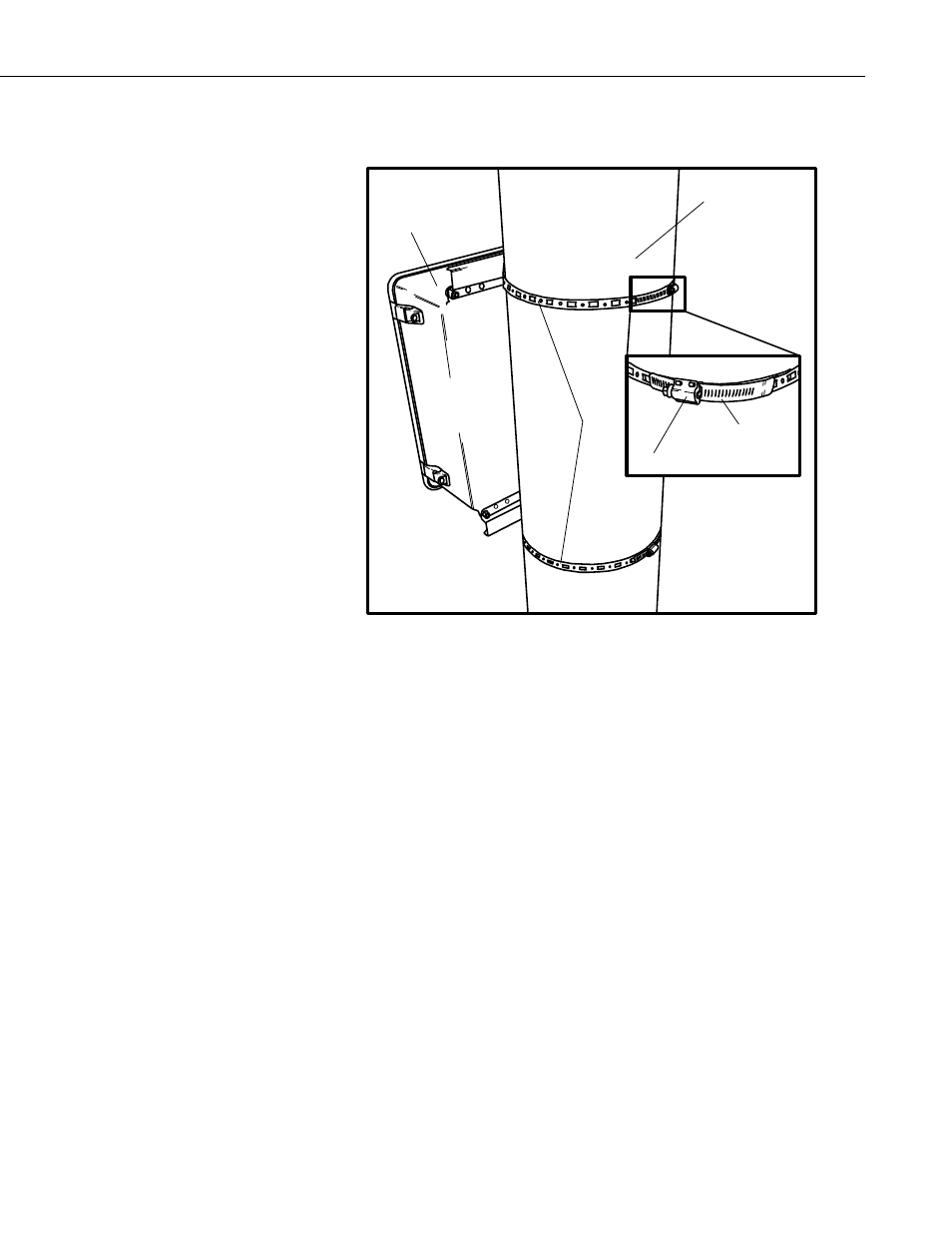

FIGURE 4-14. Securing the enclosure to a pole
6. Pull the strap tight around the pole to determine which hole to insert the
Screw Clamp at the other end of the strap. Insert the clamp into this hole.
7. Use metal shears to remove any excess strap, leaving a small amount for
adjustments.
8. Insert the Screw Threads into the Screw Clamp and tighten, using a
flathead screwdriver or nut driver.
9. Repeat steps 4–7 for the lower strap.
10. Ensure the enclosure is properly grounded through the use of a ground rod
or similar device.
19
