Mounting equipment inside the enclosure, 1 enclosures with one or two 1.5" conduits, Enclosures with one or two 1.5" conduits – Campbell Scientific ENC10/12, ENC12/14, ENC14/16, ENC16/18 Enclosures User Manual
Page 10: 1. securing components to the enclosure backplate

ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
3. Mounting Equipment Inside the Enclosure
3.1 Enclosures with One or Two 1.5" Conduits
1. If installing the optional Door Switch Indicator, follow the procedure
described in Appendix A.
2. If installing the 25458 or 28532 DIN-Rail Terminal Kit, follow the
procedure described in Appendix B. The 25458 kit facilitates wiring when
many wires need to be connected to one terminal.
3. If installing the 28960 Stack Mounting Kit, follow the procedure described
in Appendix C. The 28906 kit allows components to be raised 3 in above
the back plate, allowing one component to be stacked above another to
save space. Raising a component from the back plate is also done to
improve access to a component that may be partially blocked by other,
taller equipment mounted in the enclosure.

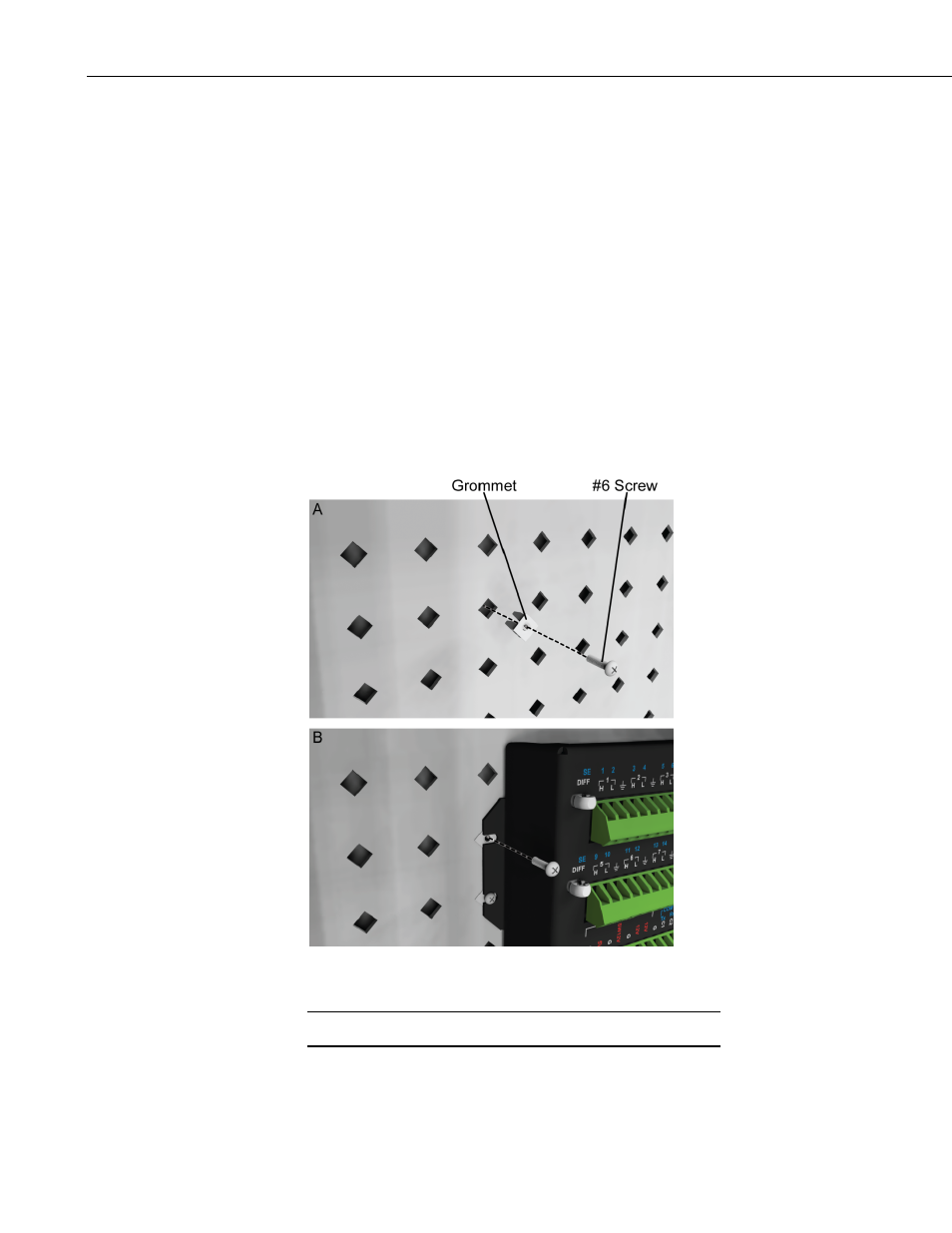

FIGURE 3-1. Securing components to the enclosure backplate
Remember to allow space for cables and cable connectors.
