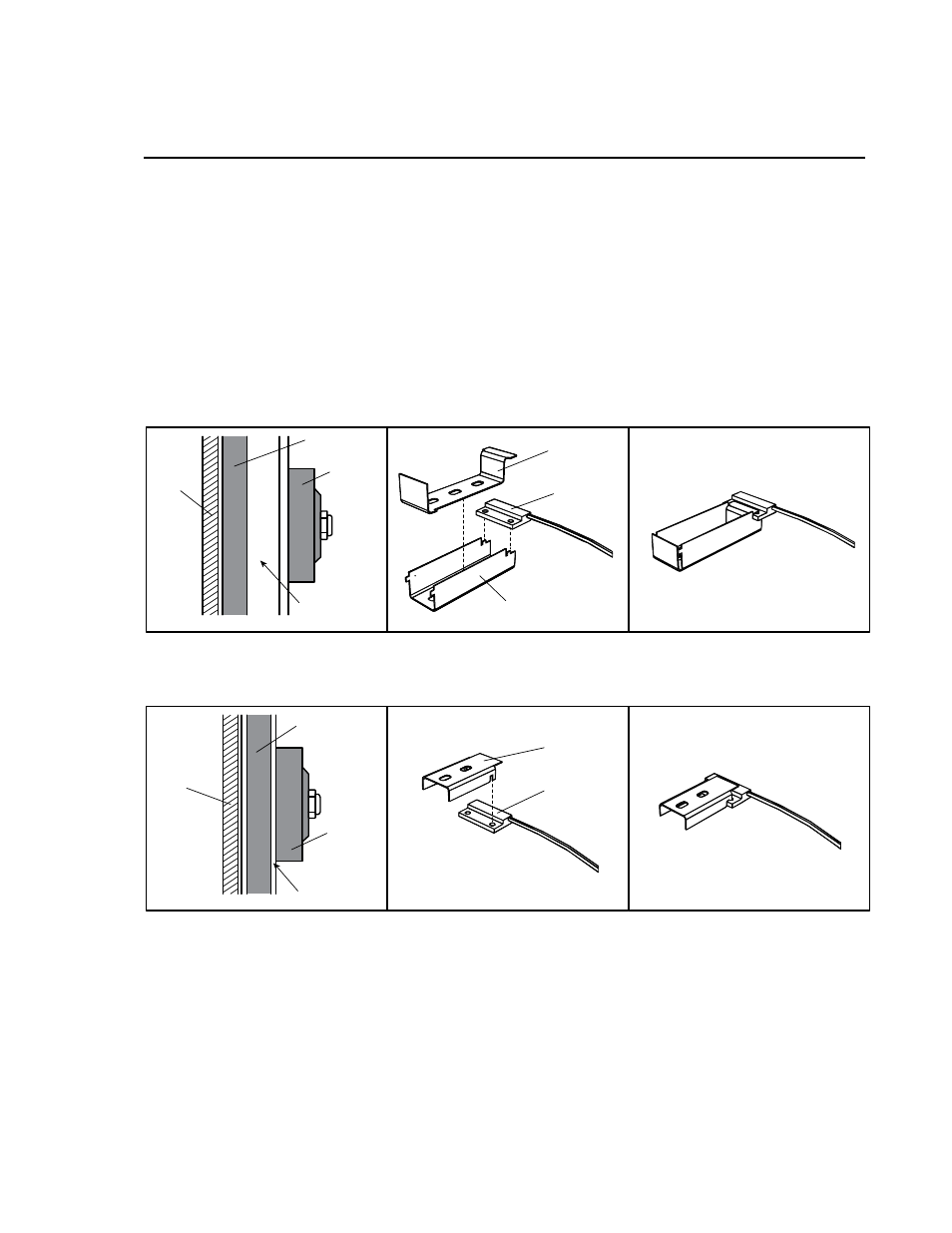

Appendix A. Door Switch
A.1 Installation Procedure
1. The Door Open Indicator Kit contains several small brackets that are used
to mount the sensor and magnet to the enclosure case and door. Which
brackets are used depends on the style of enclosure. Use the following
guide to determine the proper brackets:
a. The Door Open Indicator is mounted at the upper right corner of
the enclosure. The enclosure DOOR determines which bracket is
used to mount the sensor inside the enclosure CASE. If there is
an offset near the edge of the enclosure door (see below), the
sensor will be mounted with the brackets shown.
Door
Edge
Weather
Stripping
Sensor
Magnet
Offset
Large Bracket
Sensor
Large Bracket Insert
b. If there is not an offset near the edge of the enclosure door, use
the bracket as shown below.
Door Edge
Weather
Stripping
Sensor
Magnet
No Offset
Small Bracket
Sensor
A-1
