32” Nylon Grit Head Assembly
Item Part Number Description Qty Item Part Number Description Qty
1 105-100-019 Assembly Vacuum Nozzle-32” 1
2 000-014-081 Box, Bottom Outer Head Carton 1
3 000-014-080 Box, Top Outer Head Carton 1
4 000-015-311 Bracket 32” Tread Brush Mount-Coated 1
5 000-015-317 Bracket, 30” Polish Pad Mounting Extrusion - Coated 1
6 101-100-029 Brush Nylo-Grit-31.50” 1
7 000-016-066 Brush Vacuuum-32” 1
8 000-033-104 Clamp, Polish Pad Release - Modified 2
9 000-074-022 Gauge,Spirit Level-TreadMaster 1
10 000-061-104 Handle, Pad Holder Lift Arm - Coated 1
11 000-014-082 Insert Foam Head Support End 1
12 000-061-102 Knob,4/Flute Black-3/8”16 2
13 000-094-063 Nut, #6-32UNC Nylock 5
14 000-094-034 Nut, #10-24UNC Nylock 4
15 000-014-083 Pad, Foam Brush Stabilizer 1
16 000-016-088 Polishing Pad-Black - 32” 1
17 000-143-173 Screw, 1/4-20 Spade Head Thumb 1
18 000-143-161 Screw,5/16-18 X 1” PNHDS Phillips 2
19 000-143-112 Screw,10-24 X 1/2” Self Tapping PH Phillips 5
20 000-143-128 Screw,10-24 X 5/8” Btn Hd Cap 8
21 000-143-047 Screw, #6-32 UNC X .875” Lg. PH Phillips 5
22 000-143-062 Screw, #10-24 UNC X 0.75” Lg. PPH 4
23 000-154-192 Spacer 2 Foam 2
24 000-154-001 Spacer, 1/4” X 5/16” - S/S Solution Valve 5
25 000-014-084 Spacer, Foam for Under Head 2
26 000-156-019 Stud 3/8-16 X 2 1/2” 2
27 000-131-118 Velcro Strip 5Ft
28 000-174-003 Washer, 1/4” Flat 5
29 000-174-059 Washer, 5/16” S/S External Star 2

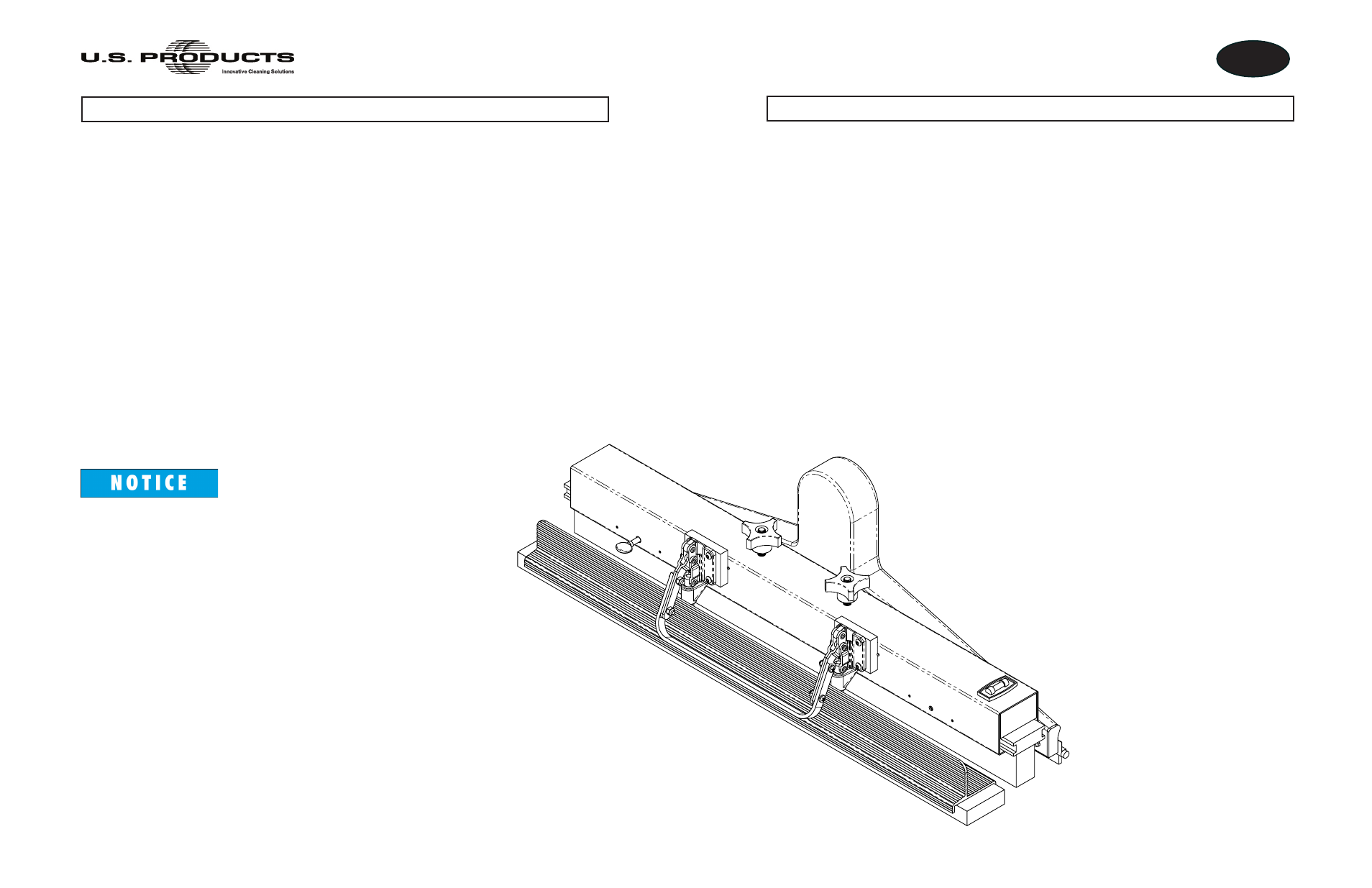

Items 2, 3, 11, 15, 23 and 25 are not shown in
Figure 27.
