Frame Housing Assembly (120V) Parts List
Item Part Number
Description
Qty
Item Part Number
Description
Qty
1
100-100-155
Assembly, Wheels and Jack
1
2
000-001-010
Assembly, Bag Holder
1
3
100-100-156
Assembly, Door
1
4
100-100-152
Assembly, Left - Extension Arm
1
5
100-100-150
Assembly, Left - Rail and Heel Plate
1
6
100-100-154
Assembly, Lift Arm
1
7
100-100-153
Assembly, Right - Extension Arm
1
8
100-100-151
Assembly, Right - Rail and Heel Plate
1
9
100-100-158
Assembly, Tank Support
4
10
100-100-159
Assembly, Vacuum Motor
2
11
100-100-157
Assembly, Vacuum Motor - Housing
1
12
000-049-115
Bag, Vacuum
1
13
000-014-086
Box, Tank Unit Bottom
1
14
000-014-085
Box, Tank Unit Top
1
15
000-033-066
Clamp, 3/4” Spring
1
16
000-178-103
Cord, 14/3 X 25 ft Long - Gray
1
17
000-131-019
Cord, Round, Closed Cell 3/8” CCNS
1
18
000-016-060
Brush, Escalator Riser
1
19
000-055-121
Frame, Cross Bar - Clear Anodized
1
20
000-061-001
Handle, Foam Grip - 6 Inch Open End, 0840” Id
2
21
000-068-501
Hose, 2 1/2” Vacuum X 5’ Lg.
1
22
000-081-350
Label Set, TreadMaster
1
23
000-182-100D
Manual, TreadMaster Guide - Digital
1
24
000-094-034
Nut, #10-24UNC Nylock
5
25
000-143-061
Screw, #10-24 UNC X 0.50” Lg. PPH
1
26
000-143-536
Screw, #10-24 UNC X 1” Lg. PPH
4
27
000-014-087
Spacer Foam Stick 2-Per
1
28
000-154-192
Spacer, 2 Foam
2
29
000-159-102
Tank, TreadMaster - Modified
1
30
000-163-101
Tool, Vacuum Crevice
1
31
000-174-039
Washer, 1/4” Outside Star
1
32
000-178-126
Wire 18 XLP Blue Bulk
4.6 ft
33
000-178-125
Wire 18 XLP Brown Bulk
3 ft
34
000-178-127
Wire 18 XLP Yellow/Green Bulk
4.6 ft

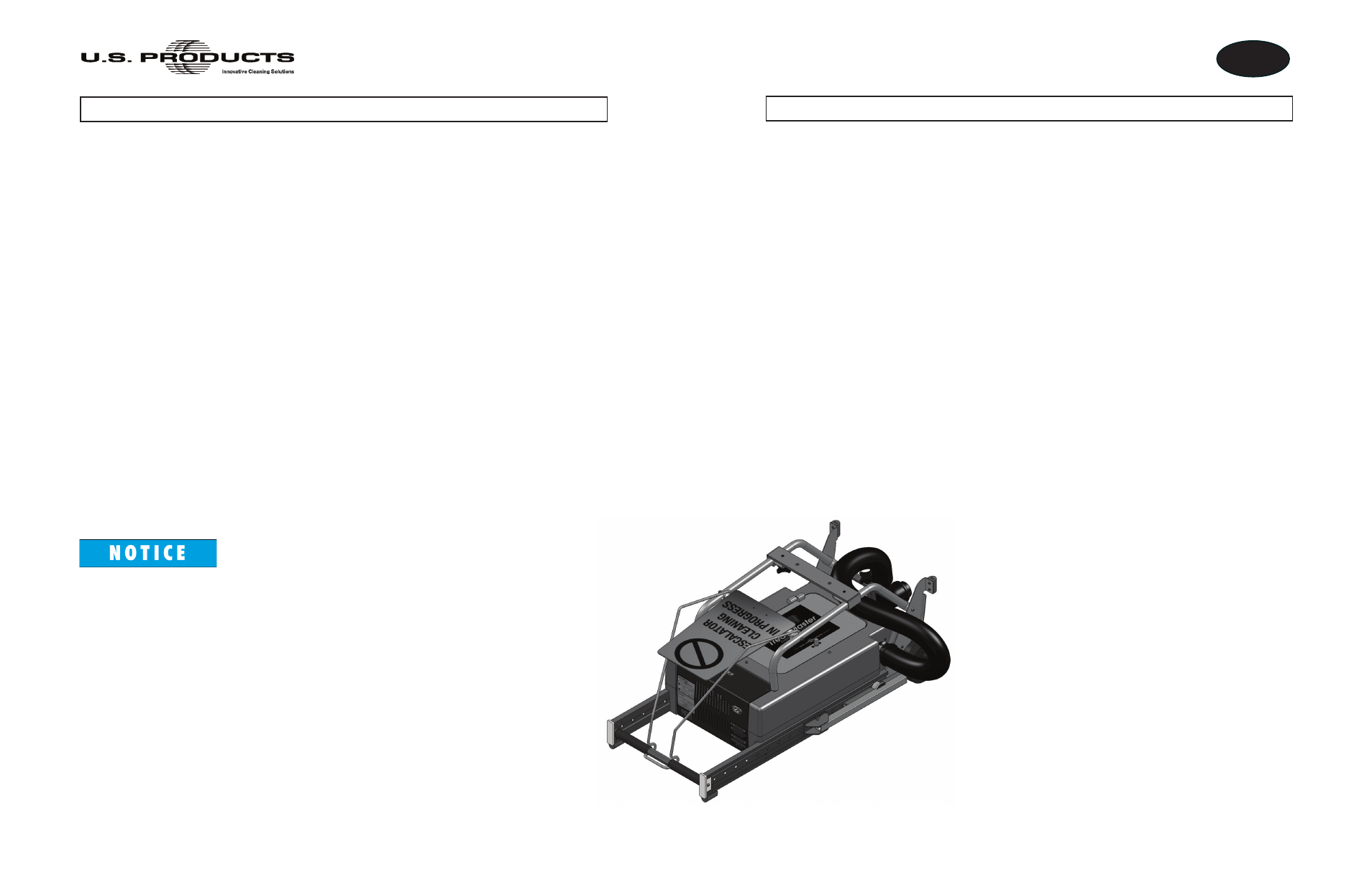

Items 13, 14, 16, 18, 22, 23, 27, 28 and 30 are
not shown in Figure 24 and Figure 25.
The parts list on this page is for the 120V housing
assembly only: 190-100-002.
The part number for the 230V Housing Assembly
is 190-100-201.
