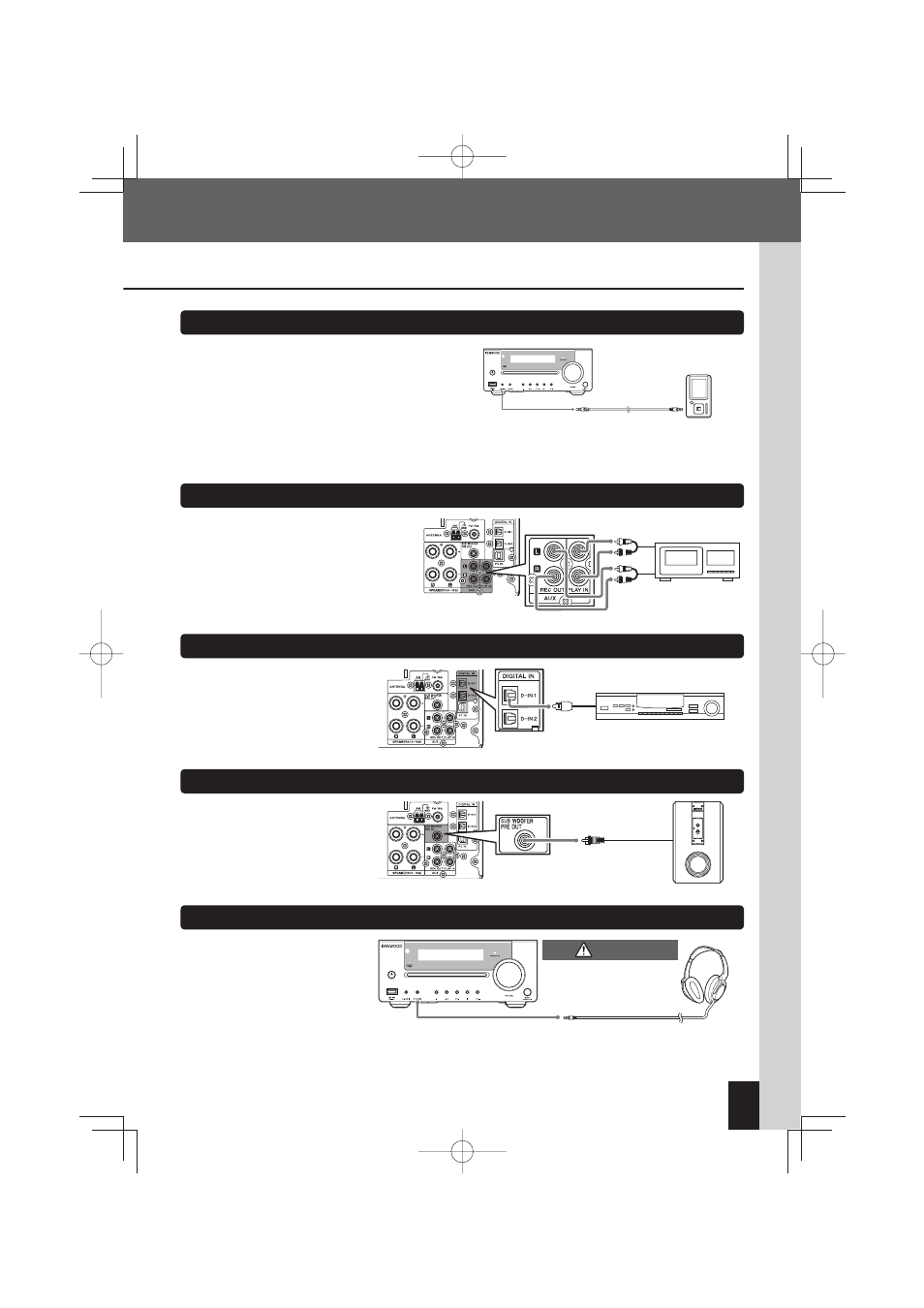

Connecting the System
SUB WOOFER PRE OUT
Connect a subwoofer with a built-in am-
plifier (such as the optional SW-40HT/
sold separately) to the [SUB WOOFER
PRE OUT] terminal on the rear panel of
the main unit.
D.AUDIO
Connect digital audio players to the [D.AUDIO] terminal on the
front panel of the main unit.
z If you connect a Kenwood player that supports digital audio
link using the dedicated cable PNC-150 (sold separately), you
can control the player from the main unit and the remote
control. (P.48) Other portable players can be connected using
a 3.5 mm stereo mini-plug cable (commercially available).
z When you are not using the digital audio player, unplug the mini-
plug cable from the main unit.
Digital
audio
player
PHONES
Plug headphones equipped with a 3.5
mm stereo mini-plug into the [PHONES]
jack on the front panel of the main unit.
z When headphones are connected,
no sound will be output from the
speakers.
Powered subwoofer
DIGITAL IN (PCM signals)
Connect the optical digital output terminals
on components such as digital tuners to
the [DIGITAL IN] terminal on the rear panel
of the main unit.
z Set the digital audio output on
connected components to “PCM”.
Optical digital output
(PCM signals)
Digital tuner, etc.
CAUTION
Excessive sound pressure from
earphones or headphones
can cause hearing loss.
AUX PLAY IN/AUX REC OUT
Connect a cassette deck, etc. to the [AUX PLAY
IN] or [AUX REC OUT] terminal on the rear panel
of the main unit.
z [AUX PLAY IN] inputs an analog audio signal.
z [AUX REC OUT] outputs an analog audio sig-
nal.
Cassette deck, etc.
Audio IN
Audio OUT
