evc/epc Controller
With SAE J1939 Interface

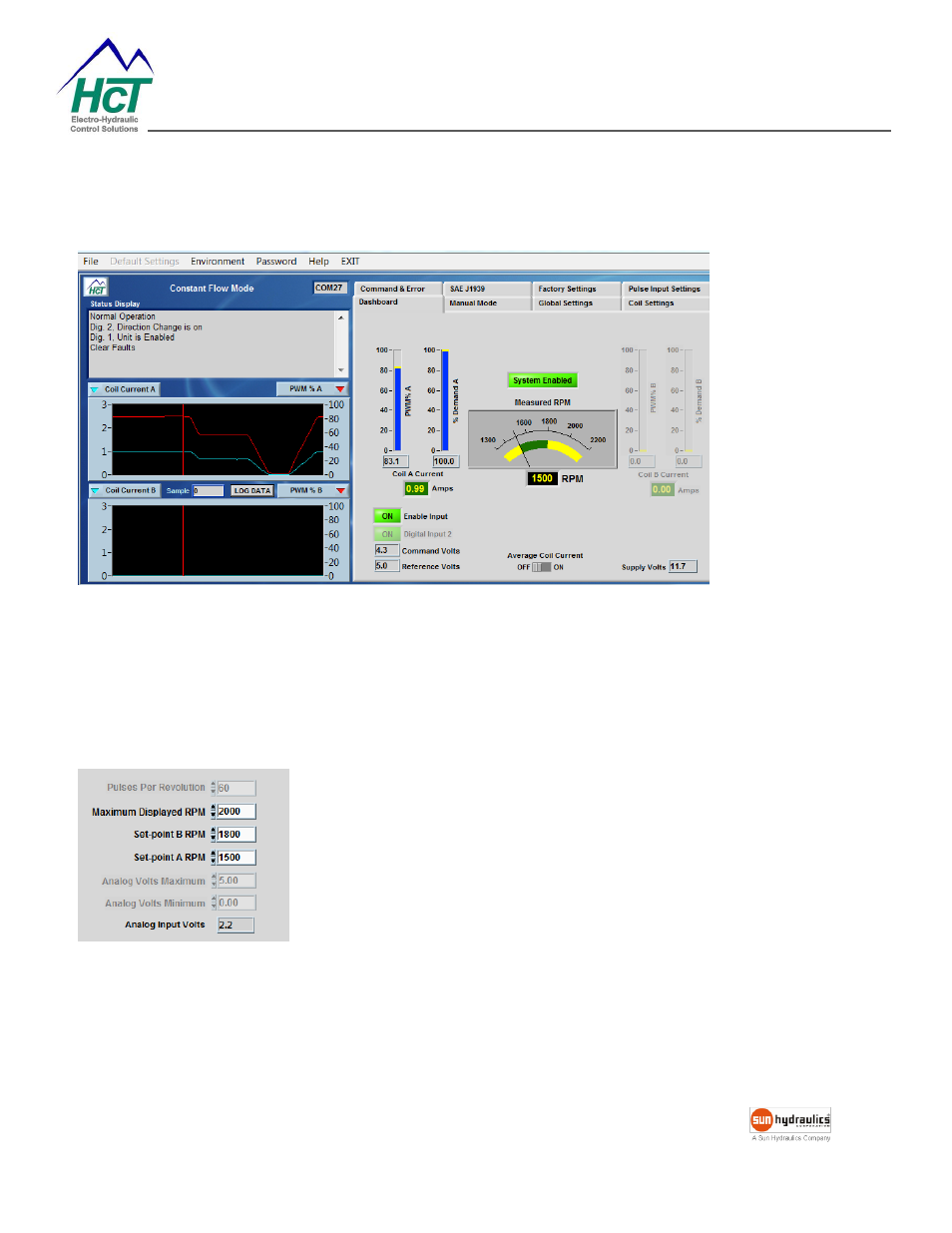

Constant Flow Mode
Constant Flow Mode operates with a variable displacement pump.
It reduces the output of coil A to reduce the pump displacement when the engine rpm increases, maintaining
constant flow output of the pump.
When the measured RPM is 1500rpm, output A
provides max current.
When the measured RPM is 1800rpm, output A
provides 0 current.
