evc/epc Controller
With SAE J1939 Interface

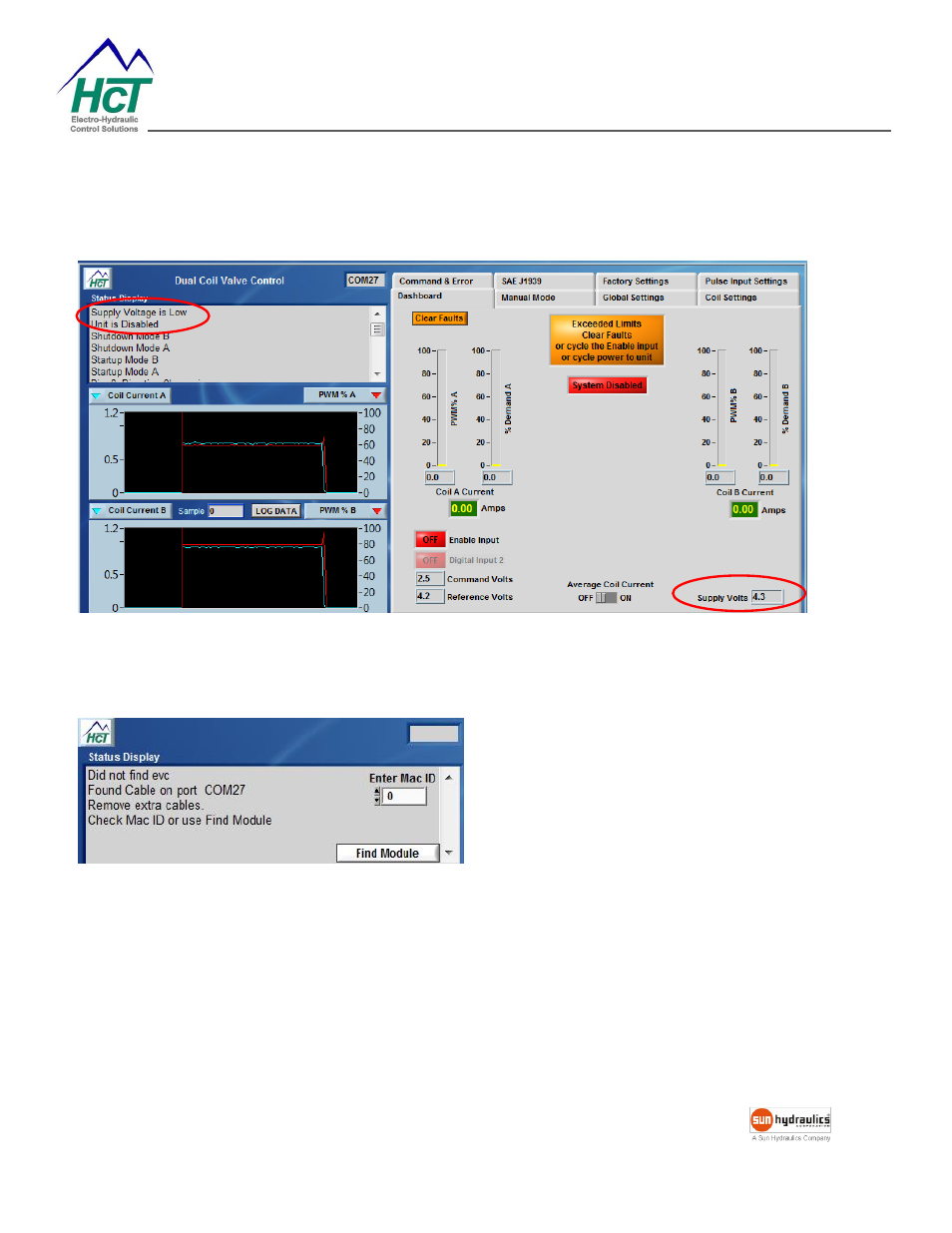

The evc/epc can be powered by a +5V USB to allow configuration without connecting to a 12/24VDC system. A
message
“Supply Voltage is Low” appears on the screen.
The user may communicate, change, and save
settings to the unit without driving the coil(s).
At start up the GUI searches the PC communication ports for the evc/epc controller.
The MAC ID determines
the module’s Command and Status PGN addresses on the SAE J1939 bus. The user may
command multiple evc/epc modules on a single SAE J1939 bus. Please see SAE J1939 section.
The default MAC ID is 1.
“Find Module” or enter the “Mac ID” will locate the controller. It will restart the operation with the controller’s
information and
“Mac ID”.
