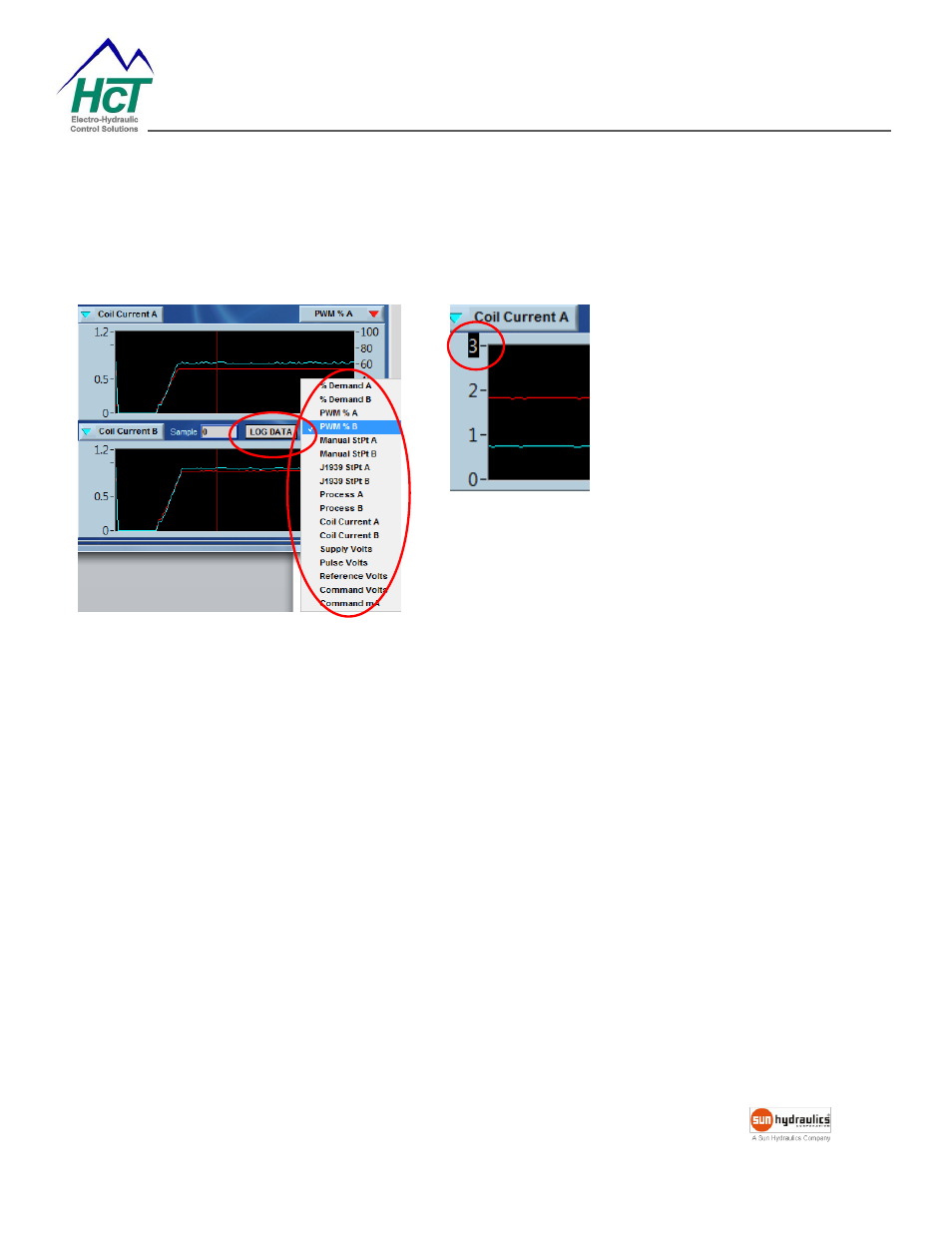

Each graph tracks two variables that are individually scaled. Select the variable from the Pull Down Menus. “Y”
axis is automatically scaled to the respective minimum and maximum values.
To customize the scaling, simply select a value on the graph and enter the desired value.
Data Logging
“Log Data” and save it in “.xls” format. The data file size is only limited by the PC hard-drive capacity.
Each log begins with a list of unit settings and followed by real time operational information. The sample rate
depends on the workload of the PC and the evc/epc at recording. A timestamp scales the logs appropriately.
Subsequent logs may be stored in a new file or appended to the original log file by selecting the original file.
The log file may not have all of the Excel formatting. Excel may declare an unknown file format. If it does, select
‘Open’ and the information will display normally.
