evc/epc Controller
With SAE J1939 Interface

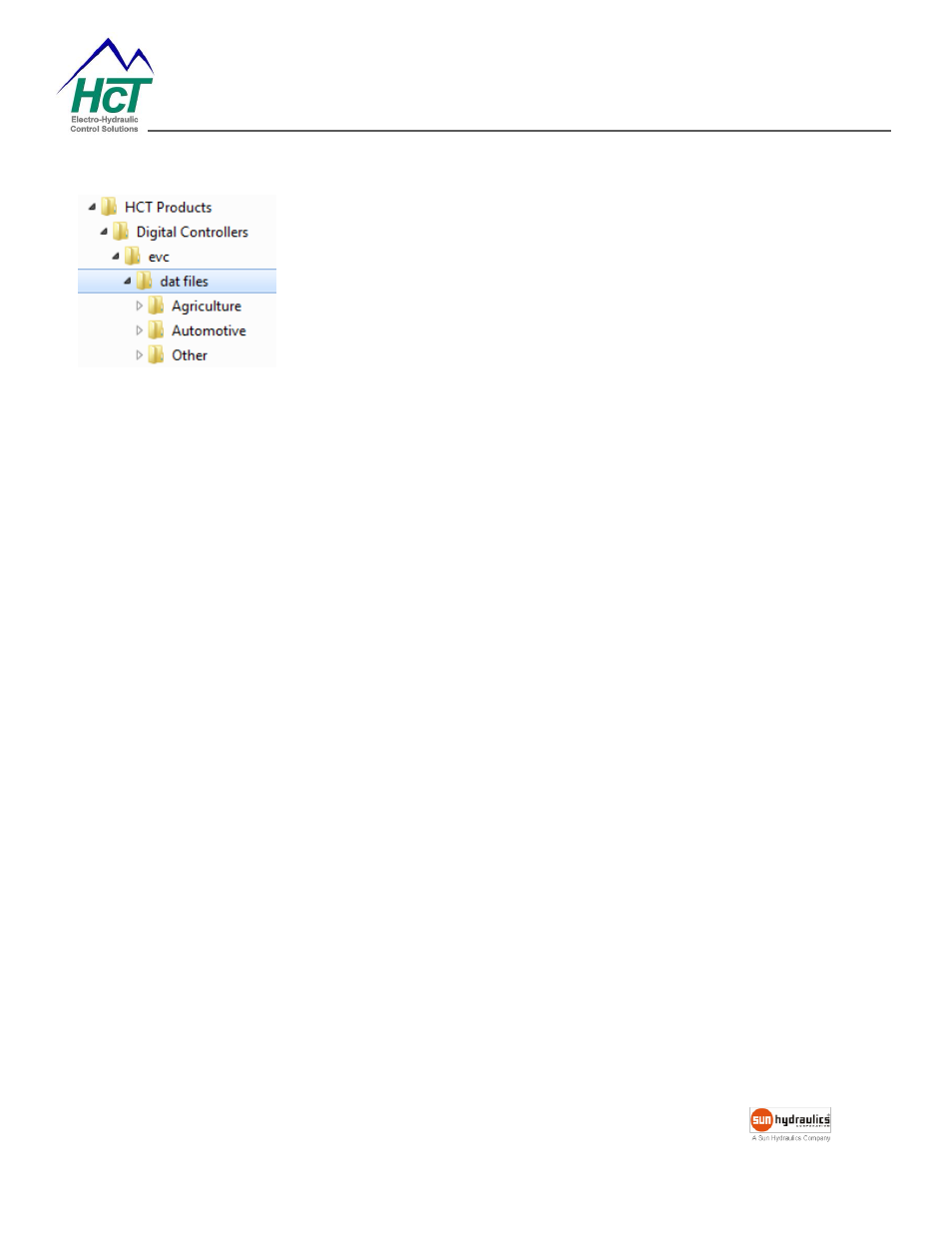

Example data files are saved to your PC during the installation.
When loading factory default data files, select “Environment”, then select the
desired default file.
Default Data files will overwrite any settings in the unit.
Adjust the Coil Settings first, then other settings as needed.
In Agriculture or Automotive you will have Four files:
1. HP Limiting with Variable Command /Anti-stall with Variable Command.
Monitors RPM, the command input, and adjusts the output accordingly.
2. HP Limiting with fixed command/Anti-stall with fixed command.
Monitors RPM and adjusts the output accordingly.
3. Single Coil Pump Control / Valve Control
Controls the single-coil pump/valve in open loop mode.
4. Dual Coil Pump Control / Valve Control
Controls the dual-coil pump(s)/valve(s) in open loop mode.
