AMETEK 2120 PLC Interface Module User Manual
Page 50

46
Installation and Programming Manual
Appendix A: Error Messages
LWR LIM
UPR LIM
MVT FLT
FLT OK
PROGRAM
AUX 1
AUX 2
AUX 3
POS
RPM
Describes the Type of Error
SEr = System Error
OEr = Operating Error
EEr = Entry Error
Indicates Slot that Relates to Error*
1 = Slot 1
2 = Slot 2
3 = Slot 3
4 = Slot 4
Indicates Module that Relates to Error*
0 = Controller
1 =
2 = Resolver
3 = LDT (VP)
4 = LDT (CP)
5 = Relay Output
Indicates Error
(refer to error charts for descriptions and solutions to errors)
* For entry errors, the three right-most digits represent the particular entry error number.
See Chart A-3

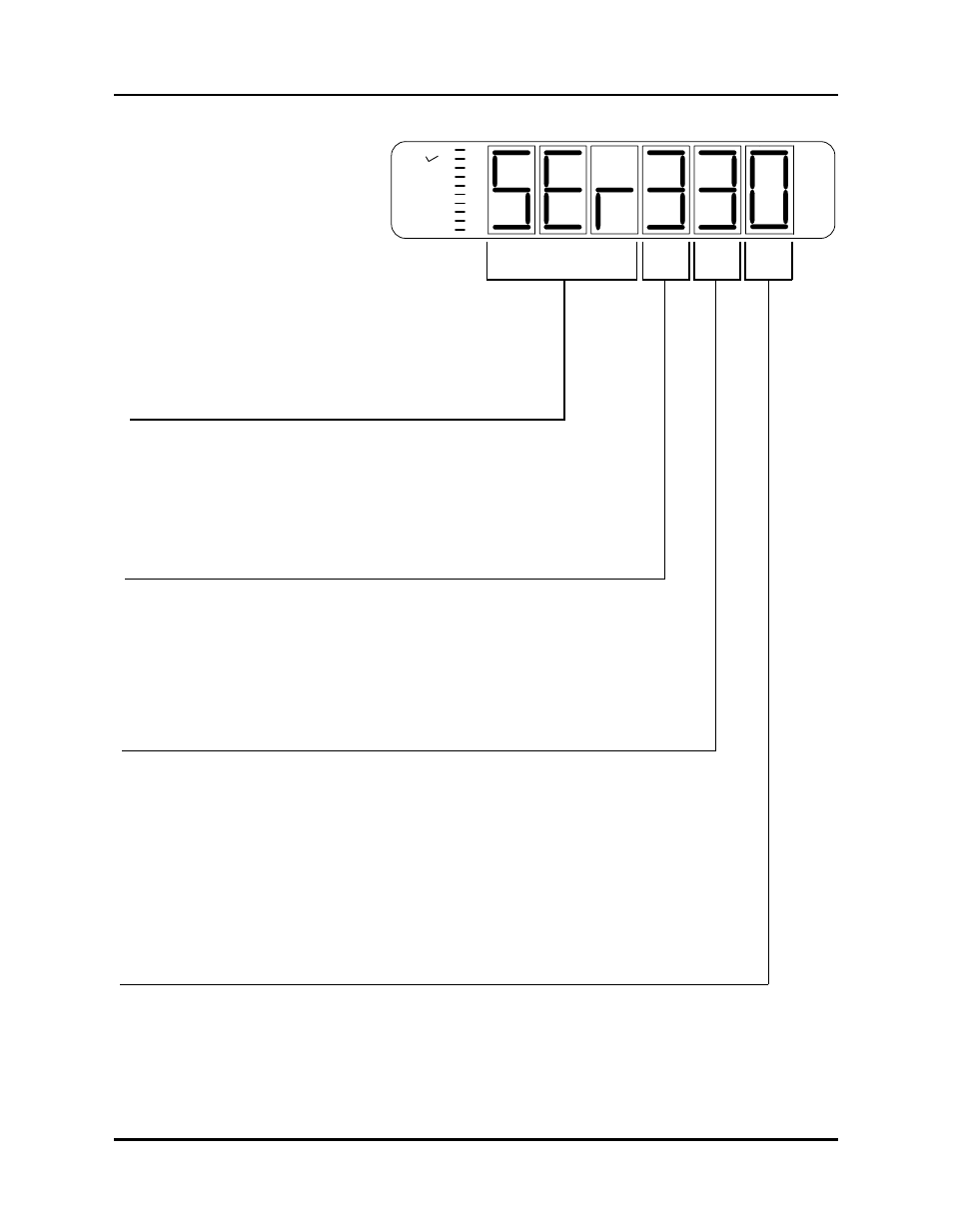

Figure A-1 Characteristics of an Error Message
