0040506000 1811

Operating and installation instructions

Electric thrust actuator ARI-PACO 0,85 kN

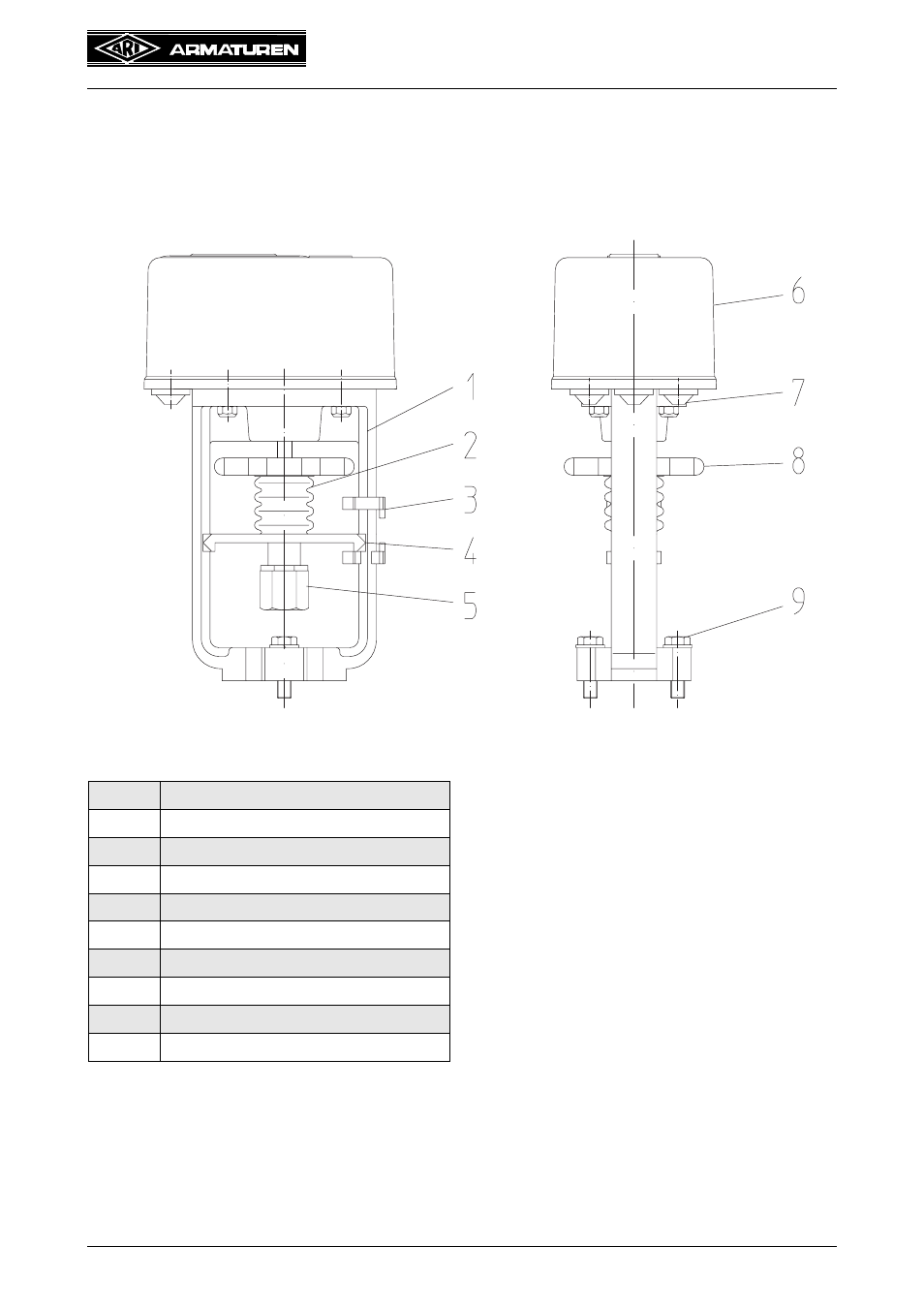

4.3 Diagram

4.3.1 ARI-PACO 0,85 kN

Fig. 1
4.3.1.1 Parts

Pos.

Designation

1

Yoke

2

Bellow

3

Travel indicator

4

Torsion safety feature

5

Coupling

6

Hood

7

Cable conduit fitting

8

Handwheel

9

Hexagon-head screw M8
