Operating and installation instructions
Electric thrust actuator ARI-PACO 0,85 kN
5.5.4 Potentiometer in the ARI-PACO 0,85
The pot card with the 1000 ohm potentiometer relays the actuating feedback signal.
It is delivered as a module and can be inserted without tools..

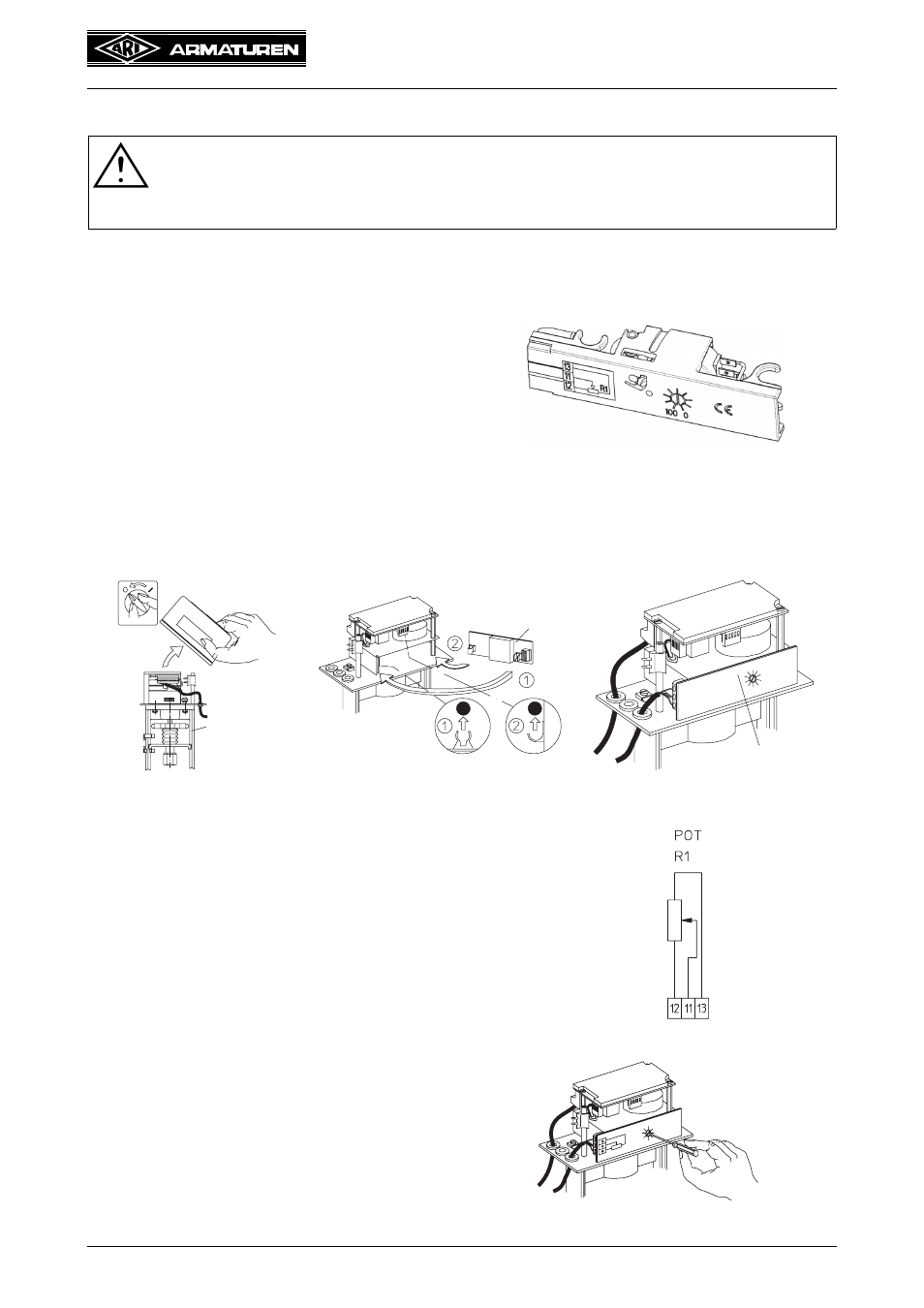

5.5.4.1 Mounting of the potentiometer in the ARI-PACO 0,85
The potentiometer is connected to the actuating drive transmission by means of a slip
coupling. It can be set to an initial value of the potentiometer axis.
ATTENTION !
- Insert only when the linear actuator is switched to a voltage-free state !
(mains voltage switched off and secured against being accidentally switched
on).
1 pcs. card with potentiometer
Fig. 22
Fig. 23 Fig. 24 Fig. 25
ATTENTION !
For an adjust path of 16 mm, the resistance
is about 80% of the pot limit value.
Fig. 26: Connection
For max. extended drive coupling, the
resistance value between connector 11 and
12 is 0 Ohm (zero point)
Fig. 27: Adjustment
On Off
PACO 0,85
Pot card
PACO 0,85
Pot card
PACO 0,85
