Operating and installation instructions
Electric thrust actuator ARI-PACO 0,85 kN
5.5.2.1 Insertion of the switching module in the ARI-PACO 0,85 D
ATTENTION !
- Carry out insertion only on a linear actuator switched to a voltage-free state!
(mains voltage switched off and secured against being accidentally switched
on)

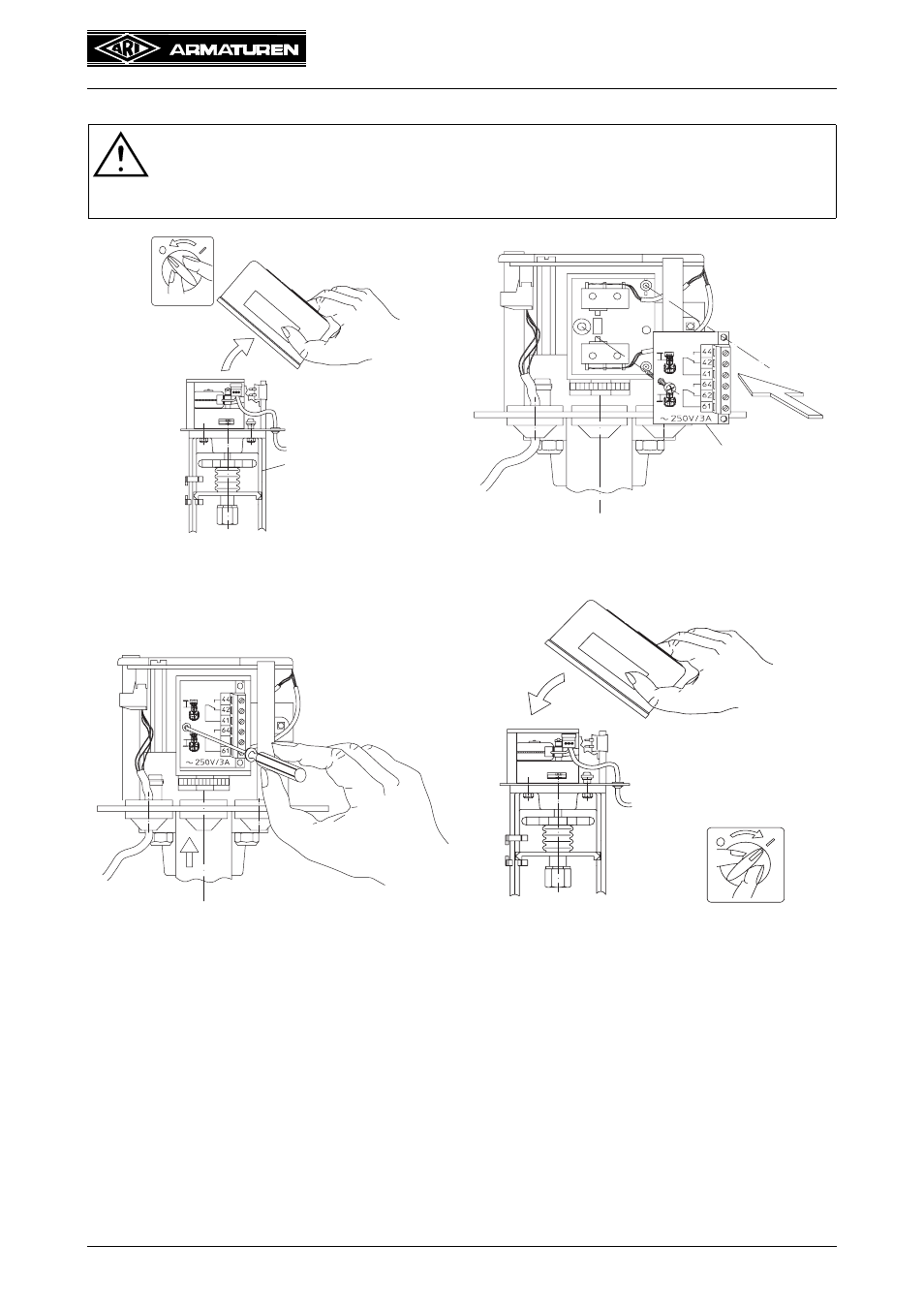

Fig. 10 Fig. 11
Fig. 12 Fig. 13
PACO 0,85 D
switch off mains voltage
remove hood
On Off
Switch card
PACO 0,85 D
On Off
Remount housing and fasten
