Operating and installation instructions
Electric thrust actuator ARI-PACO 0,85 kN
5.5.3 Relay card ARI-PACO 0,85 Y
The relay card in the actuating drive ARI-PACO 0,85 Y functions for the feedback of
disturbances or for valve position.

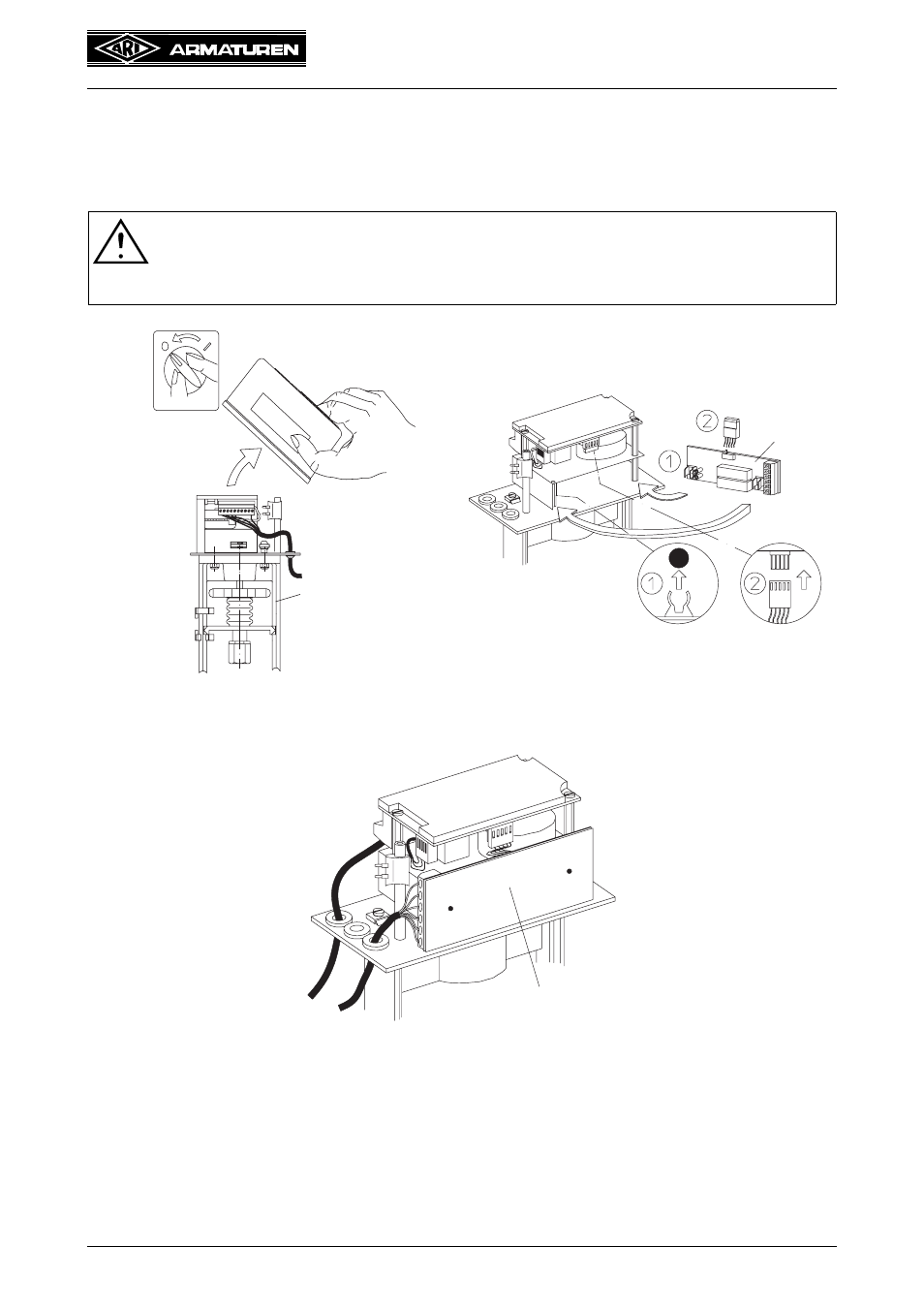

5.5.3.1 Insertion of the relay card in the ARI-PACO 0,85 Y
ATTENTION !
- Carry out insertion only on a linear actuator switched to a voltage-free state!
(mains voltage switched off and secured against being accidentally switched
on)
Fig. 15 Fig. 16
Fig. 17
On Off
PACO 0,85 Y
Relay card
PACO 0,85 Y
Relay card
PACO 0,85 Y
