INSTALLATION
BMK6 - Open Base Mount
Before attaching the BMK6 to the panel or frame, it is recommended to wire and mount the unit to
ensure good electrical connections. The following steps outline the most common sequence for installing
a unit without an MLPS attached.
1. Install the grommet (provided in the accessory bag) in the hole in the base mount.
2. Assemble nut fastener and mounting screw onto both sides of the mounting clip. The
tip of the screw should not project from the hole in mounting clip.
3. Slide the panel gasket over the rear of the unit to the back of the bezel.
Then install the unit through the opening in the front of the base mount
until the bezel flange makes contact.
4. Slide the mounting clip over the rear of the unit until the
mounting clip is against the inside of the base mount. The
mounting clip has latching features which engage into
mating features on the unit’s housing.
Note: It is necessary to hold the unit in place when sliding the
mounting clip into position.
5. Alternately tighten each screw to ensure uniform gasket
compression.
6. Connect the necessary wires from the grommet to the unit.
7. Mount the base mount enclosure to the panel or frame as application
requires. Four bolts and nuts are provided with the Base Mount Kit.
DESCRIPTION
The BMK6, BMK7 and BMK7A base mounts are designed for use with the
CUB4, CUB5, and DT8 units. The BMK7 is large enough to accommodate a
Micro-line Power Supply (MLPS) attached to a CUB4 or DT8. The BMK7A
will accommodate a Micro-line Power Supply (MLPS) attached to a CUB5.
The wires can either be brought through the panel on which the unit is
mounted, or through the hole(s) in the enclosure itself. Grommets are provided
to insert in the hole(s) on the base mount (where applicable) when wires are
routed through it. The grommets are in the accessory bag with each base mount
unit, along with four nuts and bolts for mounting.
The base mounts are constructed of steel with a textured black finish.
MODEL BMK6, BMK7 & BMK7A - BASE MOUNT KIT FOR CUB4, CUB5 & DT8 UNITS
BMK7/BMK7A - CLOSED BASE MOUNT KIT
(With or Without MLPS)
BMK6 - OPEN BASE MOUNT KIT
(Without MLPS)

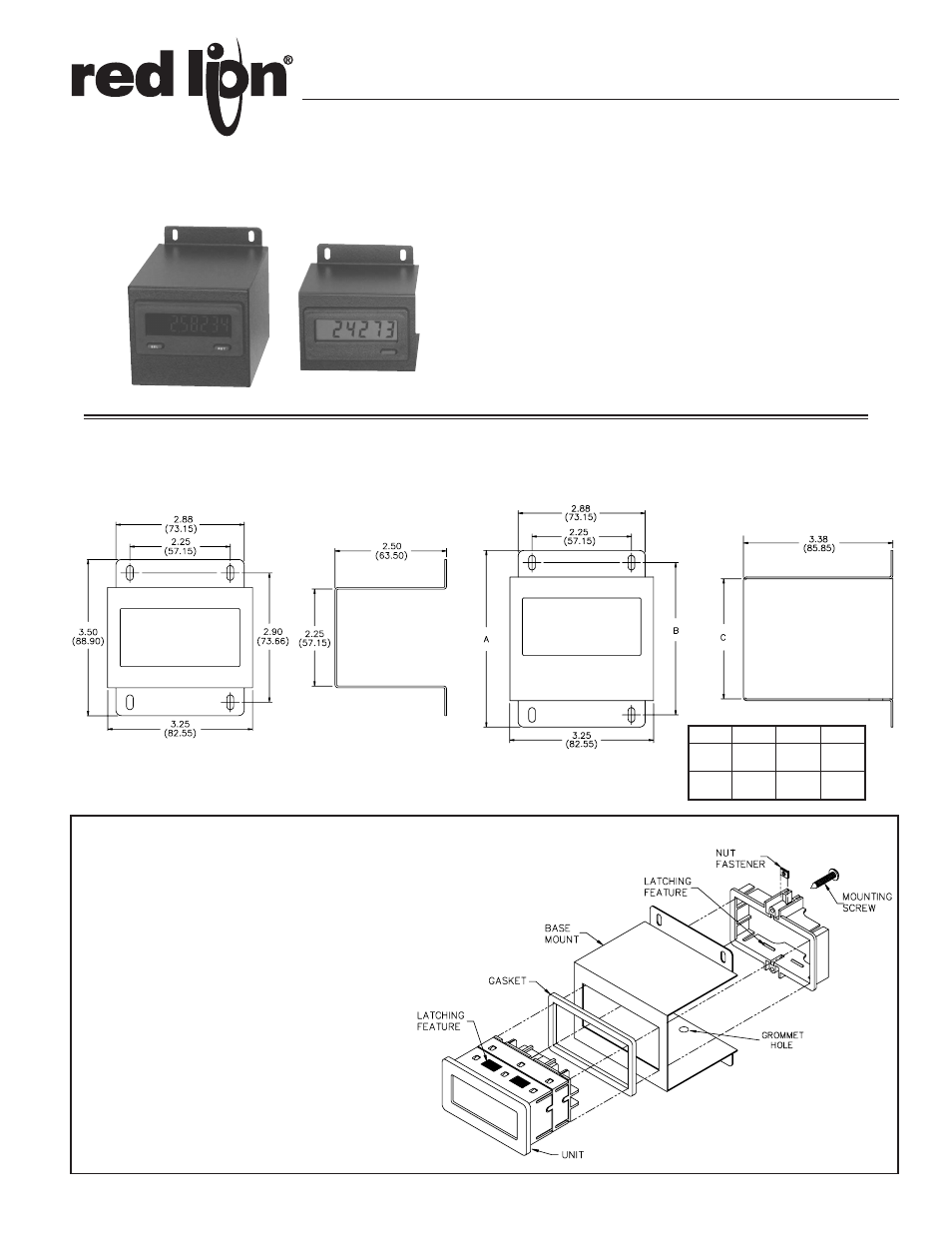

DIMENSIONS In inches (mm)
Bulletin No. BMK6/7-E
Drawing No. LP0392
Released 6/08
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
A B C
3.45
(87.63)
2.80
(71.12)
4.00
(101.50)
3.50
(88.90)
MODEL
BMK7
BMK7A
4.00
(101.50)
4.62
(117.35)
