3
BLU
BLK WHT
BRN 4-WIRE TINNED ENDS
BRN
WHT
BLU
BLK

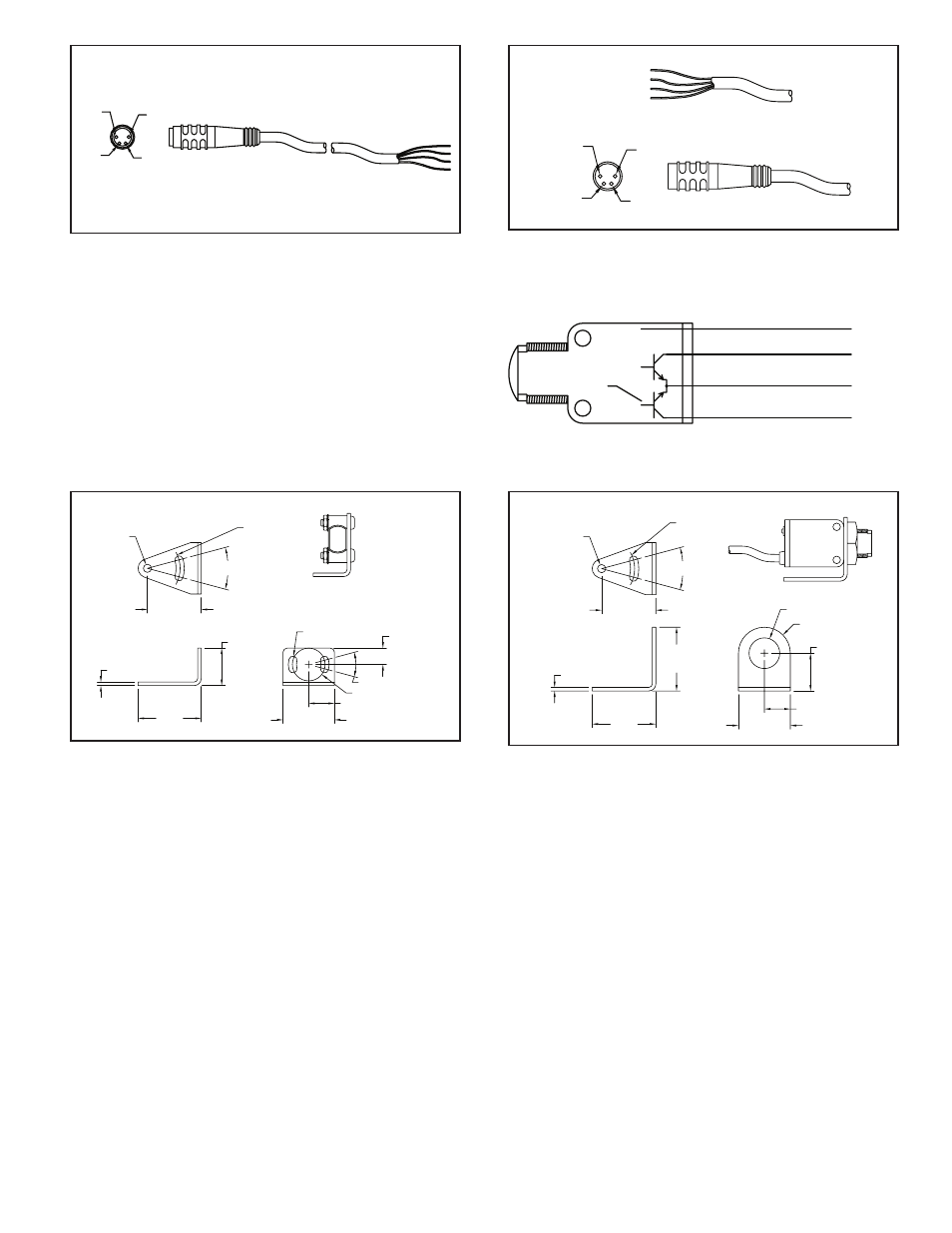

MOUNTING
Various mounting methods have been designed to simplify alignment and
provide versatility in any industrial environment. The integral 12 mm thread-
ed lense can be interchanged with existing threaded entries common to 12 mm
barrel sensors and inductive proximity switches. The threaded lense can also
be installed into panel thicknesses of 3/16" through a 0.51" diameter hole and
tightened into place with the supplied mounting nut. Two #4 screw clearance
through-holes on 0.55" centers are available for side mounting or side nesting
of multiple units on 1/2" centers for scanning large areas or for code reading
applications. Units may also be mounted using the stainless steel Bottom-
Mount or Side-Mount Bracket Kits (Models MBM2 or MBM3). These brack-
ets allow 2 axes of movement & greatly simplify alignment.
BRN (+10 TO 30VDC)
BLK (NPN O.C.)
WHT (NPN O.C.)
BLU (COMMON)
30°
Ш .14 (Ш3.5)
1.06
(27.0)
.06 (1.5)
.63 (16.0)
.43 (11.0)
.87 (22.0)
.28 (7.0)
30°
R.07 (R1.75)
R.55 (R14.0)
.91 (23.0)
Ш .55 (Ш14.0)
FRONT OF SENSOR
TILTS VERTICALLY
±15 DEGREES
FROM HORIZONTAL
±15 DEGREES FROM POSITION SHOWN
BRACKET ROTATES HORIZONTALLY
30°
Ш .14 (Ш3.5)
1.06
(27.0)
.06 (1.5)
.87 (22.0)
R.55 (R14.0)
.91 (23.0)
.43 (11.0)
.63 (16.0)
FULL R.
Ш .51 (Ш13.0)
1.06
(27.0)
CCMPE WIRE OPTIONS
MBM3 MBM2
WIRING DIAGRAM
4-PIN FEMALE PICO-STYLE CONNECTOR [ 6.5' (2 m) ] 4-PIN MALE PICO-STYLE CONNECTOR
