2
SPECIFICATIONS
1. POWER REQUIREMENTS: +10 to +30 VDC (10% Ripple Max.)
Current Draw: 25 mA max. (exclusive of load)
Re verse Polarity Protected
2. REPEATABILITY: Opposed Mode: 1 msec, All others: 175 µsec.
3. OUTPUTS: Current Sinking Complementary NPN Open Collector
Transistor; Short Circuit Protected
I
SNK
: 150 mA max. each; V
OH
= 30 VDC max.
V
SAT
: 1 V @ 10 mA load
Offstate Leakage Current : Less than 10 µA @ 30 VDC
4. OUTPUT RESPONSE TIME: Opposed Mode: 8 msec ON, 4 msec
OFF, All others 1.5 msec
5. OPERATING TEMPERATURE: -4° to+131°F (-20° to +55°C)
6. WEIGHT: 0.4 oz. (1.13 g)
ORDERING INFORMATION
MODEL NO. DESCRIPTION
PART NUMBERS
w/ 2 Meter Cable w/ Pico Connector
RRMDC Retroreflective DC Photo-Electric Sensor RRMDC000 RRMDC001
PRMDC Proximity (Diffuse) DC Photo-Electric Sensor PRMDC000 PRMDC001
EMMDC DC Emitter (Opposed Beam Pair) EMMDC000 EMMDC001
RCMDC DC Receiver (Opposed Beam Pair) RCMDC000 RCMDC001
MB2 Bottom Mount Bracket Kit MBM20000
MB3 Side Mount Bracket Kit MBM30000
RT1 1-1/2" Dia. Prismatic Reflector (Model RRMDC) RT100000
RT2 3" Dia. Prismatic Reflector (Model RRMDC) RT200000
CCMPE Pico-Style Quick Disconnect Connector & Cable, 2 meters CCMPE000
SET-UP AND INSTALLATION
USING THE PHOTOELECTRIC
LED INDICATORS
The photoelectric has two bright LEDs; both are visible from the back, and
each is visible from one side of the sensor. They indicate the following:
Green steady: Power ON
Amber steady: Light sensed
Green flashing rapidly 5 times: Maximum gain
Single green flash: Push button “click” registered, gain reduced by one
increment
Amber/Green alternating: Minimum gain (can not reduce further)
SETTING SENSITIVITY
The unit features an extremely simple method for setting sensitivity (gain).
Simply hold the push button until the LED flashes rapidly, 5 times. The sen-
sor is automatically set to maximum gain.
Reduce gain by pressing the push button briefly (“clicking” it) up to 7 times;
gain will reduce in single increments with each click. Amber and green LEDs
alternate after the lowest setting is reached.
If the gain is accidentally set too low, hold the push button until gain
increases to the maximum level, then click the push button down to the appro-
rpriate level. Gain may be readjusted in this way at any time.
Push Button
Amber Output LED
Green Power LED
Do not dispose of unit in trash - Recycle
.31 (8.0)
.79
(20.0)
.79
(20.0)
.31 (8.0)
PUSHBUTTON
LEDS
.87 (22.0)
.07 (1.8) 1.38 (35.0)
.55 (14.0)
.12 (3.0)
MOUNTING HOLES (2),
Ш .13 (Ш3.2), FOR
SIDE MOUNTING
M12 X 1
THREAD
PVC-COVERED CABLE
(SEE WIRE OPTIONS)
.17 (4.2)
.71
(18.0)
MOUNTING NUT
(SUPPLIED)

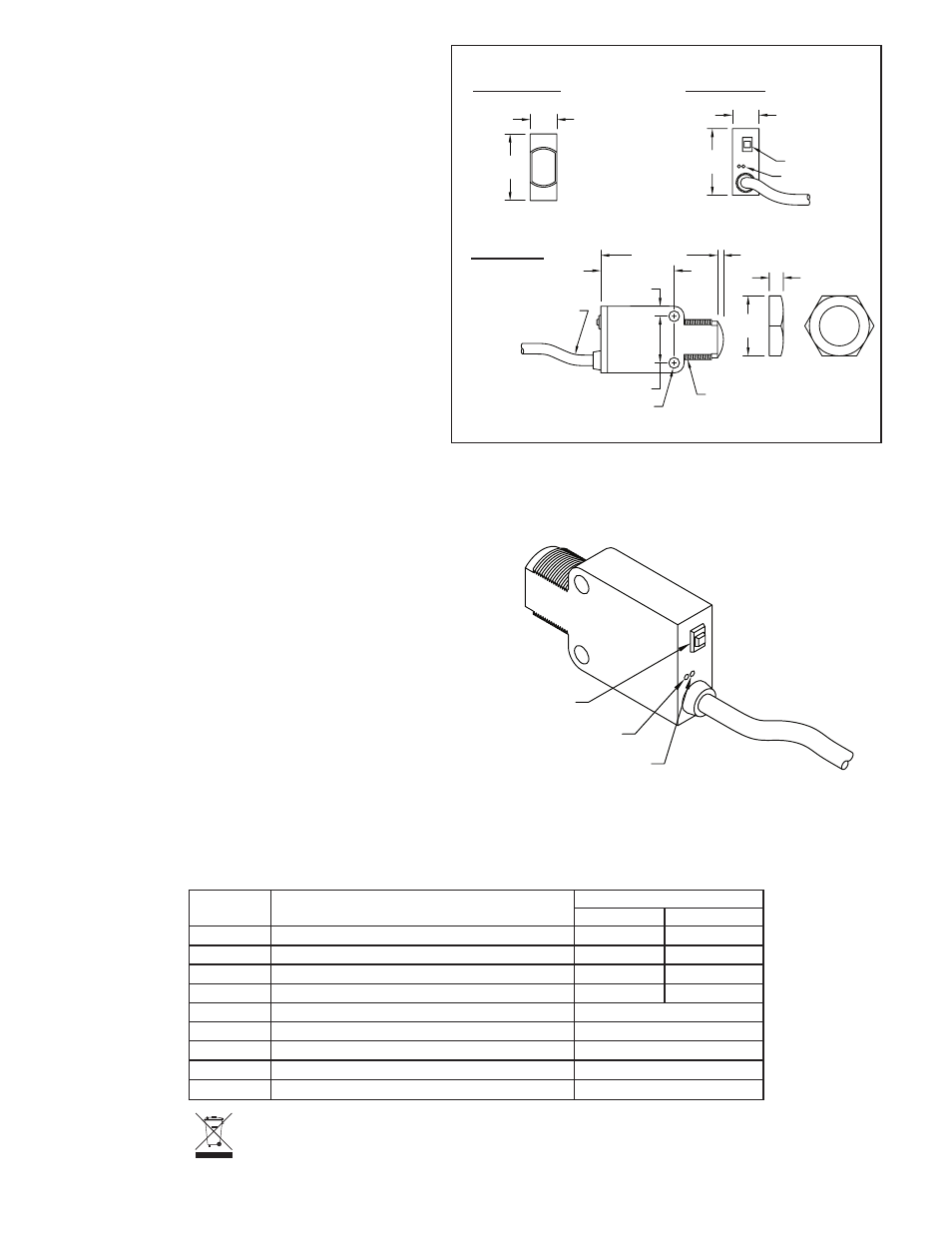

DIMENSIONS In inches (mm)
SIDE VIEW
FRONT VIEW REAR VIEW
