ORDERING INFORMATION
ACCESSORIES
DESCRIPTION PPR PART NUMBER
ZMD
250 ZMD0250B
500 ZMD0500B
Miniature Length Sensor
with Quadrature Output
2500
2000
1000
ZMD2500B
ZMD2000B
ZMD1000B
MODEL NO.
Only factory stocked part numbers are listed. Consult the factory for part number
and availability of other PPR and output configurations.
RPGMB002
WM0200OK Knurled (200 mm Circumference) Wheel
WI0006OK Knurled (6" Circumference) Wheel
WI0006OF
WM0200OF
Urethane (6" Circumference) Wheel
Urethane (200 mm Circumference) Wheel
Mounting Bracket
PART NUMBER DESCRIPTION
8. MOUNTING: Pivot Shaft can be mounted from either side of the housing
and is field reversible.
9. HOUSING: Stainless steel fibers in a high temperature nylon composite
10. WEIGHT: 5 oz typical
ENVIRONMENTAL SPECIFICATIONS
1. OPERATING TEMPERATURE: -20°C to 85°C
2. STORAGE TEMPERATURE: -25°C to +85°C
3. HUMIDITY: 98% RH non-condensing
4. VIBRATION: 10 g @ 58 to 500 Hz
5. SHOCK: 80 g @ 11 msec duration
6. SEALING: IP50
2.00
1.00
1.75
R.14
1.00
.25
1.81
R.093 (44.45)
(50.8)
(25.4)
(6.35)
(44.45)
(25.4)
1.75
1.25 (31.75)
.75 (19.05)
.125 (3.175)
(45.97)

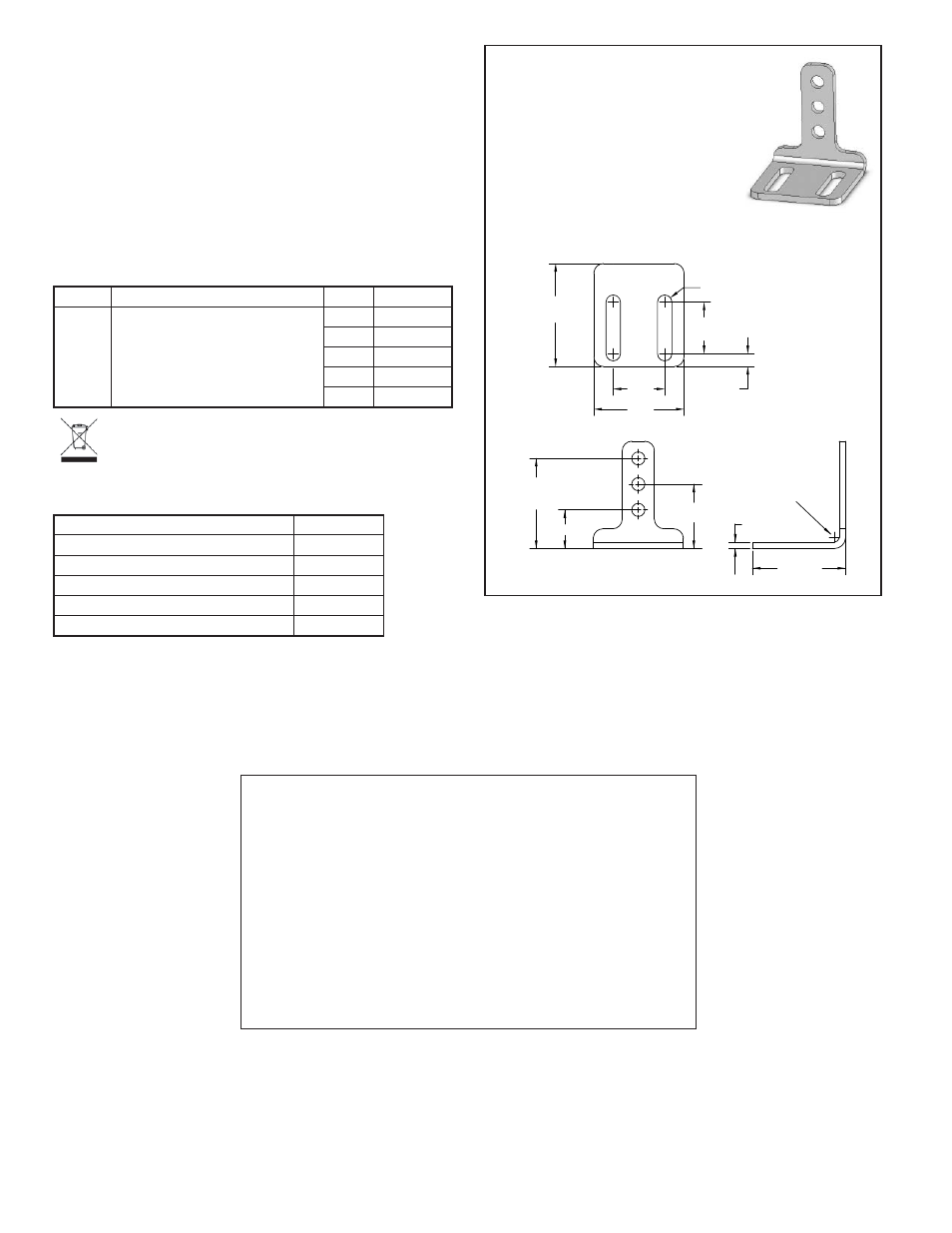

DIMENSIONS In inches (mm)
MOUNTING BRACKET
This accessory angle mounting bracket allows for a
variety of mounting positions and makes installation of
the ZMD even easier.
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship
for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except those
expressly contained herein. The Customer acknowledges the disclaimers and limitations contained
herein and relies on no other warranties or affirmations.
Red Lion Controls
Headquarters
20 Willow Springs Circle
York PA 17406
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
Red Lion Controls
China
Unit 101, XinAn Plaza
Building 13, No.99 Tianzhou Road
ShangHai, P.R. China 200223
Tel +86 21 6113-3688
Fax +86 21 6113-3683
Red Lion Controls
Europe
Printerweg 10
NL - 3821 AD Amersfoort
Tel +31 (0) 334 723 225
Fax +31 (0) 334 893 793
Red Lion Controls
India
54, Vishvas Tenement
GST Road, New Ranip,
Ahmedabad-382480 Gujarat, India
Tel +91 987 954 0503
Fax +91 79 275 31 350
Do not dispose of unit in trash - Recycle
