Red Lion CTD - Manual

z THREE JUMPER SELECTABLE INPUT RANGES
z OUTPUT IS MAGNETICALLY ISOLATED FROM THE INPUT
z INTERNAL POWER REGULATION
z SPLIT-CORE CASE FOR EASY INSTALLATION
GENERAL DESCRIPTION
CTD transducer combines a Hall Effect sensor and a signal conditioner into a
single package. This provides higher accuracy, lower wiring costs, easier
installation and saves valuable panel space. The CTD has jumper selectable
current input ranges and industry standard 4-20 mA output with a split-core case.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons or
equipment in the event of a fault to the unit.
SPECIFICATIONS
1. OUTPUT SIGNAL: 4-20 mA
2. OUTPUT LIMIT: 23 mA
3. ACCURACY: 1.0% FS
4. REPEATABILITY: 1.0% FS
5. RESPONSE TIME: to 90% of step change 100 msec
6. FREQUENCY RANGE: DC
7. POWER SUPPLY: 22 – 26 VAC/VDC
Power input and output signal are not isolated.
8. POWER CONSUMPTION: 2 VA
9. LOADING: 650
Ω max.
10. ISOLATION VOLTAGE: 3 kV (monitored line to output)
11. LINEARITY: 0.75% FS
12. CURRENT RANGES: Three selectable Ranges: 0 – 50 A
0 – 75 A
0 – 100 A
13. CASE: UL 94V-0 Flammability rated thermoplastic
14. ENVIRONMENTAL: -4 to 122 °F (-20 to 50 °C)
0-95% RH, non-condensing

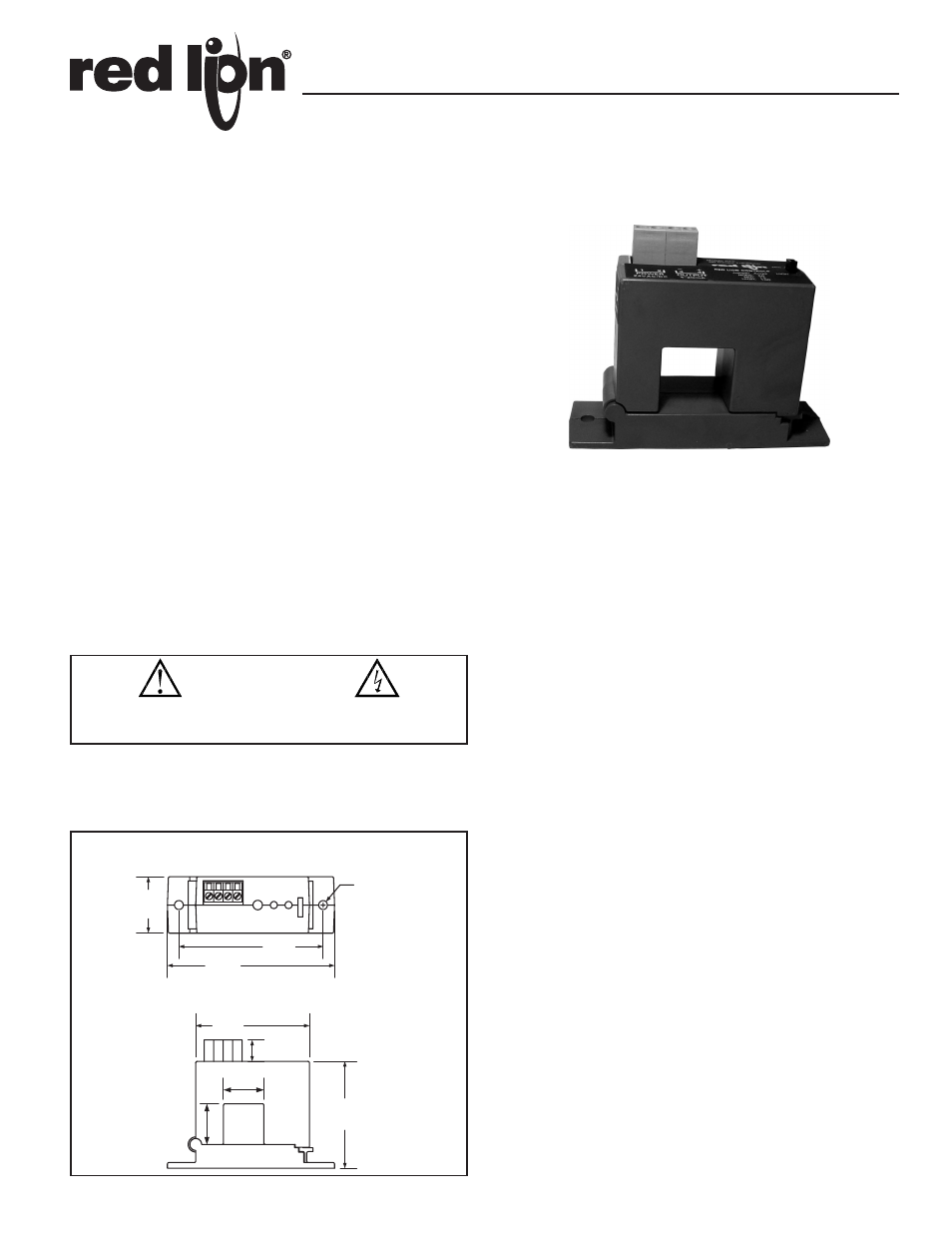

MODEL CTD - DC CURRENT TRANSDUCER
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
CAUTION: Risk of electric shock.
Bulletin No. CTD- A
Drawing No. LP0654
Released 4/08
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
0.85
(21.7)
2.25
(57.2)
1.18
(30)
0.45
(11.4)
Ø 0.19
(4.8)
0.85
(21.6)
3.53
(89.7)
3.04
(77.2)
2.40
(61)
DIMENSIONS In inches (mm)
