Red Lion CUB5P User Manual
General description, Safety summary, Dimensions in inches (mm)

1
THREE SELECTABLE D.C. RANGES
0 to 10 V, 0(4) to 20 mA, 0 to 50 mA
MINIMUM AND MAXIMUM DISPLAY CAPTURE
LCD, REFLECTIVE OR RED/GREEN LED BACKLIGHTING
0.48" (12.2 mm) HIGH DIGITS
OPTIONAL SETPOINT OUTPUT CARD
OPTIONAL SERIAL COMMUNICATION CARD (RS232 or RS485)
OPTIONAL USB PROGRAMMING CARD
OPERATES FROM 9 TO 28 VDC POWER SOURCE
FRONT PANEL OR CRIMSON PROGRAMMABLE
DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT
NEMA 4X/IP65 SEALED FRONT BEZEL

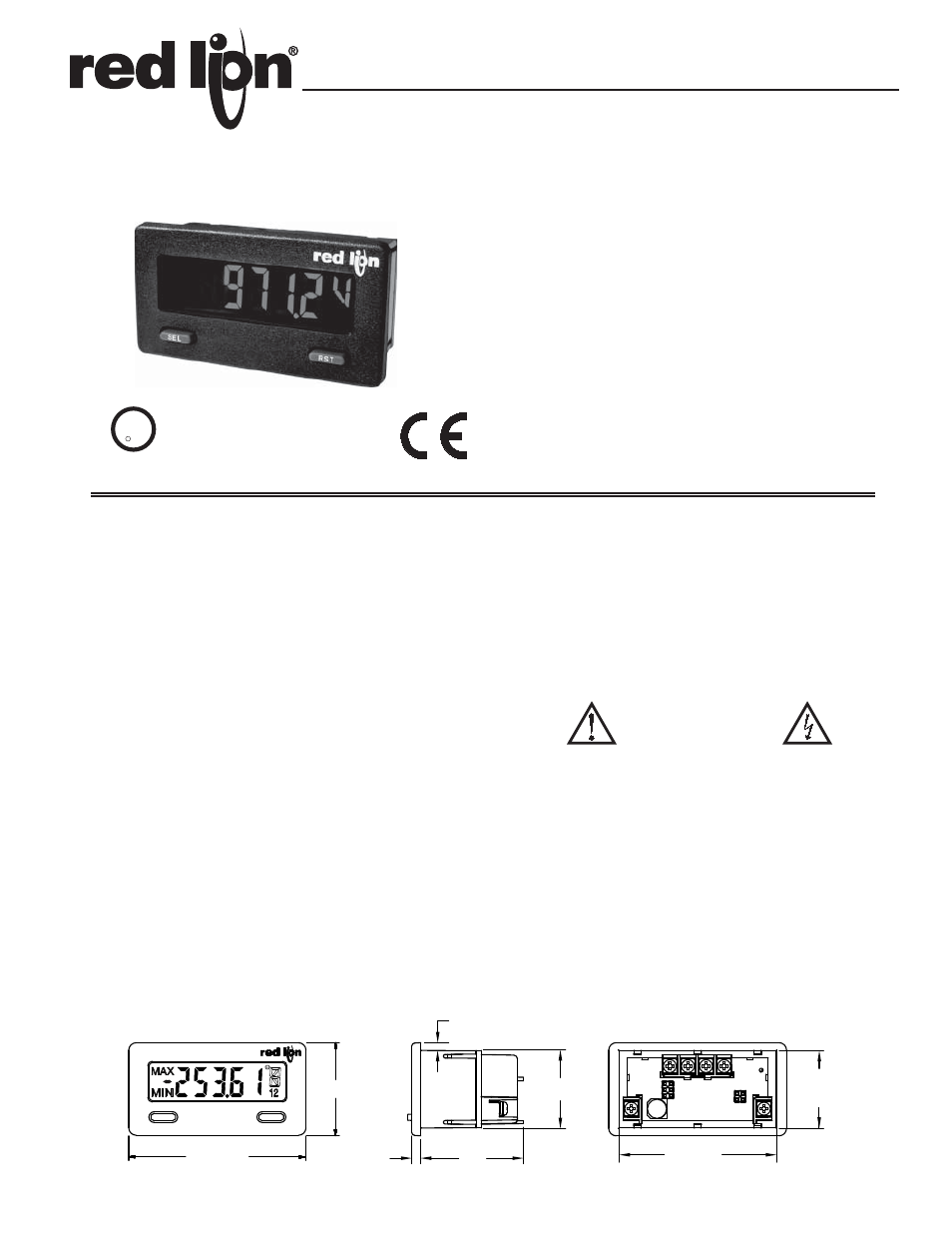

MODEL CUB5P - MINIATURE ELECTRONIC 5-DIGIT PROCESS METER
GENERAL DESCRIPTION
The CUB5 Series provides the user the ultimate in flexibility, from its
complete user programming to the optional setpoint control and communication
capability. The CUB5 accepts a DC voltage or current input signal and provides
a display in the desired unit of measure. The meter also features minimum and
maximum display capture, display offset, units indicator, and programmable
user input. The display can be toggled either manually or automatically between
the selected displays.
The CUB5 display has 0.48" (12.2 mm) high digits. The LCD is available in
two versions, reflective or red/green backlight. The backlight version is user
selectable for the desired color and also has variable display intensity.
The capability of the CUB5 can be easily expanded with the addition of
option cards. The setpoint output cards are field installable with programmable
setpoints. Serial communications capability for RS232 or RS485 can be added
with a serial option card.
The CUB5 can be powered from an optional Red Lion Micro-Line/Sensor
Power Supply (MLPS), which attaches directly to the back of a CUB5. The
MLPS is powered from 85 to 250 VAC and provides up to 400 mA to drive the
unit and sensors.
INPUT
The CUB5P is a DC Process meter. It features voltage and current input
ranges, that are selected by the user via a programming jumper and software
input range selection. The ranges consist of the following: 0 to 10 V, 0(4) to 20
mA, or 0 to 50 mA. Users should select the appropriate voltage range that
covers their maximum input.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.
Bulletin No. CUB5P-G
Drawing No. LP0655
Released 12/12
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
CAUTION: Risk of Danger.
Read complete instructions prior to
installationand operation of the unit.
CAUTION:
Risk of electric shock.
DIMENSIONS In inches (mm)
.13 (3.3)
(43.4)
1.71
2.95 (74.9)
SEL
.15 (3.8)
1.54 (39.1)
RST
(68 )
+.025
-.000
+8
-0
1.29 (32.8)
2.68
-.000
1.30
(33 )
-0
+6
+.024
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
CC
US LISTED
US LISTED
UL
R
51EB
IND. CONT. EQ.
