4.0 r
esetting
t
he
d
isplay
The display may be reset to zero via the front RST key, the remote reset input
or both.
The front RST key must be enabled for front panel reset. DIP switch # 3 on
the low voltage input units or the single DIP switch on the high voltage input
units. (See 2.0 Setting the DIP Switches for switch location)
The remote reset is activated via an external momentary contact closure
between the reset input (blue wire) and the common (black wire). When the
optional terminal blocks are used, see 5.0 Wiring The Meter, for the appropriate
reset input terminal and the common terminal.
3.0 p
rOgramming
t
he
t
ime
r
ange
The CUB7 Timer has 9 time ranges. To change ranges, enable the front
keypad with the DIP switch and press the SEL key. The currently programmed
time range will be displayed (example 2222222.2 = time range 2). To change the
range, press the RST key. The ranges will cycle from 0-8 and back to 0. To enter
your time range, press the SEL key and the unit will retain the current time range
and return back to normal.
DISPLAY DURING
PROGRAMMING
TIMER RANGE
00000.000 0.001 SEC
111111.11 0.01 SEC
2222222.2 0.1 SEC
333333333 1 SEC
4444444.4 0.1 MIN
555555555 1 MIN
666666.66 0.01 HR
7777777.7 0.1 HR
88888888 1 HR
SEL RST
85374216

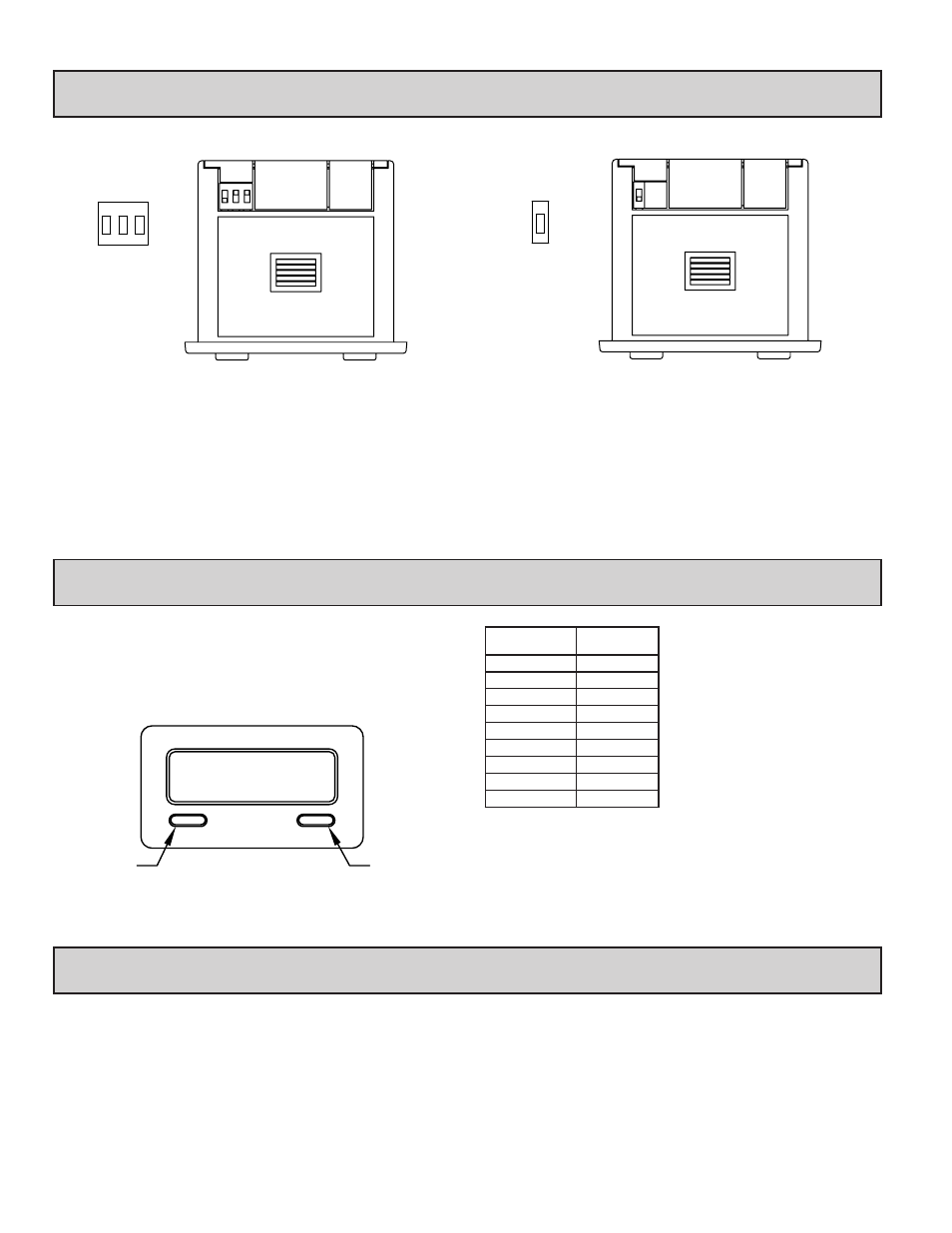

2.0 s
etting the
dip s
witches
Low voltage input units have 3 DIP switches that must be positioned
appropriately prior to wiring.
High voltage input units have 1 DIP switch to enable or disable the front bezel
keypad.
Rear of Unit
Bottom of Unit
Low Voltage Input Unit
ON
SR
C
SN
K
KEY
EN
KEY
DI
S
LO FREQ
HI FREQ
1 2 3
Rear of Unit
Bottom of Unit
High Voltage Input Unit
ON
KEY
EN
KEY
DI
S
1
Note: Placing the KEY DISABLE/ENABLE DIP switch in the OFF position, disables all front panel keys.
