ettIng the
s
wItches
Normal mode.
Cycle power with the switches as shown in order
to display the Clear Database prompt. Touch the left
side of the display to clear the database; touch the
right side to continue in normal mode. 2 1
ON
4 3 2 1
ON
3 4
s
oftware
/u
nIt
o
PeratIon
CRIMSON SOFTWARE
Crimson software is available as a free download from Red Lion’s website or
it can be purchased on a CD, see “Ordering Information” for part number. The
latest version of the software is always available from the website, and updating
your copy is free.
FRONT PANEL LEDS
There are three front panel LEDs. Shown below is the default status of
the LEDs.
LED INDICATION
RED (COM)
FLASHING Communications are active.
GREEN (CPU)
STEADY CPU is functioning
ORANGE (PWR)
STEADY Power is applied.
TOUCHSCREEN
This operator interface utilizes a resistive analog touchscreen for user input.
The unit will only produce an audible tone (beep) when a touch on an active
touchscreen cell is sensed. The touchscreen is fully functional as soon as the
operator interface is initialized, and can be operated with gloved hands.
TROUBLESHOOTING YOUR G307K2
If for any reason you have trouble operating, connecting, or simply have
questions concerning your new G307K2, contact Red Lion’s technical support.
For contact information, refer to the front page of this bulletin for phone and
fax numbers.
EMAIL: [email protected]
Web Site: http://www.redlion.net
BATTERY REPLACEMENT
The G307K2 uses one CR2032 coin type lithium battery to maintain the RTC
(real-time clock) and for proper Ethernet download operation. To change the
battery, remove power, cabling, and then the rear cover of the unit. Remove the
old battery from the holder and replace with a new battery*. Replace the rear
cover, cables, and re-apply power. Set the RTC to the proper date and time.
* Please note that the old battery must be disposed of in a manner that
complies with your local waste regulations. Also, the battery must not be
disposed of in fire, or in a manner whereby it may be damaged and its contents
come into comtact with human skin.
CAUTION: The circuit board contains static sensitive
components. Before handling the operator interface without the
rear cover attached, discharge static charges from your body by
touching a grounded bare metal object. Ideally, handle the
operator interface at a static controlled clean workstation. Also,
do not touch the surface areas of the circuit board. Dirt, oil, or
other contaminants may adversely affect circuit operation.
PROG
FORCE
DH485
RS232
RUN
FLT
BATT
RUN
SLC 5/03 CPU
REM
VDC
120/240 VAC
VAC NEUT
PWR OUT COM
PWR OUT +24
CHASSIS GND
POWER USER
POWER
G3 Comms Cable
PT# CBLxxxxx
Kadet Adapter
PT# CBLADKxx
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions.

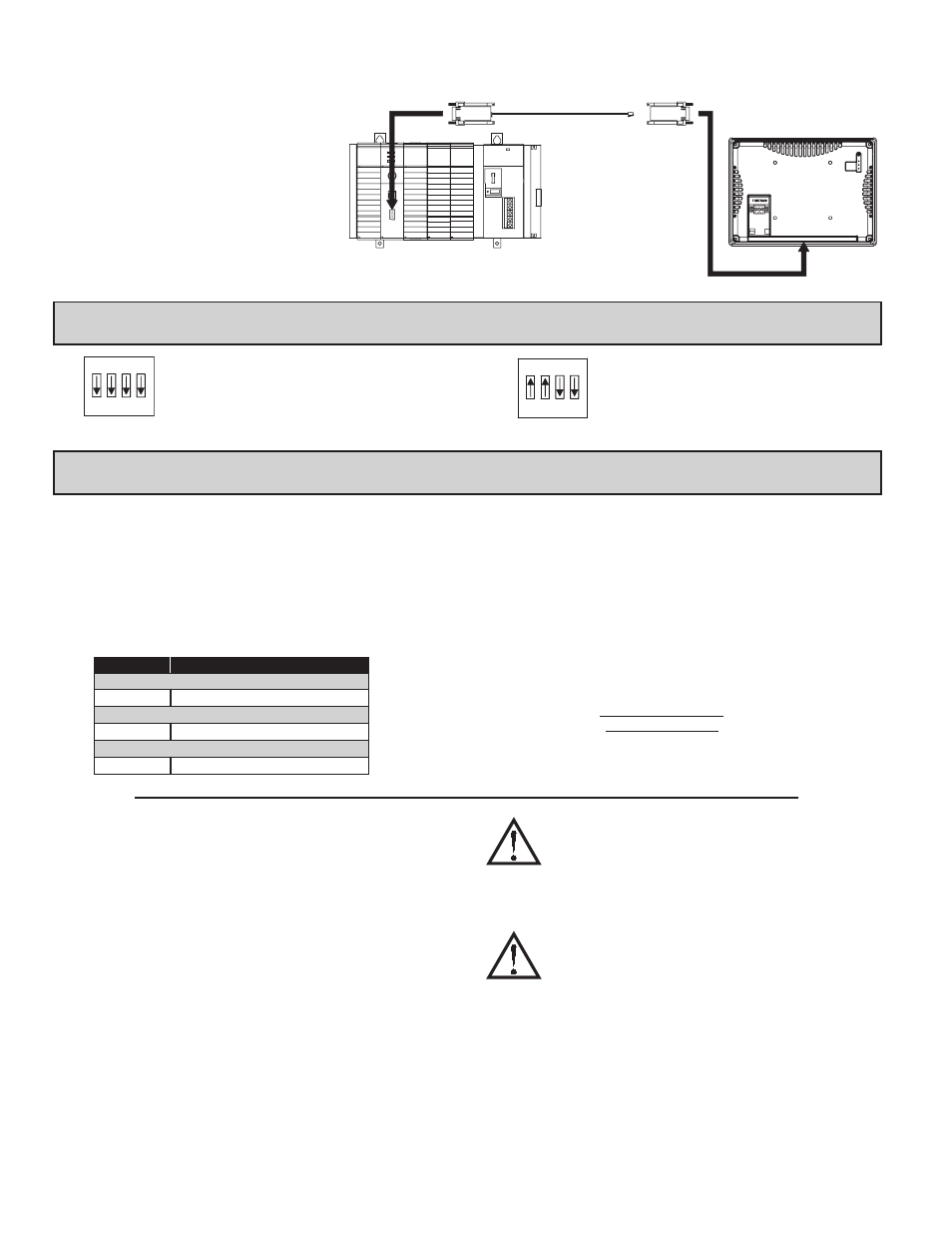

DEVICE COMMUNICATIONS
Several adapters are available which allow direct connection via
Red Lion communications cables. For a list of adapters and cables,
please visit http://www.redlion.net/support/downloads.html.
