Wiring, Wiring connections, Input connections – Red Lion GMUIN4 Universal Input Module User Manual

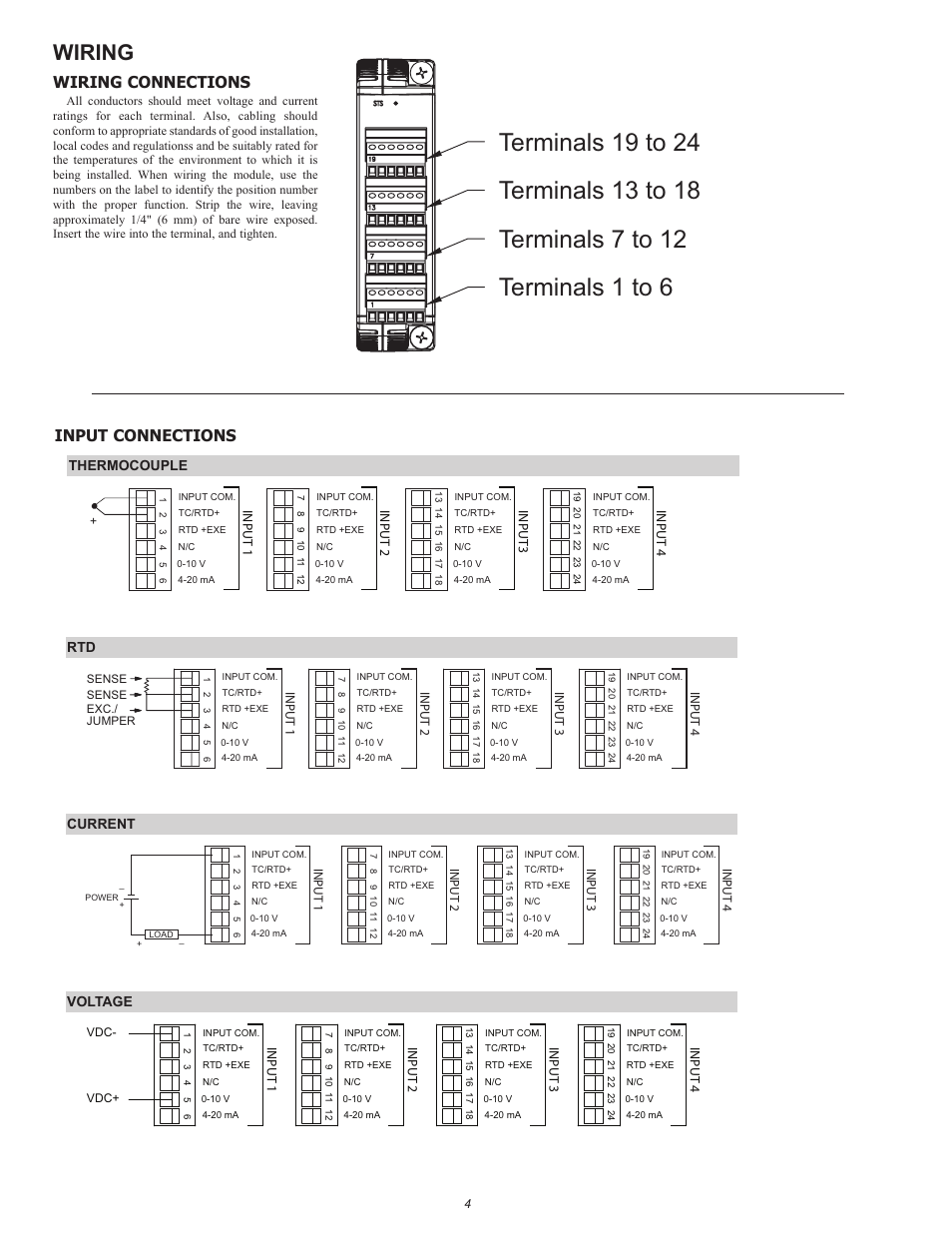

Page 4: Thermocouple voltage current
