Chapter 4 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 33
0803-044

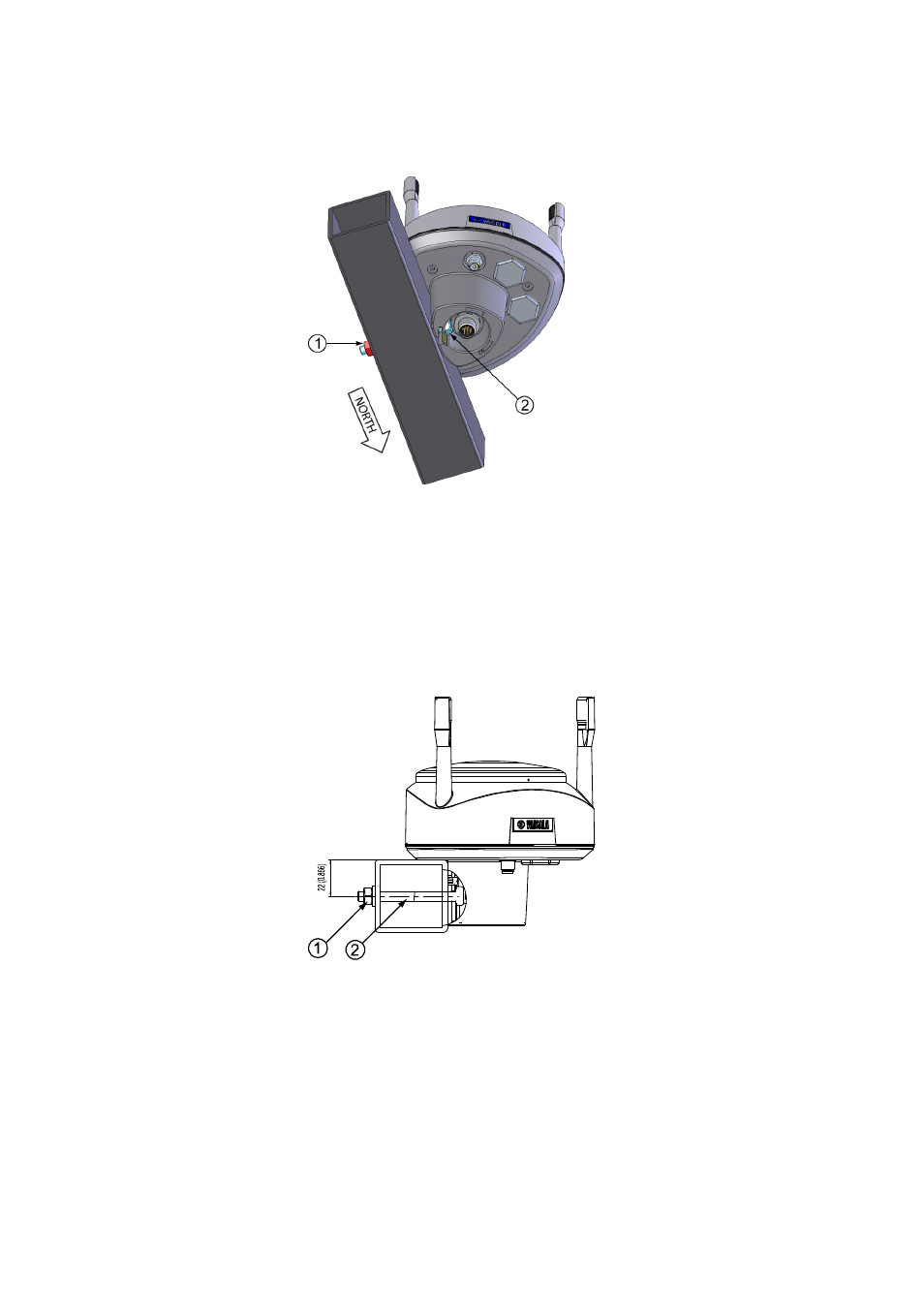

Figure 13
Mounting WMT52 to Cross Arm
0803-042
Figure 14
Mounting Bolt Location in Cross Arm
The following numbers refer to :
1
=
Nut (M6 DIN934)
2
=
Mounting bolt (M6 DIN933)
The following numbers refer to
1
=
Nut (M6 DIN934)
2
=
Mounting Bolt (M6 DIN933)
