Chapter 4 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 31
0803-043

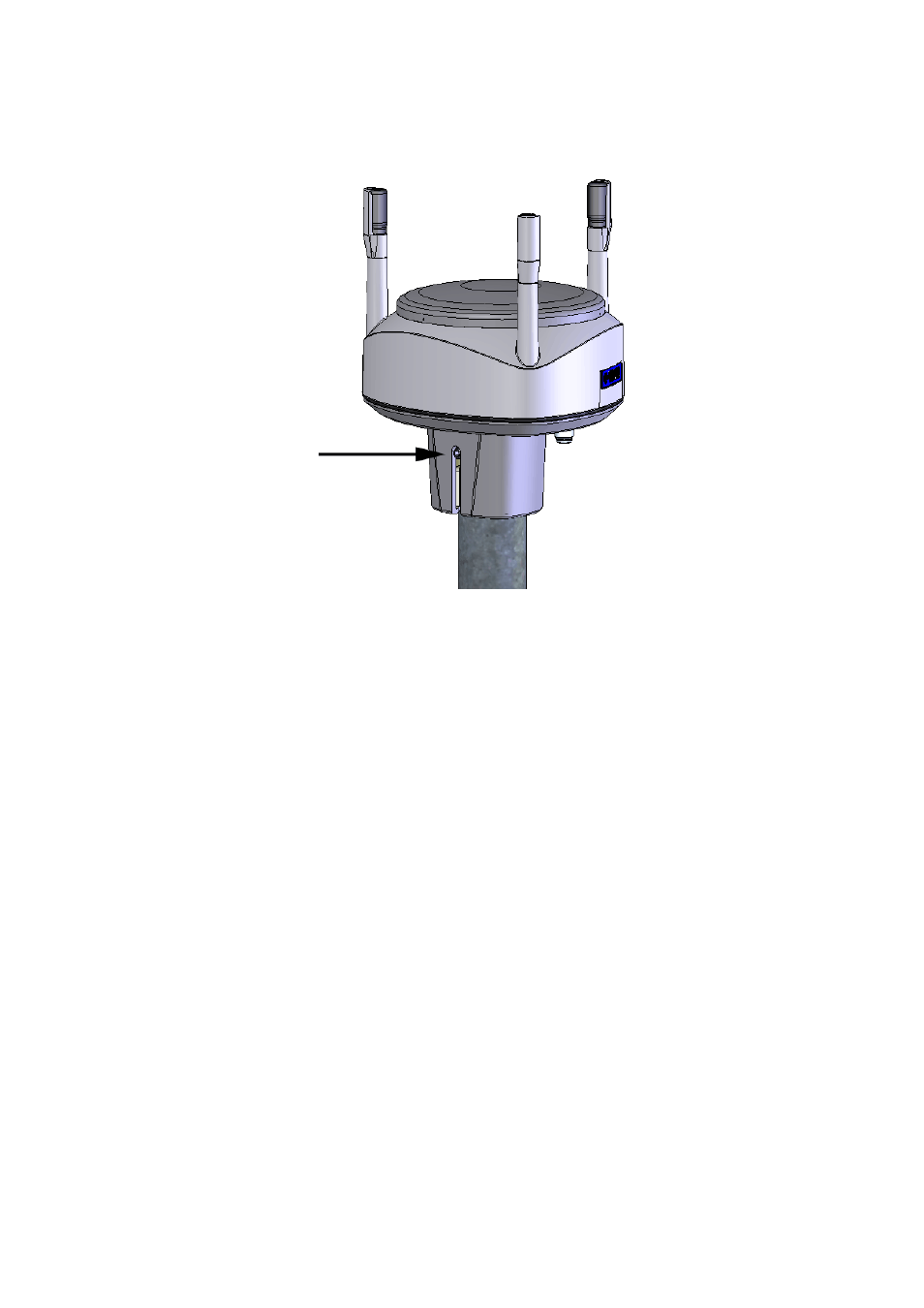

Figure 11
Location of Fixing Screw
Mounting with Optional Mounting Kit
1.
Insert the mounting kit adapter to the sensor bottom in the position
shown in the picture.
2.
Turn the kit inside the bottom firmly until you feel that the adapter
snaps into the locked position.
3.
Mount the adapter to the pole mast, do not tighten the fixing screw
(provided).
4.
Align the sensor in such a way that the arrow points to north.
5.
Tighten the fixing screw ot the mounting adapter to fix the adapter
firmly to the pole mast.
