Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 17
Ultrasonic Wind Sensor WMT52 Components
0803-041

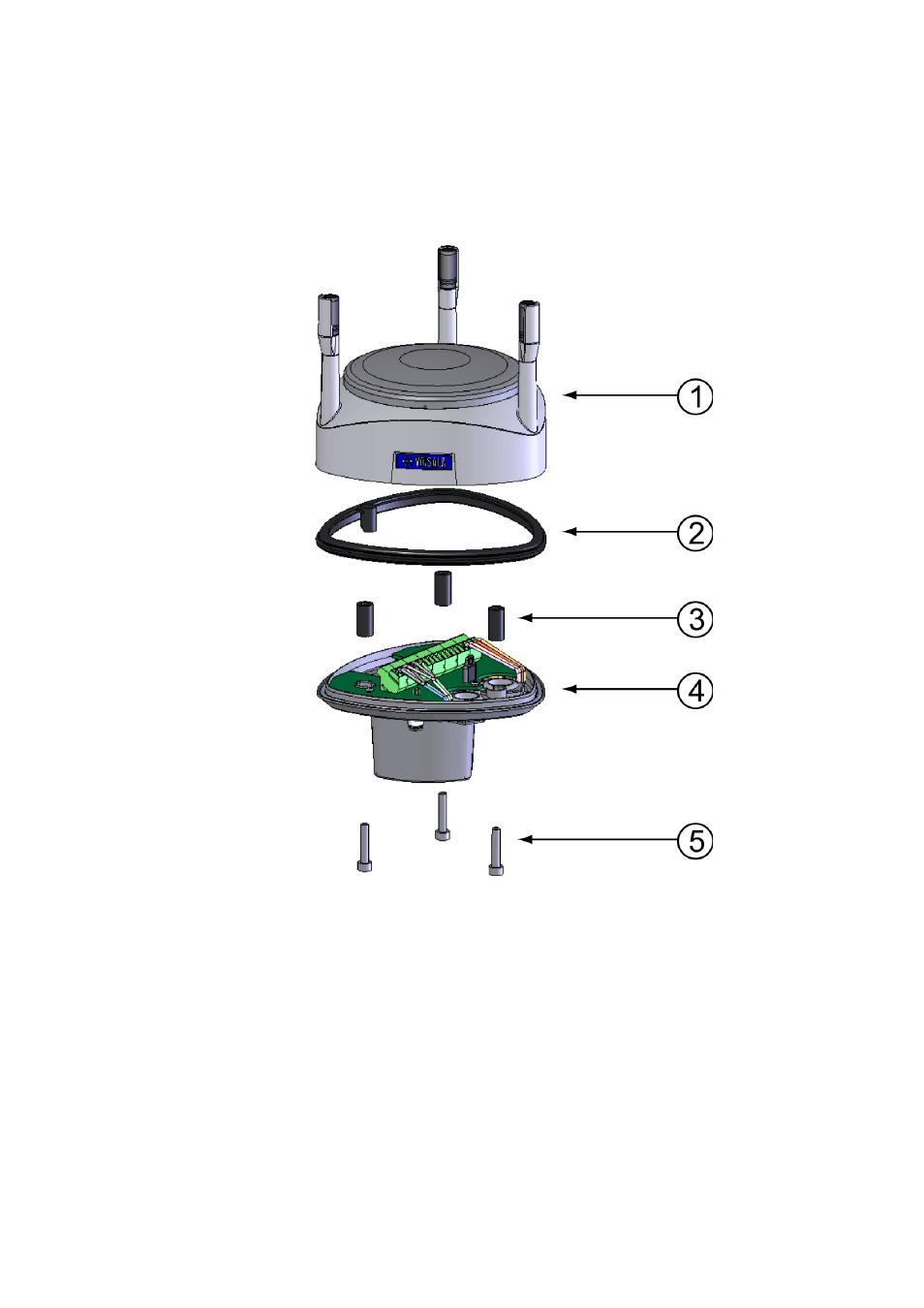

Figure 2
WMT52 Components
The following numbers refer to
:
1
=
Top assembly
2
=
Silicon gasket
3
=
Spacers
4
=
Bottom assembly
5
=
Allen screws
