NOTE When the temperature difference between the duct and the air outside the
duct is significant, the supporting bar must be installed as deep in the
duct as possible. This helps to prevent errors caused by heat conduction
in the bar and cable.
Pressure-Tight Swagelok Installation Kits (for
HMT317)
RH Probe Installation
0508-032

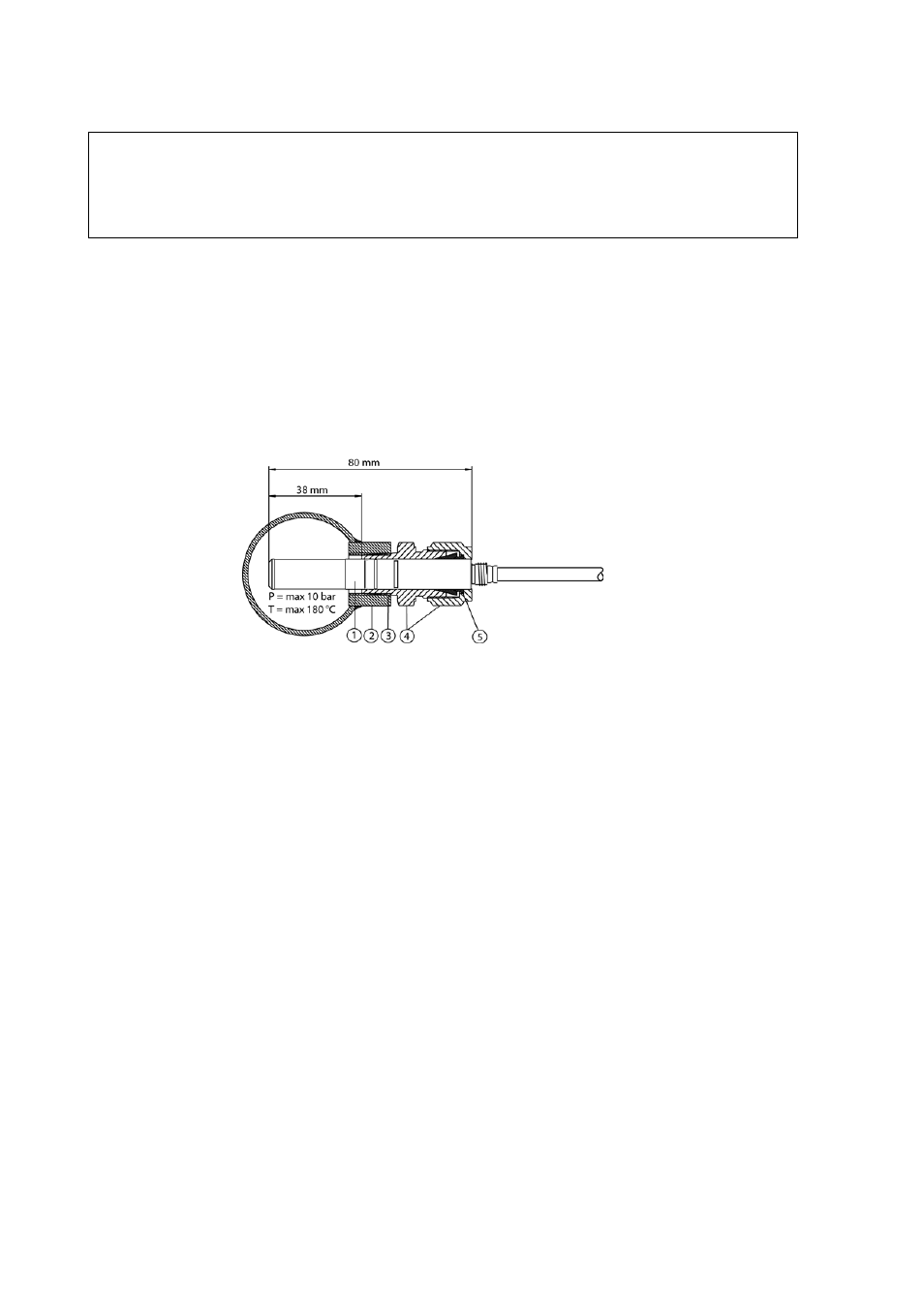

Figure 27 Swagelok Installation Kit for RH Probe
The following numbers refer to Figure 27 above:
1 = Relative humidity probe
2 = Duct
connector
3 = ISO3/8" or NPT1/2" thread
4 = Swagelok
connector
5 = Ferrules
