Components

0507-032

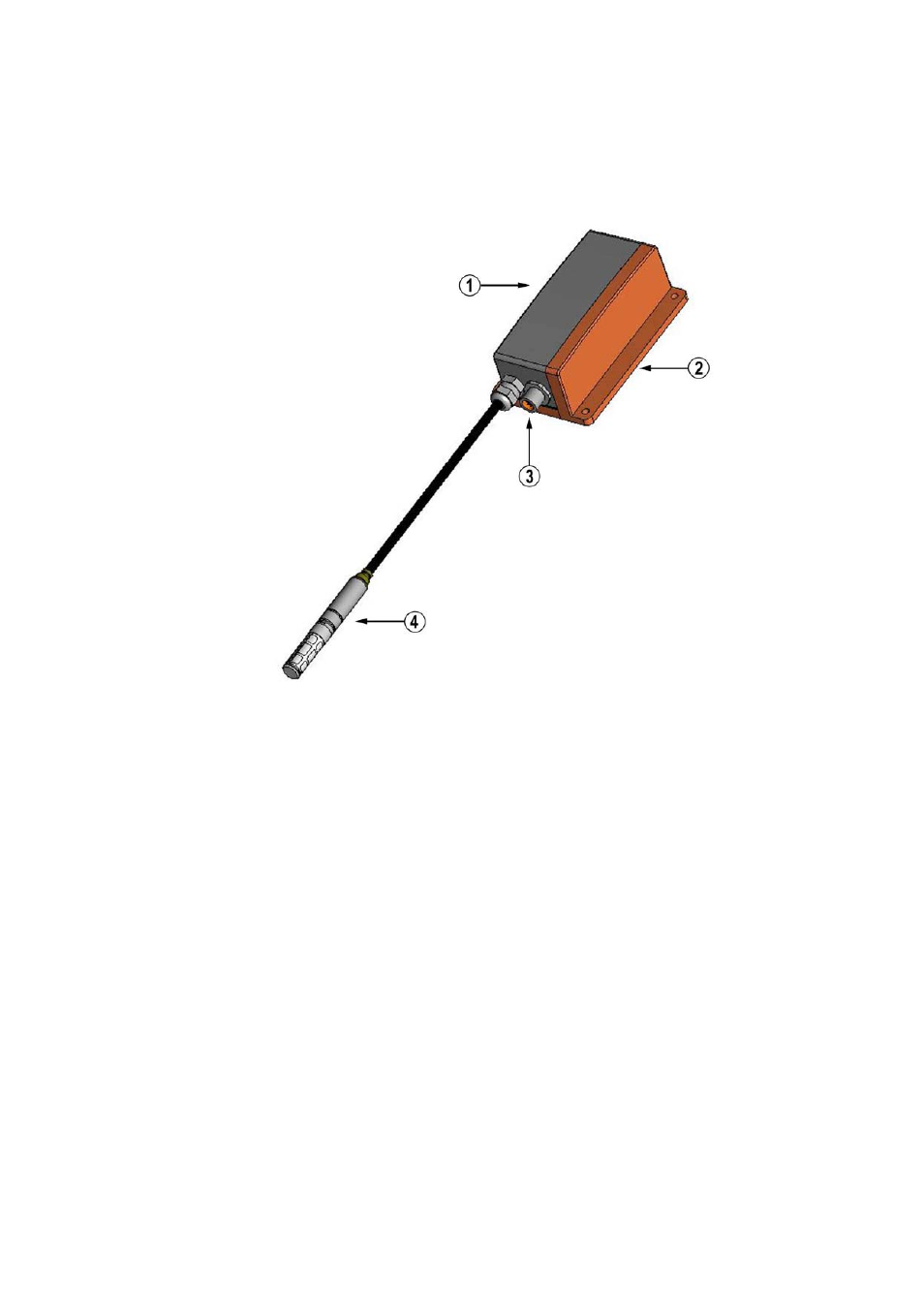

Figure 1

HMT310 Components

The following numbers refer to Figure 1 above:

1 = Transmitter

unit

2 = Mounting plate (smaller mounting plate also available)
3 = Connector for signal output and power supply. Available with

female connector with 5 m cable or screw terminal connector.

4 = Probe
