APPENDIX A
PROBE INSTALLATION KITS AND
INSTALLATION EXAMPLES
This appendix describes the available probe installation kits and provides
some installation examples.
Duct Installation Kits (for HMT313/317/315)
Duct installation kit includes a flange, a sealing ring, a supporting bar
and probe attaching part for the probe and screws for attaching the flange
to the duct wall. Vaisala order codes: 210697 (for HMT313) and 210696
(for HMT315, no supporting bar).
0508-028

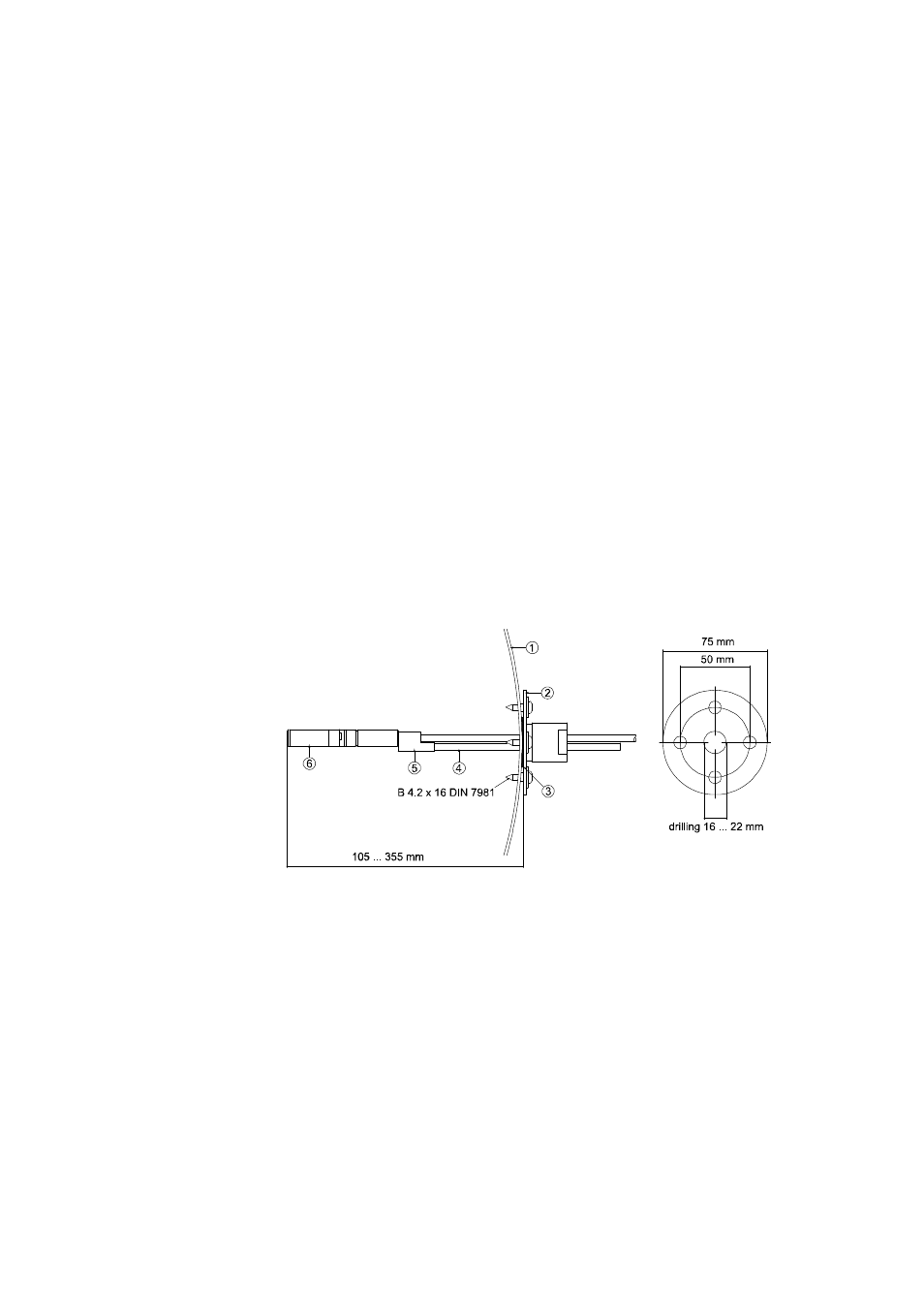

Figure 26 Duct Installation Kit
The following numbers refer to Figure 26 above:
1 = Duct wall
2 = Flange
3 = Sealing
ring
4 = Supporting bar (not included in the kit for HMT315)
5 = Probe attaching part (to be fixed with the supporting bar)
6 = Relative humidity probe
