Adjustment with HM70
You can check and adjust the HMT130 relative humidity measurement
with the HM70 Hand-Held Humidity and Temperature meter. A HM70-
connection cable is needed. Vaisala order code: 211339.
There are four types of adjustments available: field checking and
adjustment using a calibrated reference probe, one-point adjustment
using a calibrator, two-point adjustment using a calibrator, and LiCl-
NaCl adjustment.
Follow the first seven steps and continue according to the chosen
adjustment method.
0505-351

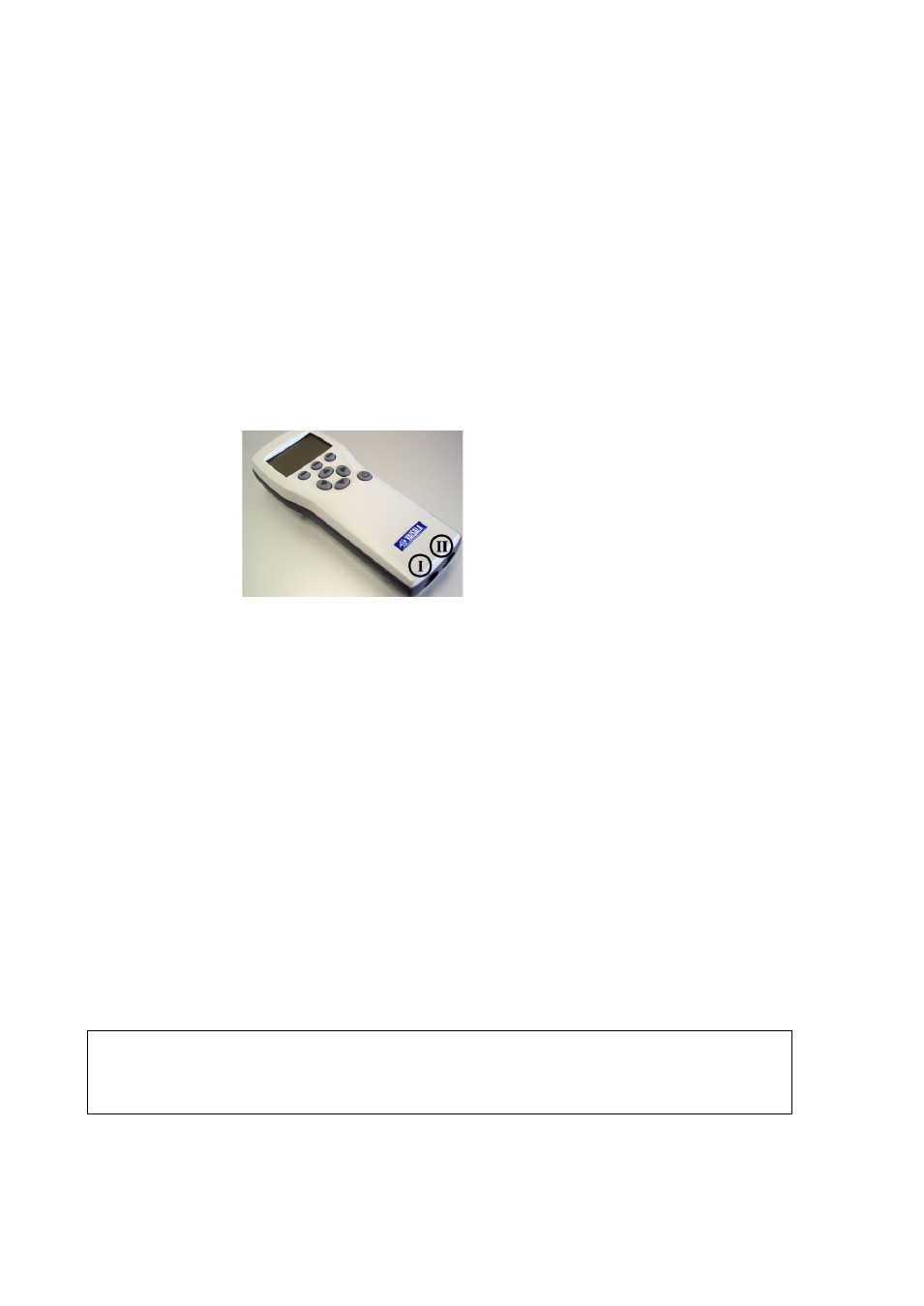

Figure 17 Location of the MI70 Probe and Cable Connector
Ports
1. Connect the 211339 HM70-connection cable to the SERVICE PORT
connector on the HMT130 motherboard (see Figure 11 on page
23).
2. Connect the other end of the connection cable to either of the
HM70's connector ports located on the bottom of the indicator (see
Figure 17 above).
3. Turn on both devices (or just HM70, in case that HMT130 is on
continuously).
4. The reading of the transmitter is shown on the top or middle row of
the indicator display, depending on which connector port the
connection cable is connected to.
5. Press the ADJ button on the HMT130 motherboard to open the
adjustment mode. Both LEDs on HMT130 motherboard remain in
OFF state and text "Starting adjustment mode for HMP110" is
shown at the MI70 display.
NOTE In case of using a HMT130 transmitter with display option the text
"MI70 adjustment mode" is shown at the upper row of HMT130
display.
