User's Guide _______________________________________________________________________
20 ___________________________________________________________________ M211280EN-B
Probe Assembly with Duct Installation Kit
0505-177

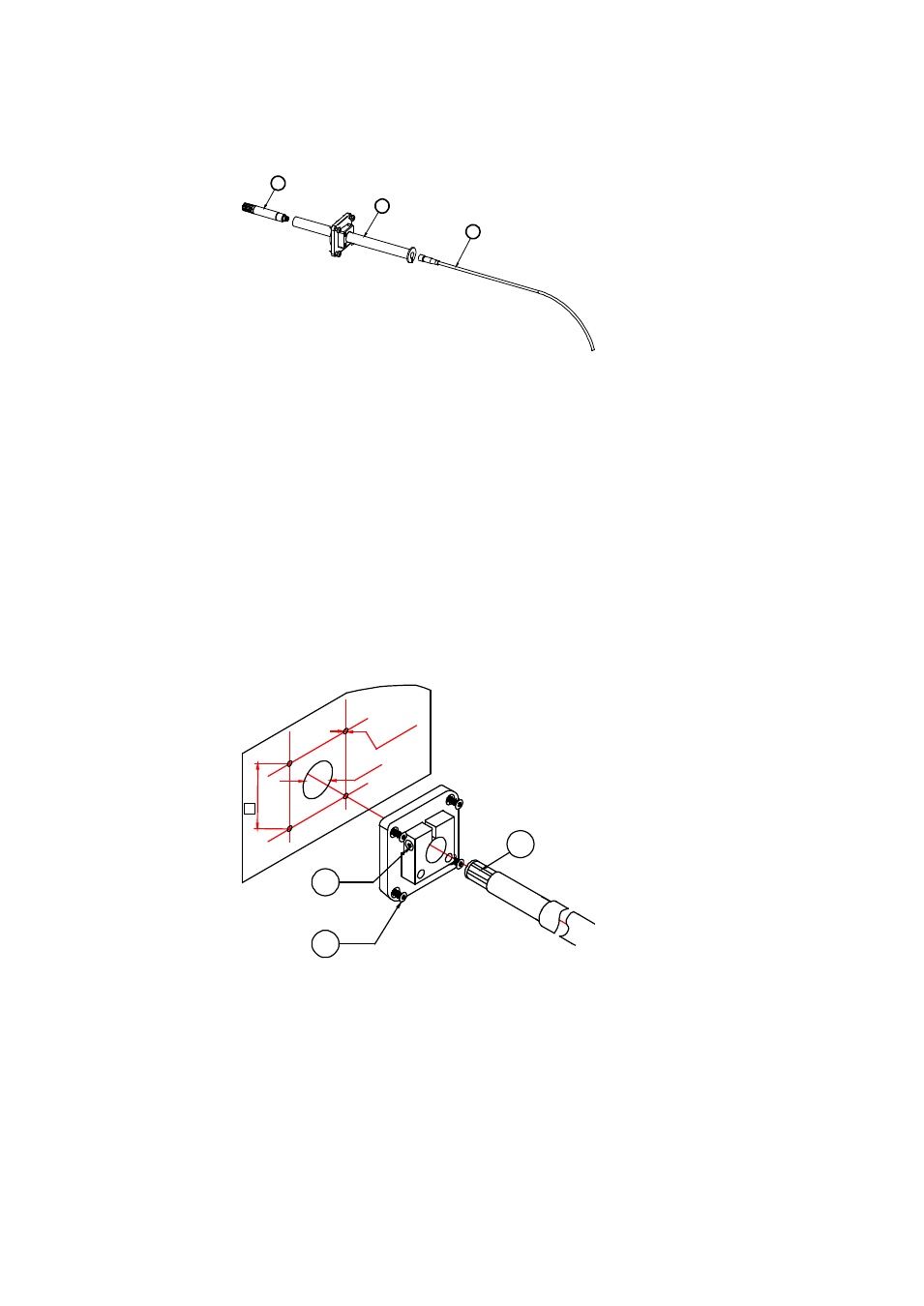

Figure 7 Assembly of the Probe with Duct Installation Kit
The following numbers refer to Figure 7 above:
1
= HMP110
2 = Duct installation kit
3 = Probe cable
1. Slide the probe cable through the duct installation kit plastic pipe.
2. Attach the probe cable to the HMP110 Humidity Probe.
3. Attach probe assembly to the duct.
Drilling Instructions for Duct Installation Kit
0505-178
Figure 8 Drilling Instructions
The following numbers refer to Figure 8 above:
1
= Mounting screw
2 = Tension screw
3 = HMP110 assembled in duct installation kit plastic pipe
2
1
3
42
1
2
3
Ш24
Ш3.2
