Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 15
CHAPTER 3
INSTALLATION
Opening the Transmitter Cover
1.
If the transmitter is not mounted already, hold it against a flat
surface.
2.
Push on the cover with your thumb, and pull the bottom part of the
cover towards yourself.
1301-019

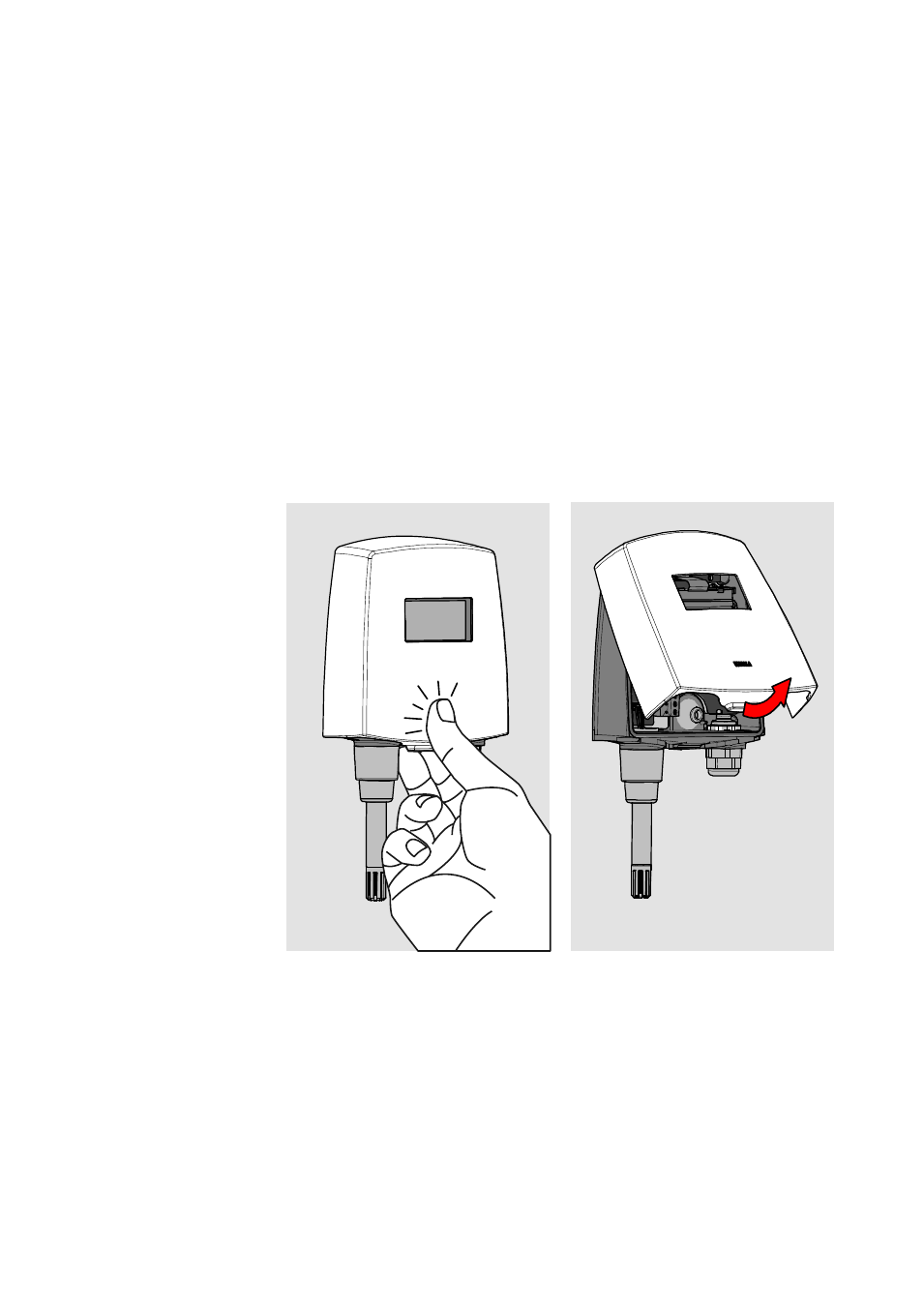

Figure 2
Opening the Transmitter Cover
