Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 17
Installation with Rain Shield
The installation kit with rain shield includes a metal mounting plate and
a rain shield for the transmitter. Vaisala order code: 215109.
1011-161

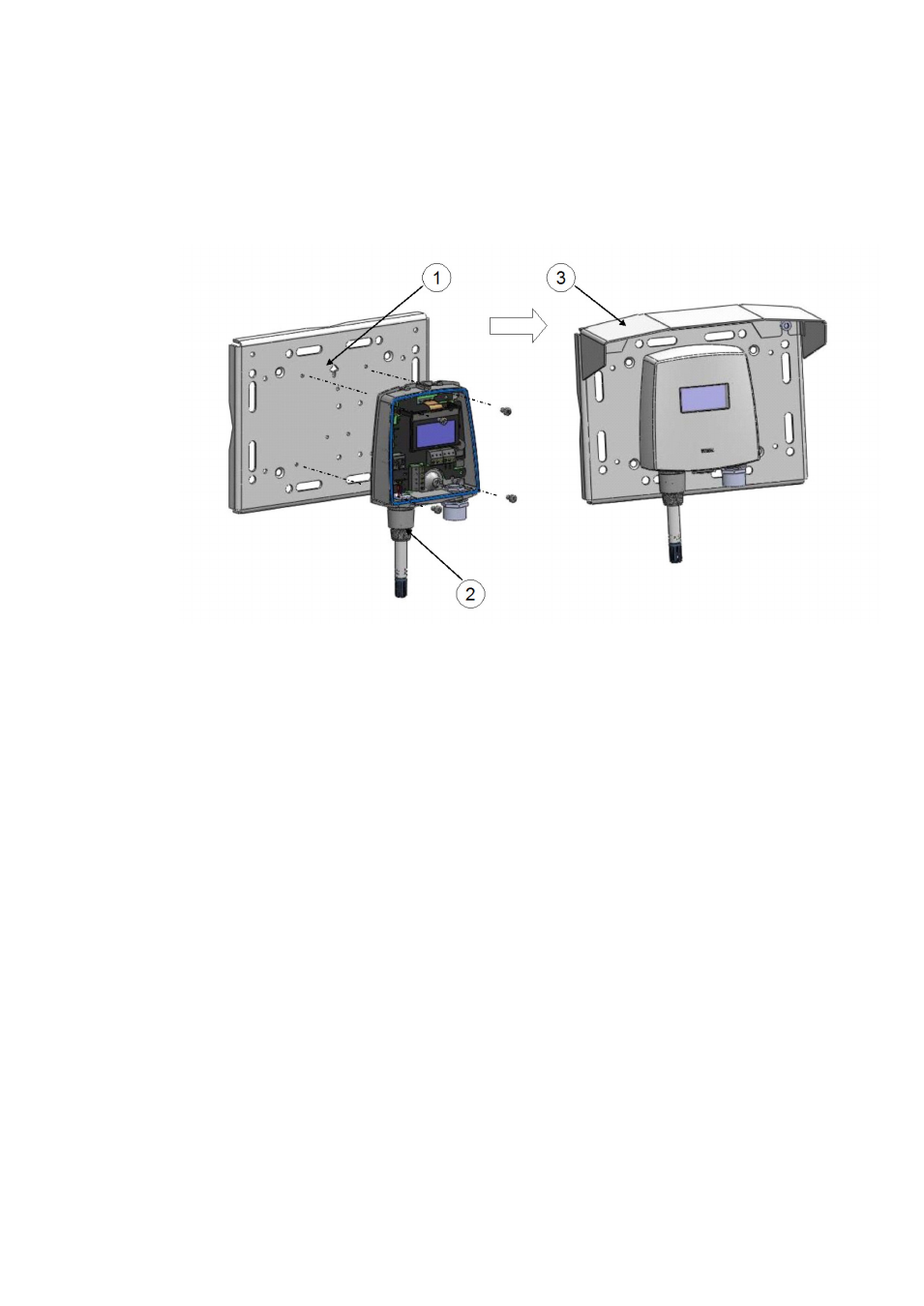

Figure 4
HMT130 Installation with Rain Shield
1.
Fasten the metal mounting plate to the wall or pole with screws
(see Figure 4 above). Note the arrow on the mounting plate. Attach
the mounting plate with the arrow pointing upwards.
2.
Drill holes for the screws in the HMT130 frame, and fasten
HMT130 Humidity and Temperature Transmitter to the metal
mounting plate with four (M4) screws.
3.
Fasten the rain shield to the metal mounting plate with two (M6)
mounting screws.
