4
Coromant
Capto ®
ISO/CAT
BIG PLUS MAS BT
HSK CAT-V
3,5
3
2,5
2
1,5
1
0,5
0
-0,5
-1
-1,5
-2
0 0,02 0,04 0,06 0,08 0,1 0,12 0,14 0,16 0,18 0,2 0,22 0,24 0,26

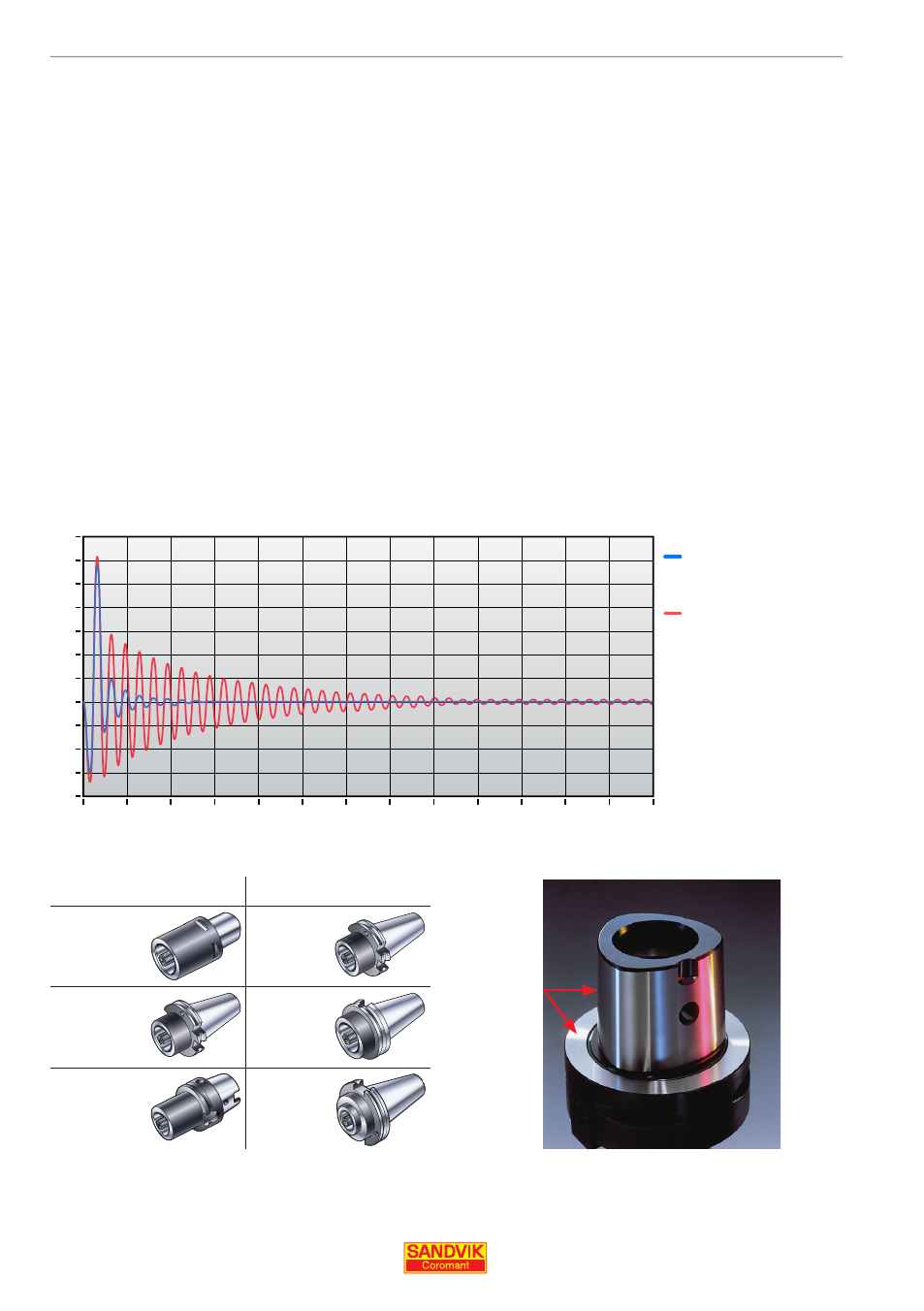

1. Introduction
Review of fundamentals
Inside a dampened tool is a pre-tuned dampening system that
consists of a heavy mass, supported by rubber spring elements. Oil
is added to increase the dampening.
The graph shows the difference in vibration dampening between an
undampened and a dampened solution.
For long tool overhang and flanges, two-face contact between the
spindle and the tool holder is recommended.
Coromant Capto ® coupling - two
face contact
Two face contact Single face contact
Silent
Standard
3,5
3
2,5
2
1,5
1
0,5
0
-0,5
-1
-1,5
-2
0 0,02 0,04 0,06 0,08 0,1 0,12 0,14 0,16 0,18 0,2 0,22 0,24 0,26
