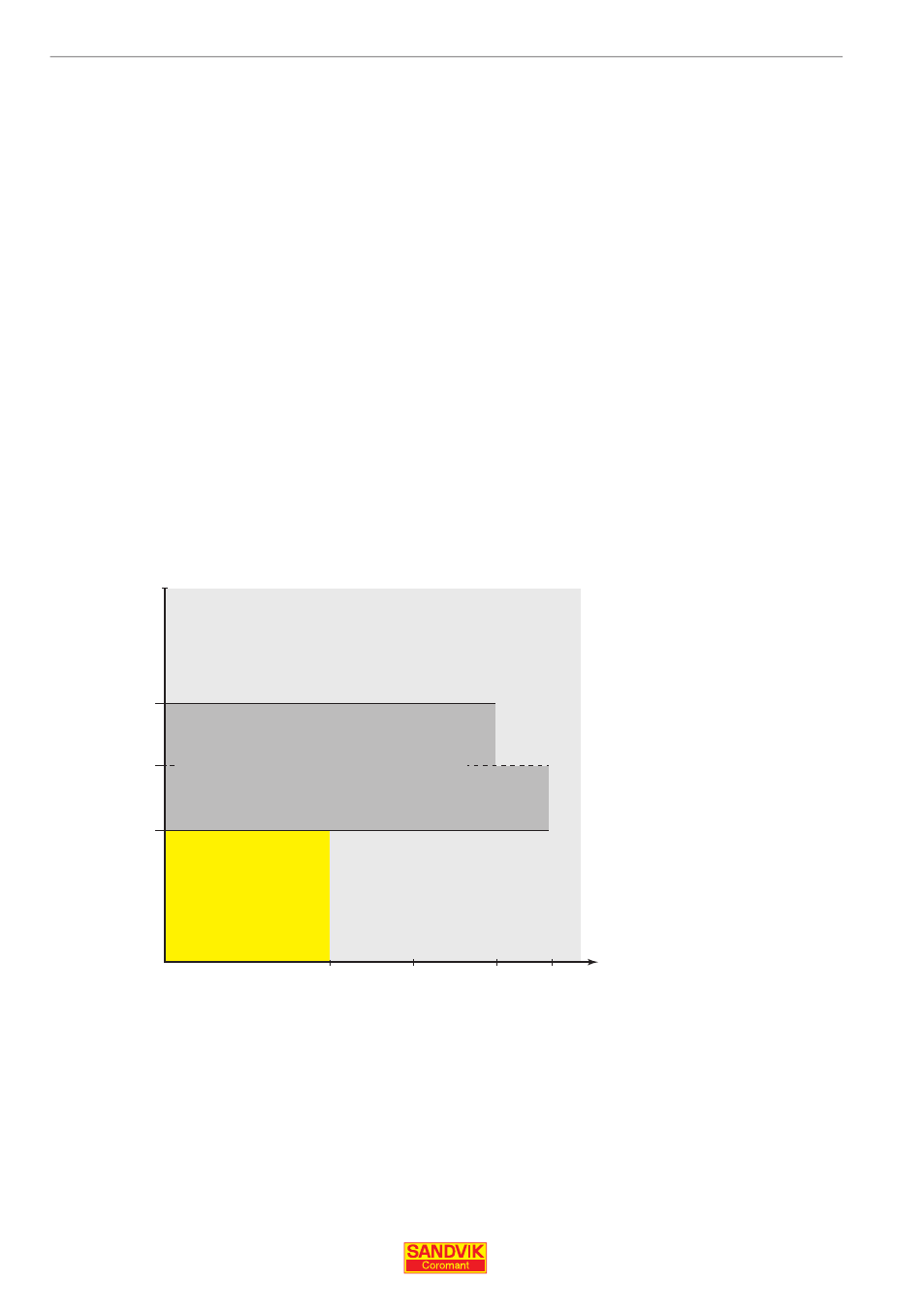

5 × BD 6 × BD 7 × BD 8 × BD
3.000 80
2.500 63
2.000 50
1.500 40
40
32
25
20
2. Milling
• Dampened solutions from 20–40 mm (0.787-1.575 inch) with
integrated CoroMill 390 milling cutters are available in the
standard assortment
• From 40 mm (1.575 inch) and above, there are dampened
adaptors with Coromant Capto sizes C4–C8, with coolant through
arbor mounting available as standard. Combined with a basic
holder, the adaptor can be an assembled dampened tool for most
machine interfaces
• For machines with HSK couplings; integrated adaptors are
available
Overhang LU/BD
Adapter dia, BD
inch
Engineered products
Coromant Capto® & HSK
adaptors for rotating tools
Dampened adaptor for face mills and square
shoulder face mills
CoroMill® 390D
End mill and square
shoulder face mill
mm
