Installation

20

900-0123-01-00 Rev B

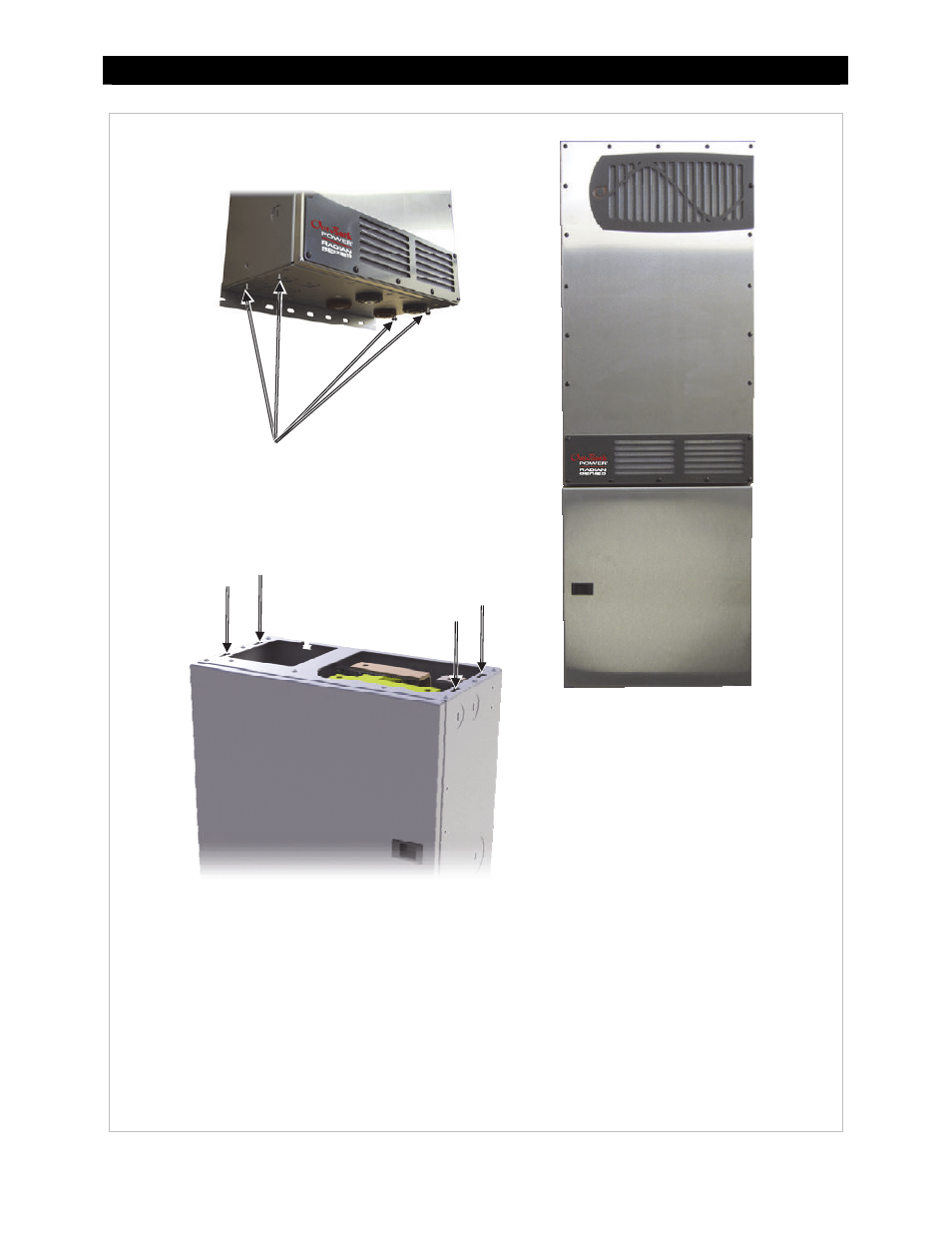

Figure

20

Mounting the GSLC (continued)

Bottom Screws

Keyhole Slots

7.

Realign the GSLC along the bottom of the inverter and slide the mounting screws into the
keyhole slots.

8.

Secure the enclosure to the mounting surface using all four mounting feet holes.

9.

Using the bolts provided on the Radian inverter’s battery terminals, connect the terminals to
the GSLC’s inverter bus bars. Tighten to the value shown in Table 1 on page 13. For more
information on the Radian terminals, see the Radian Series Inverter/Charger Installation Manual.)

10. Leave the door and interior cover removed until all components have been installed and all

wiring is complete.

...continued from the previous page.

Keyhole Slots
