Installation

12

900-0123-01-00 Rev B

Remove Top Cover

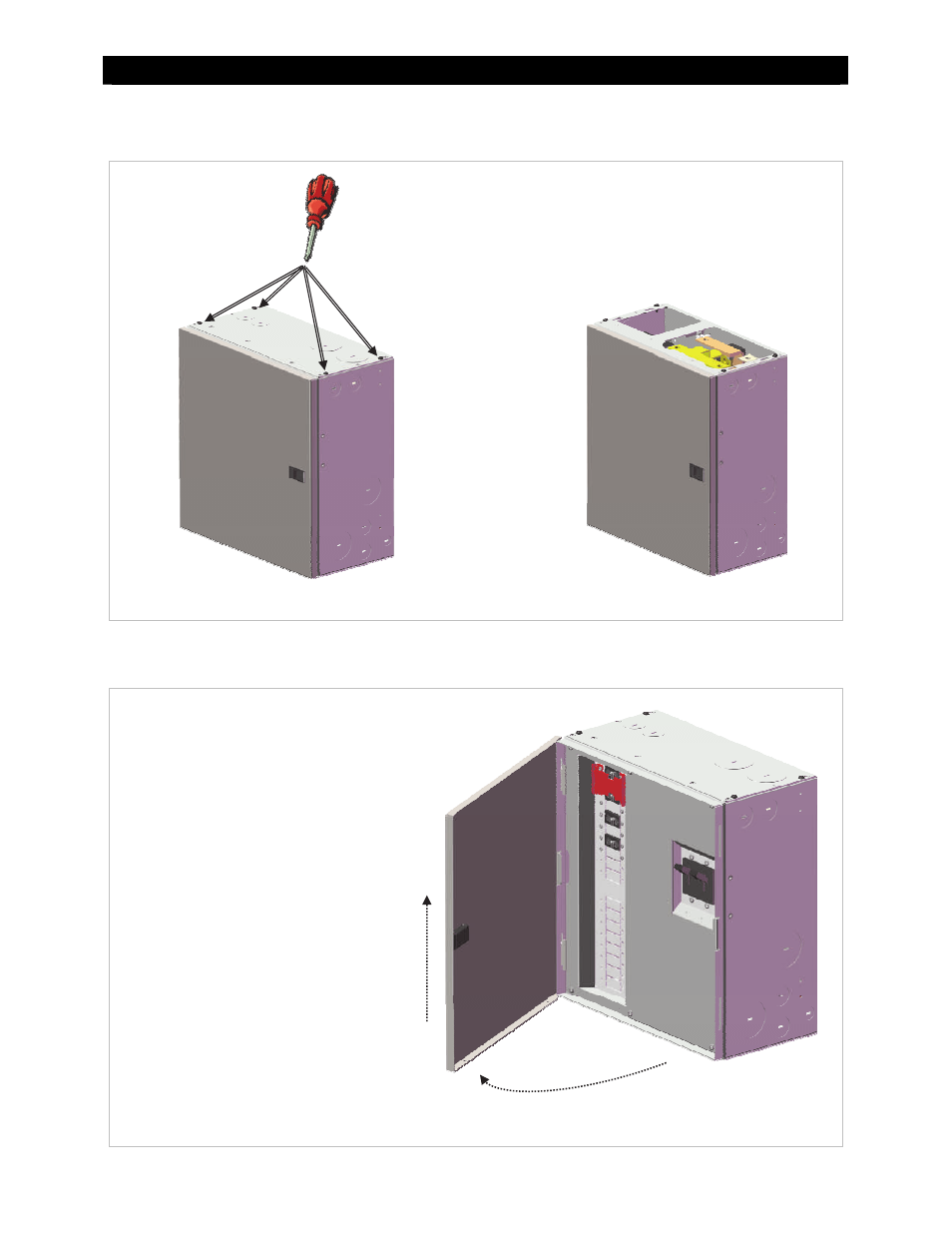

Figure 11

Removing the Top Cover from the GSLC

Remove Front Door

Figure 12

Removing the Front Door from the GSLC

Lift up to remove.

To Remove the Front Door:

1.

Open the door to about 90 degrees.

2.

Lift the hinges out of the slots at the
inside edge.

Open to 90 degrees
(shown partly open)

To Remove the Top Cover:

1.

Remove the four screws; one in each corner.

2.

Lift the top off the enclosure.

Enclosure with

Top Removed
