Installing dc shunts, Assembly – Outback Power Systems GS Load Center Installation Manual User Manual
Page 19

Assembly
900-0123-01-00 Rev B
17
Installing DC Shunts

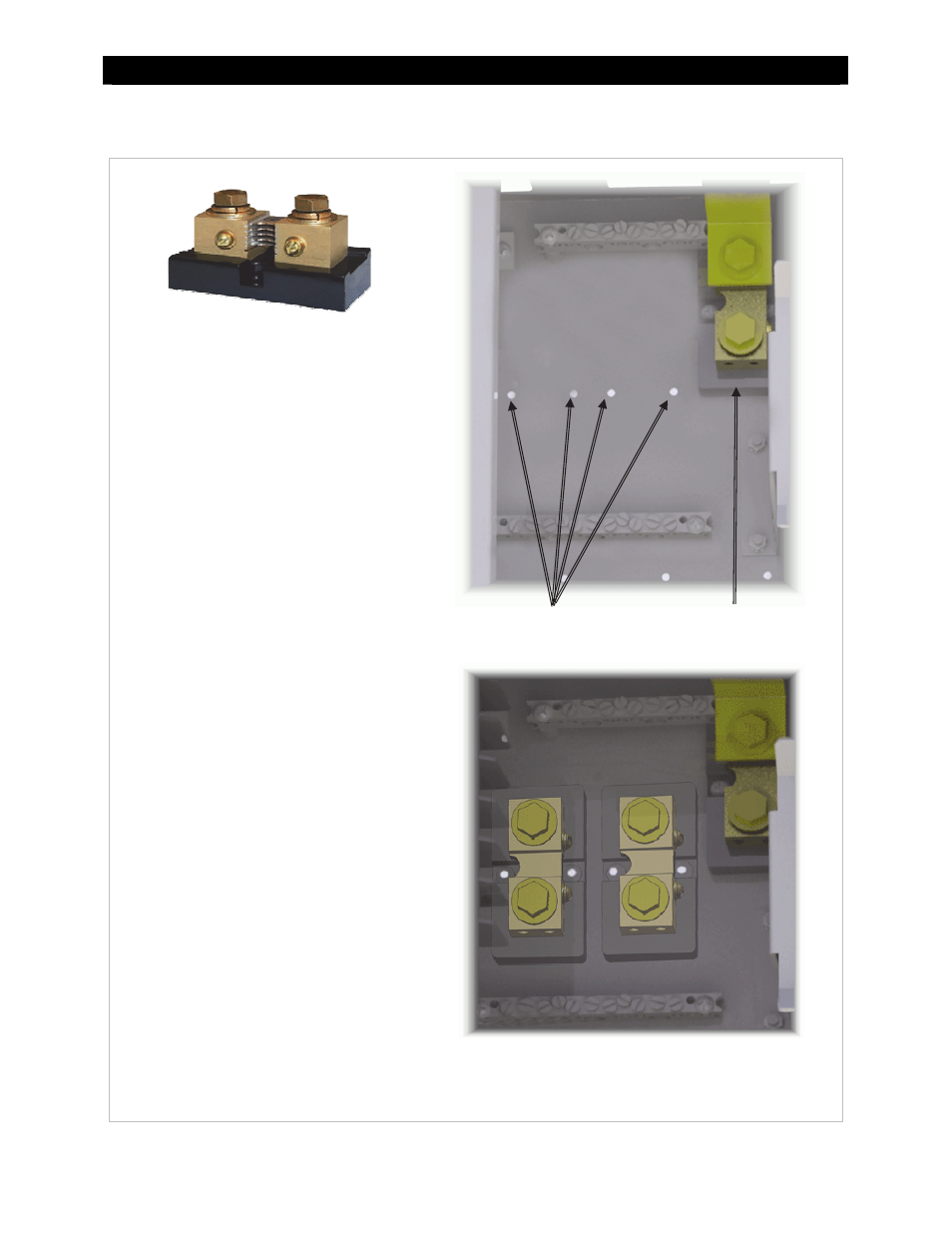

Figure 18
DC Shunts
A single 500 Adc/50 mV shunt is
included with the GSLC. Up to two
more shunts can be installed as
needed. These shunts are used in
conjunction with the FLEXnet DC
battery monitor. See page 25 for more
instructions on wiring.
To mount DC Shunts:
1.
Four mounting holes are located to the
lower left of the first shunt. Center
each shunt across one pair of
mounting holes. These should line up
with the mounting holes built into
each shunt.
2.
Using the screws included with the
shunt, attach each shunt to the
GSLC enclosure.
3.
Tighten the screws until secure, but do
not over-tighten.
NOTE: The GS-SBUS can be
purchased and installed to
connect the three shunts
together. See Figure 27 on
page 26.
Mounting Holes for
Additional Shunts
Pre-installed Shunt
Additional Shunt Placement
