Installing Inverter Main Disconnects

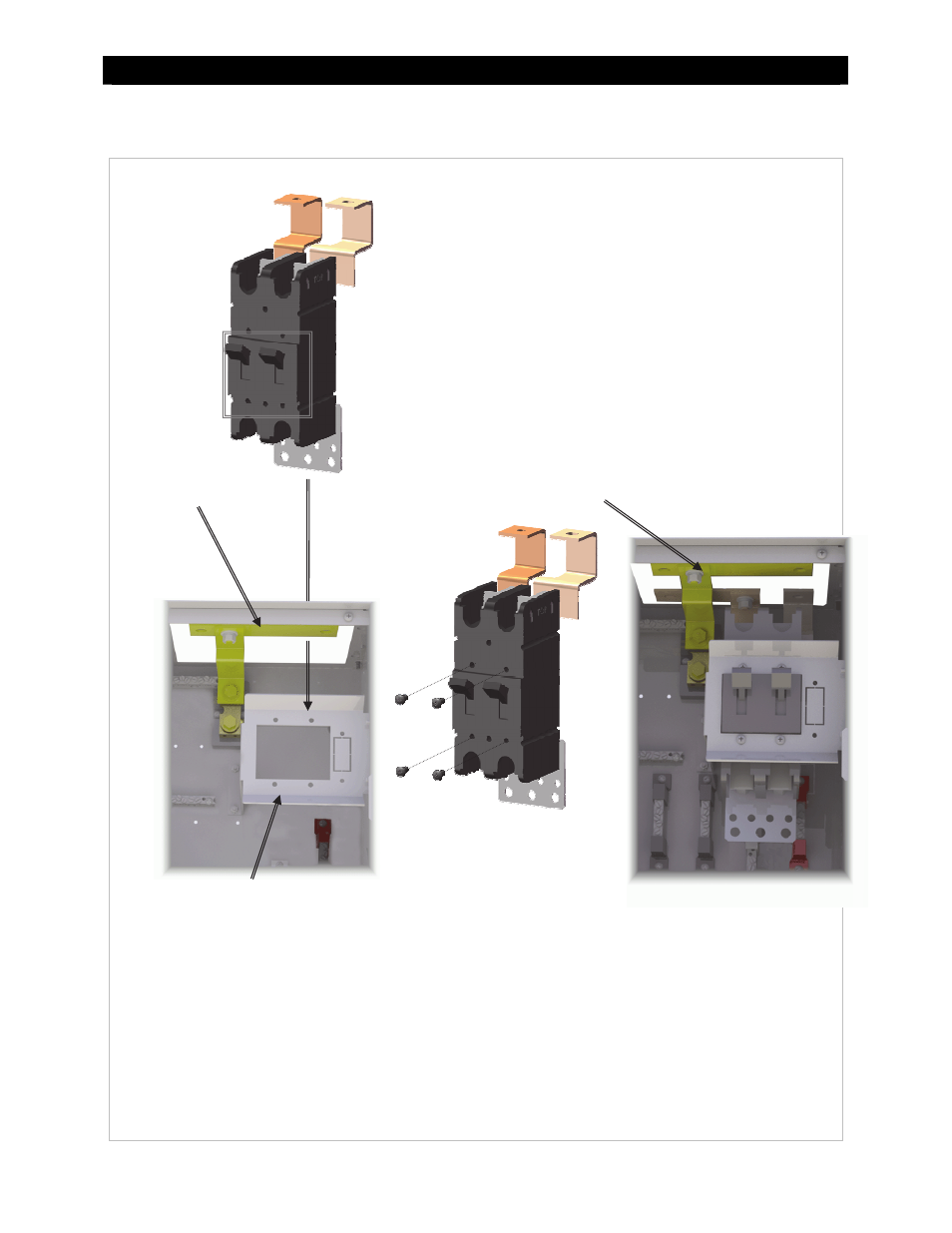

Figure
17
Inverter Main Disconnects
To mount the inverter disconnects:
1.
If the negative top bar is installed, loosen or remove it.
2.
Slide the disconnect assembly through the opening in the top
of the GSLC and place it behind the premounted bracket.
Center the disconnect assembly so that the raised area around
the switch protrudes through the bracket. It may be necessary
to hold the assembly in place by hand.
3.
Take the mounting screws provided with the circuit breaker
and insert them from the outside into the GSLC bracket.
4.
Tighten until secure, but do not over-tighten.
5.
Reattach the negative top bar. Tighten to the value shown in
Table 1 on page 13.
These instructions assume that the GSLC has not yet been mounted to the Radian
inverter and that the top is open. If the GSLC’s top is closed or inaccessible, remove the
premounted bracket. Attach the disconnect assembly to it. Finally, re-install the bracket.
Premounted bracket
Negative Top Bar
