Installation
Hardware Options
The five versions of the GSLC come with different components already installed.
GSLC, the “basic” or “empty” version, requires almost all components to be installed if they are needed.
Instructions for this product begin on page 13.
GSLC175-120/240 and GSLC175-230, the “AC only” versions, require certain components to be installed if
they are needed. Instructions for these products begin with the DC shunts, on page 17.
GSLC175-PV-120/240 and GSLC175-PV-230, the “fully-loaded” versions, have all components already
present and need only to have external wiring and devices added. Users with either of these versions can
skip to the wiring section on page 23.
Additional AC and DC circuit breakers are available for installation on all models.
The following pages describe the installation of individual items, including the removal of the GSLC
covers. Page 13 lists the hardware requirements for these items.
Instructions for Radian inverter mounting (along with other devices) begin on page 19.
Instructions for installing the FLEXnet DC battery monitor begin on page 26.
Instructions for installing the AC input-output bypass (IOB) assembly begin on page 34.

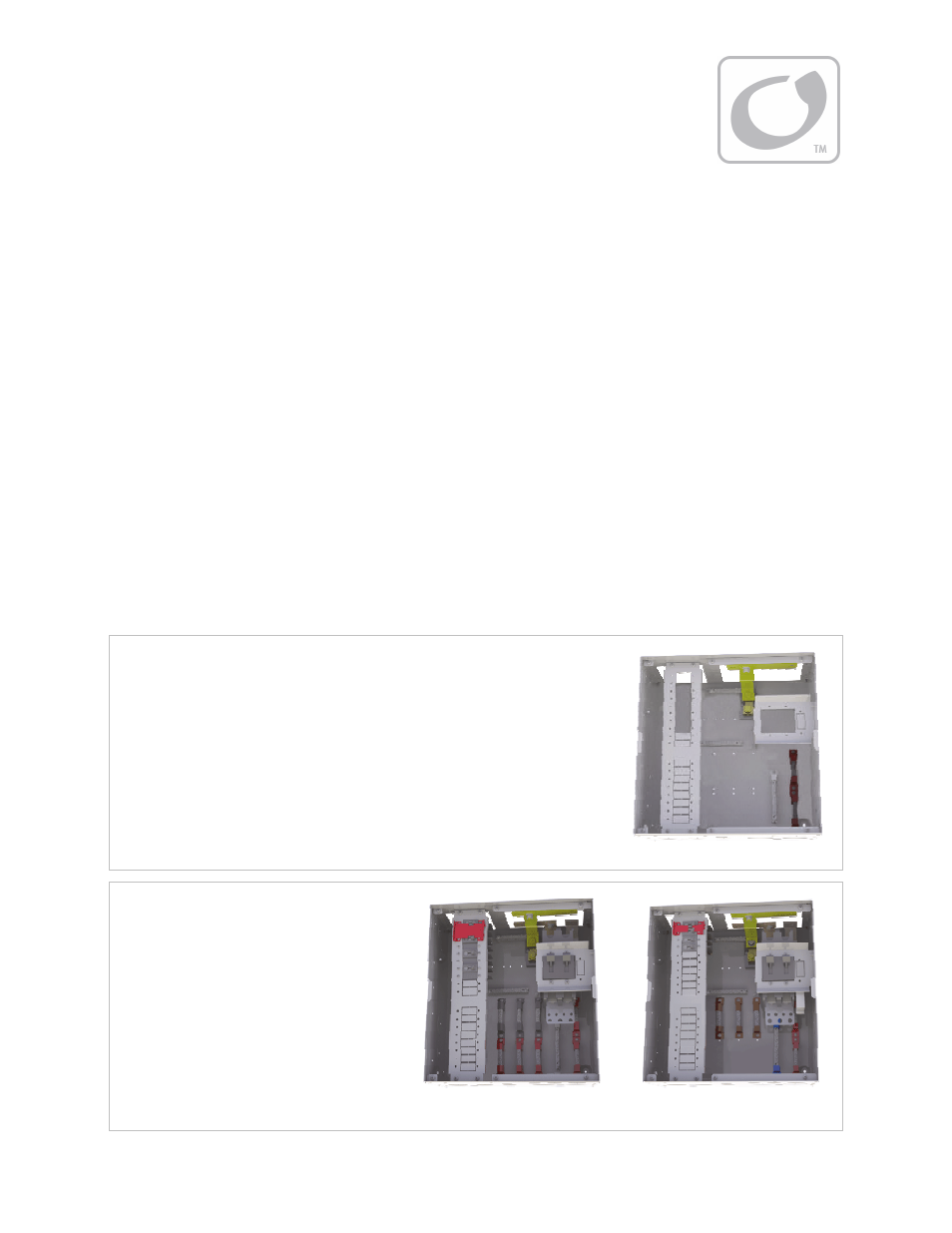

Figure 9
GSLC – Additional Components
Figure 10
GSLC175-120/240 and GSLC175-230 – Additional Components
The following components are sold
separately for the GSLC175-120/240 and
GSLC175-230:
PV Ground Fault Detector-Interrupter
(GFDI)
FLEXnet DC Battery Monitor (see page 26)
Additional DC shunts and GS-SBUS
The following components are sold separately for the GSLC:
Inverter Main Disconnects (required for inverter installations)
DC Positive Cable Plate
AC Maintenance Bypass Assembly
AC Terminal Bus Bars (TBB)
PV Ground Fault Detector-Interrupter (GFDI)
FLEXnet DC Battery Monitor (see page 26)
Additional DC shunts and GS-SBUS
