Assembly

900-0123-01-00 Rev B

13

Remove Interior Cover

In order to make any wiring connections or install components, the interior cover must be removed to
expose the interior of the enclosure.

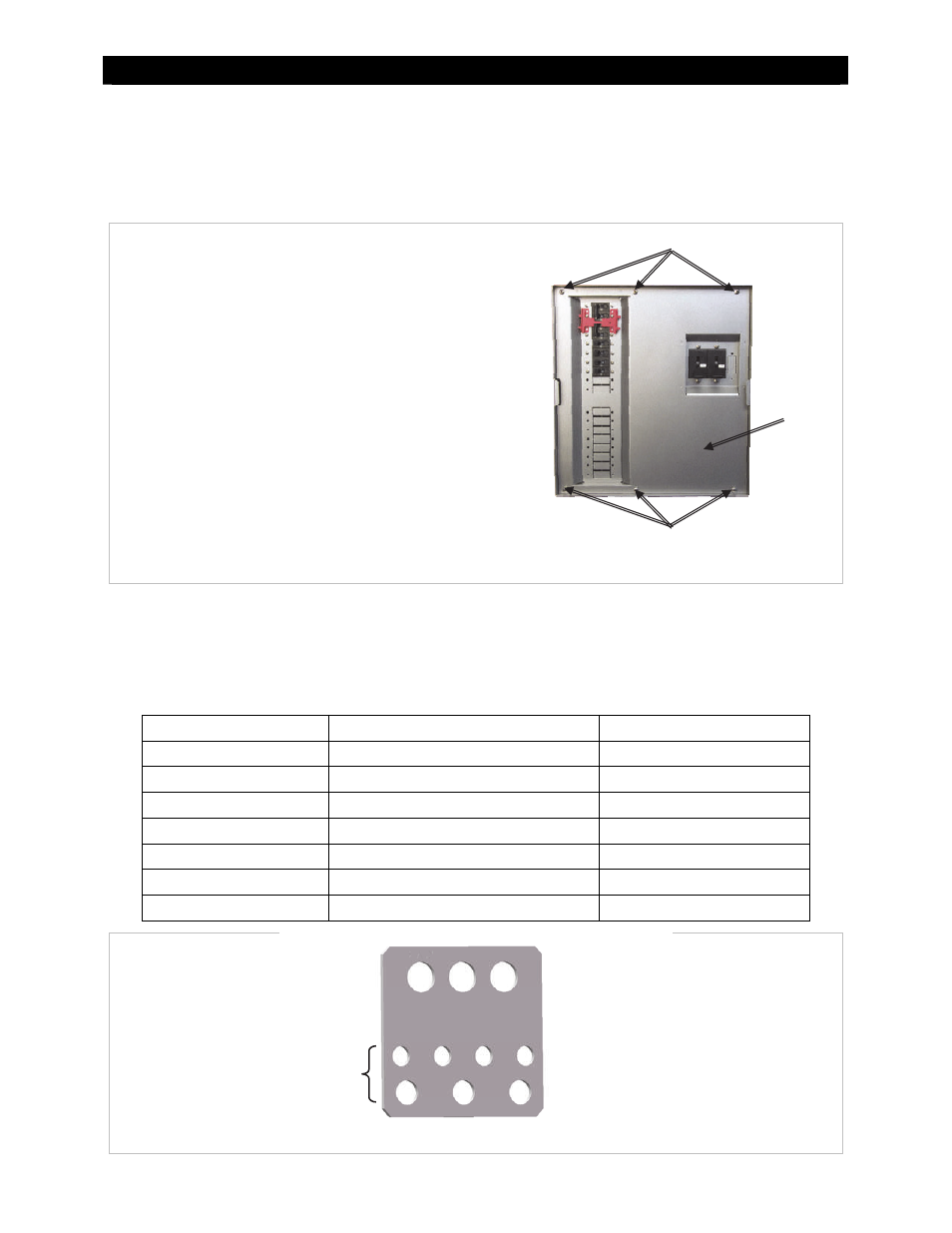

Figure 13

Removing the Interior Cover from the GSLC

Installing the Internal Hardware

Table 1

Bus Bar and Circuit Breaker Size and Torque Requirements

Item

Terminal/Bolt Size

Torque Requirements

Inverter Positive Bus Bars

M8

60 in-lb (6.8 Nm)

Shunt Bolts

3/8"

60 in-lb (6.8 Nm)

DC Positive Cable Plate

Top Holes (x3)

60 in-lb (6.8 Nm)

Bottom Holes (x7)

50 in-lb (5.7 Nm)

Circuit Breaker Studs

M8

20 in-lb (2.3 Nm)

1/4"

35 in-lb (4.0 Nm)

5/16"

50 in-lb (5.7 Nm)

3/8"

225 in-lb (25.5 Nm)

Figure 14

DC Positive Cable Plate

Top Holes

Bottom Holes

0.5" (12.7 mm)

0.31" (8 mm)

0.4" (10 mm)

Remove (x3)

Remove (x3)

Interior

Cover

To Remove the Interior Cover:

1.

Remove the three screws along the top of the
enclosure (with one star washer).

2.

Remove the three screws along the bottom of
the enclosure (with one star washer).

3.

Lift the front cover off the enclosure.
